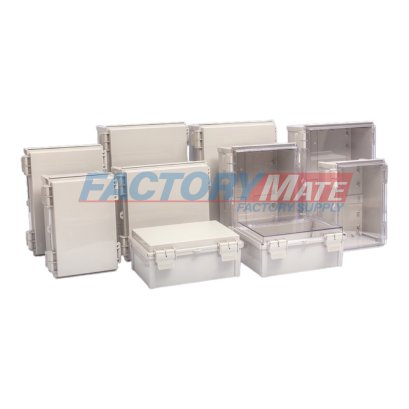

Plastic Enclosure Boxes H-series
คุณสมบัติสินค้า:
BOXCO's non-metallic enclosures are not easy to break even high frequency of opening and closing because of stainless steel hinge and draw latch.
หมวดหมู่ : CABINET-ENCLOSURES-BOXES , ABS-PC Plastic Enclosure , H Series-Medium size ,
1. BOXCO's non-metallic enclosures are not easy to break even high frequency of opening and closing because of stainless steel hinge and draw latch.
2. It is wall mounting enclosure and makes perfect airtightness, preventing sink down when opening or closing by using suitable size of hinge and draw latch in accordance with increasing of enclosure size.
3. Our control boxes can be used in inferior or dangerous industrial field by using strong material and structure.
| Level of dustproof and waterproof | IP 66/67 |
| Impact test | IK 07/08 |
| Temperature range | ABS : - 40 ~ + 70 │ Polycarbonate(PC) : - 40 ~ + 110 |
| Flammability Rating | ABS : 94-HB │ Polycarbonate(PC) : 94-V-0, 5VA, HB |
Size(included cover) | Model | Mounting Plate | |||||
|---|---|---|---|---|---|---|---|
W X L X H (mm) | W X L X H (inch) | ABS | PC | Steel 1.6mm | Plastic 3~4.5mm | ||
Grey cover | Transparent cover | Grey cover | Transparent cover | ||||
200x300x150 | 7.87x11.81x5.91 | BC-AGH-203015 | BC-ATH-203015 | BC-CGH-203015 | BC-CTH-203015 | 2030 S | 2030 P |
200x300x180 | 7.87x11.81x7.09 | BC-AGH-203018 | BC-ATH-203018 | BC-CGH-203018 | BC-CTH-203018 | 2030 S | 2030 P |
225x275x120 | 8.86x10.83x4.72 | BC-AGH-222712 | BC-ATH-222712 | BC-CGH-222712 | BC-CTH-222712 | 2227 S | 2227 P |
250x350x150 | 9.84x13.78x5.91 | BC-AGH-253515 | BC-ATH-253515 | BC-CGH-253515 | BC-CTH-253515 | 2535 S | 2535 P |
275x225x120 | 10.83x8.86x4.72 | BC-AGH-272212 | BC-ATH-272212 | BC-CGH-272212 | BC-CTH-272212 | 2227 S | 2227 P |
300x200x150 | 11.81x7.87x5.91 | BC-AGH-302015 | BC-ATH-302015 | BC-CGH-302015 | BC-CTH-302015 | 2030 S | 2030 P |
300x200x180 | 11.81x7.87x7.09 | BC-AGH-302018 | BC-ATH-302018 | BC-CGH-302018 | BC-CTH-302018 | 2030 S | 2030 P |
300x400x150 | 11.81x15.75x5.91 | BC-AGH-304015 | BC-ATH-304015 | BC-CGH-304015 | BC-CTH-304015 | 3040 S | 3040 P |
300x400x180 | 11.81x15.75x7.09 | BC-AGH-304018 | BC-ATH-304018 | BC-CGH-304018 | BC-CTH-304018 | 3040 S | 3040 P |
350x250x150 | 13.78x9.84x5.91 | BC-AGH-352515 | BC-ATH-352515 | BC-CGH-352515 | BC-CTH-352515 | 2535 S | 2535 P |
350x450x160 | 13.78x17.72x6.30 | BC-AGH-354516 | BC-ATH-354516 | BC-CGH-354516 | BC-CTH-354616 | 3545 S | 3545 P |
350x450x200 | 13.78x17.72x7.87 | BC-AGH-354520 | BC-ATH-354520 | BC-CGH-354520 | BC-CTH-354520 | 3545 S | 3545 P |
400x300x150 | 15.75x11.81x5.91 | BC-AGH-403015 | BC-ATH-403015 | BC-CGH-403015 | BC-CTH-403015 | 3040 S | 3040 P |
400x300x180 | 15.75x11.81x7.09 | BC-AGH-403018 | BC-ATH-403018 | BC-CGH-403018 | BC-CTH-403018 | 3040 S | 3040 P |
400x500x200 | 15.75x19.69x7.87 | BC-AGH-405020 | BC-ATH-405020 | BC-CGH-405020 | BC-CTH-405020 | 4050 S | 4050 P |
400x600x230 | 15.75x23.62x9.06 | BC-AGH-406023 | BC-ATH-406023 | BC-CGH-406023 | BC-CTH-406023 | 4060 S | 4060 P |
450x350x160 | 17.72x13.78x6.30 | BC-AGH-453516 | BC-ATH-453516 | BC-CGH-453516 | BC-CTH-453516 | 3545 S | 3545 P |
450x350x200 | 17.72x13.78x7.87 | BC-AGH-453520 | BC-ATH-453520 | BC-CGH-453520 | BC-CTH-453520 | 3545 S | 3545 P |
500x400x200 | 19.69x15.75x7.87 | BC-AGH-504020 | BC-ATH-504020 | BC-CGH-504020 | BC-CTH-504020 | 4050 S | 4050 P |
600x400x230 | 23.62x15.75x9.06 | BC-AGH-604023 | BC-ATH-604023 | BC-CGH-604023 | BC-CTH-604023 | 4060 S | 4060 P |
