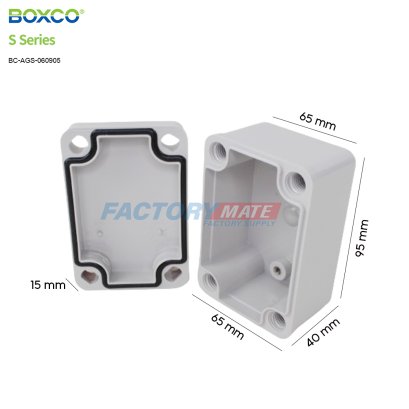

These enclosures have knockouts on both sides so it is easy to punch holes. Our knockouts enclosures are easy to make onsite installation of cable or wirings. This series are made for electrical control box, junction box and many other applications.
หมวดหมู่ : BOXCO ENCLOSURE BOXES ,  Plastic Enclosure ,
แบรนด์ : Boxco
These enclosures have knockouts on both sides so it is easy to punch holes. Our knockouts enclosures are easy to make onsite installation of cable or wirings. This series are made for electrical control box, junction box and many other applications.
Level of dustproof and waterproof | IP 66/67 |
Impact test | IK 07/08 |
Temperature range | ABS : - 40 ~ + 70 │ Polycarbonate(PC) : - 40 ~ + 110 |
Flammability Rating | ABS : 94-HB │ Polycarbonate(PC) : 94-V-0, 5VA, HB |
Size(included cover) | Model | Mounting Plate | |||||
---|---|---|---|---|---|---|---|
W X L X H (mm) | W X L X H (inch) | ABS | PC | Steel 1.6mm | Plastic 3~4.5mm | ||
Grey cover | Transparent cover | Grey cover | Transparent cover | ||||
80x110x70 | 3.15x4.33x2.76 | BC-AGS-081107-K | BC-ATS-081107-K | BC-CGS-081107-K | BC-CTS-081107-K | ||
80x110x85 | 3.15x4.33x3.35 | BC-AGS-081108-K | BC-ATS-081108-K | BC-CGS-081108-K | BC-CTS-081108-K | ||
80x130x70 | 3.15x5.12x2.76 | BC-AGS-081307-K | BC-ATS-081307-K | BC-CGS-081307-K | BC-CTS-081307-K | ||
80x130x85 | 3.15x5.12x3.35 | BC-AGS-081308-K | BC-ATS-081308-K | BC-CGS-081308-K | BC-CTS-081308-K | ||
80x180x70 | 3.15x7.09x2.76 | BC-AGS-081807-K | BC-ATS-081807-K | BC-CGS-081807-K | BC-CTS-081807-K | ||
80x180x85 | 3.15x7.09x3.35 | BC-AGS-081808-K | BC-ATS-081808-K | BC-CGS-081808-K | BC-CTS-081808-K | ||
80x250x70 | 3.15x9.84x2.76 | BC-AGS-082507-K | BC-ATS-082507-K | BC-CGS-082507-K | BC-CTS-082507-K | ||
80x250x85 | 3.15x9.84x3.35 | BC-AGS-082508-K | BC-ATS-082508-K | BC-CGS-082508-K | BC-CTS-082508-K | ||
125x175x75 | 4.92x6.89x2.95 | BC-AGS-121707-K | BC-ATS-121707-K | BC-CGS-121707-K | BC-CTS-121707-K | 1217 S | 1217 P |
125x175x100 | 4.92x6.89x3.94 | BC-AGS-121710-K | BC-ATS-121710-K | BC-CGS-121710-K | BC-CTS-121710-K | 1217 S | 1217 P |
