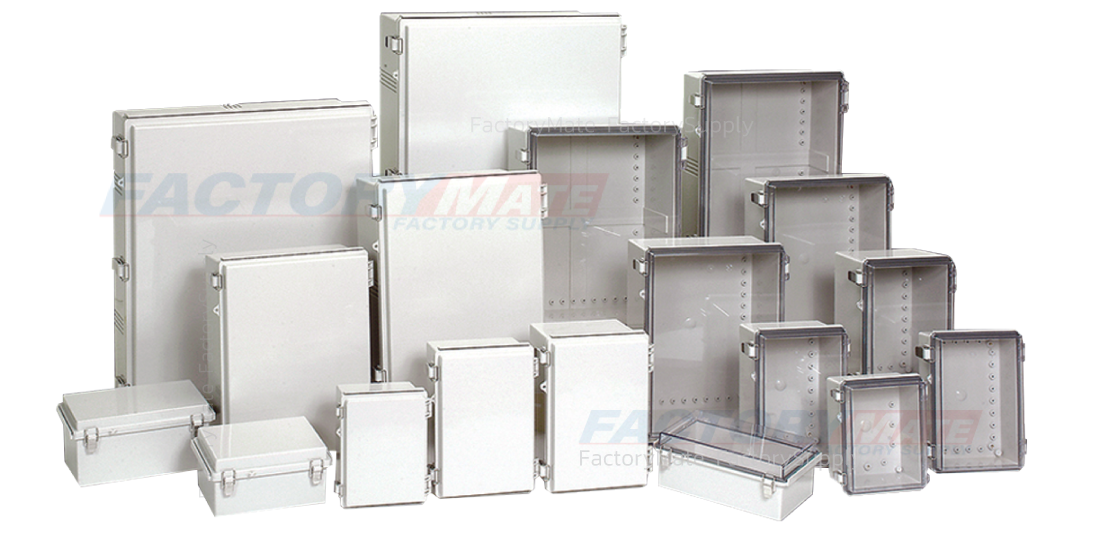

P-Series


1. BOXCO control box is designed to prevent the penetration of rain and dust perfectly as roof is protruded from top and bottom of the base.
2. Our enclosures are easy to separate cover and base so that user can assemble enclosure for machining or printing.
3. Hinge is integrated with enclosure and main parts of draw latch are made of stainless steel to be solid.
4. Hinge connecting pins and draw latch are made of stainless steel and plastic to prevent rust.

Level of dustproof and waterproofIP 66/67
Impact testIK 07/08
Temperature rangeABS : - 40 ~ + 70 Polycarbonate(PC) : - 40 ~ + 110
Flammability RatingABS : 94-HB Polycarbonate(PC) : 94-V-0, 5VA, HB

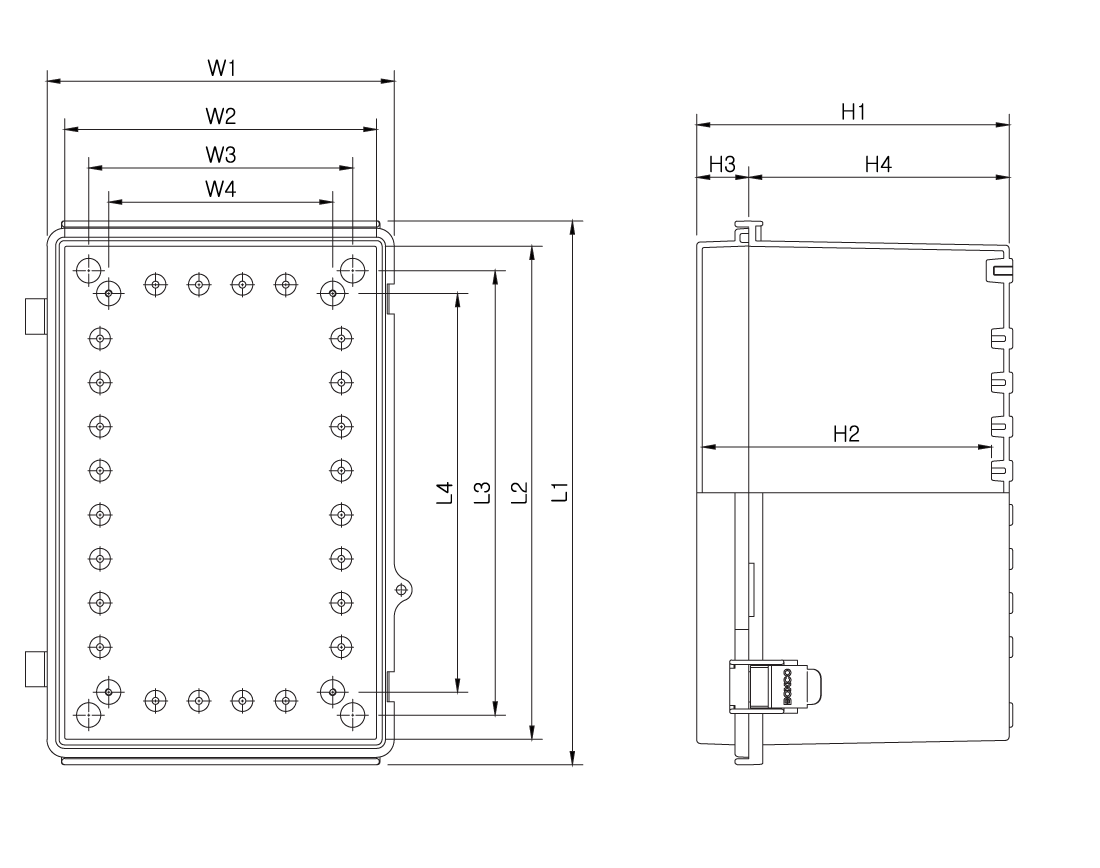

Size(included cover)

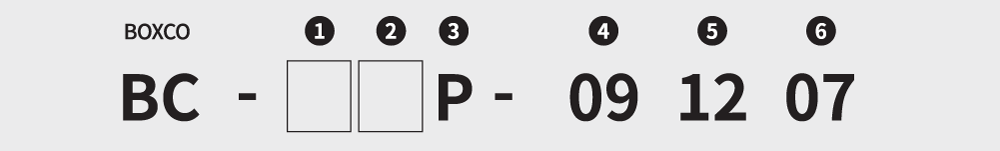

Model
Mounting Plate
W X L X H(mm)
W X L X H(inch)
ABS
PC
Steel
1.6mm
Plastic
3~4.5mm
Grey cover
Transparent cover
Grey cover
Transparent cover
90×120×703.54×4.72×2.76BC-AGP-091207BC-ATP-091207BC-CGP-091207BC-CTP-0912070912 S0912 P
90×120×853.54×4.72×3.35BC-AGP-091208BC-ATP-091208BC-CGP-091208BC-CTP-0912080912 S0912 P
100×150×703.94×5.91×2.76BC-AGP-101507BC-ATP-101507BC-CGP-101507BC-CTP-1015071015 S1015 P
100×150×853.94×5.91×3.35BC-AGP-101508BC-ATP-101508BC-CGP-101508BC-CTP-1015081015 S1015 P
110x210x754.33×8.27×2.95BC-AGP-112107BC-ATP-112107BC-CGP-112107BC-CTP-1121071121 S1121 P
110x210x1004.33×8.27×3.94BC-AGP-112110BC-ATP-112110BC-CGP-112110BC-CTP-1121101121 S1121 P
110x260x754.33×10.24×2.95BC-AGP-112607BC-ATP-112607BC-CGP-112607BC-CTP-1126071126 S1126 P
110x260x1004.33×10.24×3.94BC-AGP-112610BC-ATP-112610BC-CGP-112610BC-CTP-1126101126 S1126 P
135×155x855.12×5.91×3.35BC-AGP-131508BC-ATP-131508BC-CGP-131508BC-CTP-1315081315 S1315 P
135×185x855.12×7.09×3.35BC-AGP-131808BC-ATP-131808BC-CGP-131808BC-CTP-1318081318 S1318 P
135X185x1005.12X7.09 X3.94BC-AGP-131810BC-ATP-131810BC-CGP-131810BC-CTP-1318101318 S1318 P
150×150x905.91×5.91×3.54BC-AGP-151509BC-ATP-151509BC-CGP-151509BC-CTP-1515091515 S1515 P
150x150x1205.91x5.91x4.72BC-AGP-151512BC-ATP-151512BC-CGP-151512BC-CTP-1515121515 S1515 P
160×210×1006.30×8.27×3.94BC-AGP-162110BC-ATP-162110BC-CGP-162110BC-CTP-1621101621 S1621 P
160×210×1306.30×8.27×5.12BC-AGP-162113BC-ATP-162113BC-CGP-162113BC-CTP-1621131621 S1621 P
160×260×1006.30×10.24×3.94BC-AGP-162610BC-ATP-162610BC-CGP-162610BC-CTP-1626101626 S1626 P
160×260×1306.30×10.24×5.12BC-AGP-162613BC-ATP-162613BC-CGP-162613BC-CTP-1626131626 S1626 P
170x220x1056.69x8.66x4.13     1520 P
170×220×1106.69×8.66×4.33BC-AGP-172211BC-ATP-172211BC-CGP-172211BC-CTP-1722111722 S1722 P
170×270×1106.69×10.63×4.33BC-AGP-172711BC-ATP-172711BC-CGP-172711BC-CTP-1727111727 S1727 P
190×280×1007.48×11.02×3.94BC-AGP-192810BC-ATP-192810BC-CGP-192810BC-CTP-1928101928 S1928 P
190×280×1407.48×11.02×5.51BC-AGP-192814BC-ATP-192814BC-CGP-192814BC-CTP-1928141928 S1928 P
200X300X1307.87×11.81×5.12BC-AGP-203013BC-ATP-203013BC-CGP-203013BC-CTP-2030132030 S2030 P
200×300×1507.87×11.81×5.91BC-AGP-203015BC-ATP-203015BC-CGP-203015BC-CTP-2030152030 S2030 P
200×300×1807.87×11.81×7.09BC-AGP-203018BC-ATP-203018BC-CGP-203018BC-CTP-2030182030 S2030 P
210x210x1008.27x8.27x3.94BC-AGP-212110BC-ATP-212110BC-CGP-212110BC-CTP-2121102121 S2121 P
210x210x1308.27x8.27x5.12BC-AGP-212113BC-ATP-212113BC-CGP-212113BC-CTP-2121132121 S2121 P
250×350×1509.84×13.78×5.91BC-AGP-253515BC-ATP-253515BC-CGP-253515BC-CTP-2535152535 S2535 P
250×350×1809.84×13.78×7.09BC-AGP-253518BC-ATP-253518BC-CGP-253518BC-CTP-2535182535 S2535 P
280×280×13011.02×11.02×5.12BC-AGP-282813BC-ATP-282813BC-CGP-282813BC-CTP-2828132828 S2828 P
280×380×13011.02×14.96×5.12BC-AGP-283813BC-ATP-283813BC-CGP-283813BC-CTP-2838132838 S2838 P
300×300×15011.81×11.81×5.91BC-AGP-303015BC-ATP-303015BC-CGP-303015BC-CTP-3030153030 S3030 P
300×300×18011.81×11.81×7.09BC-AGP-303018BC-ATP-303018BC-CGP-303018BC-CTP-3030183030 S3030 P
300×400×12011.81×15.75×4.72BC-AGP-304012BC-ATP-304012BC-CGP-304012BC-CTP-3040123040 S3040 P
300×400×15011.81×15.75×5.91BC-AGP-304015BC-ATP-304015BC-CGP-304015BC-CTP-3040153040 S3040 P
300×400×18011.81×15.75×7.09BC-AGP-304018BC-ATP-304018BC-CGP-304018BC-CTP-3040183040 S3040 P
350×350×15013.78×13.78×5.91BC-AGP-353515BC-ATP-353515BC-CGP-353515BC-CTP-3535153535 S3535 P
350×350×18013.78×13.78×7.09BC-AGP-353518BC-ATP-353518BC-CGP-353518BC-CTP-3535183535 S3535 P
350×450×12013.78×17.72×4.72BC-AGP-354512BC-ATP-354512BC-CGP-354512BC-CTP-3545123545 S3545 P
350×450×16013.78×17.72×6.30BC-AGP-354516BC-ATP-354516BC-CGP-354516BC-CTP-3545163545 S3545 P
350×450×20013.78×17.72×7.87BC-AGP-354520BC-ATP-354520BC-CGP-354520BC-CTP-3545203545 S3545 P
400×500×16015.75×19.69x7.87BC-AGP-405016BC-ATP-405016BC-CGP-405016BC-CTP-4050164050 S4050 P
400×500×20015.75×19.69x7.87BC-AGP-405020BC-ATP-405020BC-CGP-405020BC-CTP-4050204050 S4050 P
400x600x18015.75×23.62×7.09BC-AGP-406018BC-ATP-406018BC-CGP-406018BC-CTP-4060184060 S4060 P
400×600×23015.75×23.62×9.06BC-AGP-406023BC-ATP-406023BC-CGP-406023BC-CTP-4060234060 S4060 P
530×630×18520.87×24.80×7.28BC-AGP-506018BC-ATP-506018BC-CGP-506018BC-CTP-5060185060 S5060 P
530×630×25520.87×24.80×10.04BC-AGP-506025BC-ATP-506025BC-CGP-506025BC-CTP-5060255060 S5060 P
530×730×18520.87×28.74×7.28BC-AGP-507018BC-ATP-507018BC-CGP-507018BC-CTP-5070185070 S5070 P
530×730×25520.87×24.80×10.04BC-AGP-507025BC-ATP-507025BC-CGP-507025BC-CTP-5070255070 S5070 P
630×830×18524.80×32.68×7.28BC-AGP-608018BC-ATP-608018BC-CGP-608018BC-CTP-6080186080 SN/A
630×830×28524.80×32.68×11.22BC-AGP-608028BC-ATP-608028BC-CGP-608028BC-CTP-6080286080 SN/A
810x1010x35031.89x39.76x13.78BC-AGP-8010035BC-ATP-8010035BC-CGP-8010035BC-CTP-8010035
1010x1210x35039.76x47.64x13.78BC-AGP-10012035BC-ATP-10012035BC-CGP-10012035BC-CTP-10012035

Plastic Enclosure Boxes P-series

Plastic Enclosure Boxes P-series

P Series

BOXCO control box ถูกออกแบบมาเพื่อป้องกันการแทรกซึมของฝนและฝุ่นละอองอย่างสมบูรณ์แบบเนื่องจากหลังคายื่นออกมาจากด้านบนและด้านล่างของฐาน,บานพับถูกรวมเข้ากับส่วนหุ้มและส่วนหลักของสลักดึงทำจากสแตนเลสให้เป็นของแข็ง
