Aluminum Box
45x50x32~314x404x181mm
FEATURE
• Screw type,RAL7001
SPECIFICATION
•IP Rating | IP66/67
•IK Rating | IK08 •Certification | TUV,CE
Product model | Mounting plate | |||||
Model | Outside dimension | Inside dimension | Steel | Size(mm) | ||
size (W1xL1xH1/mm) | Cover (H3) | Base (H4) | Size (W2xL2xH2/mm) | |||

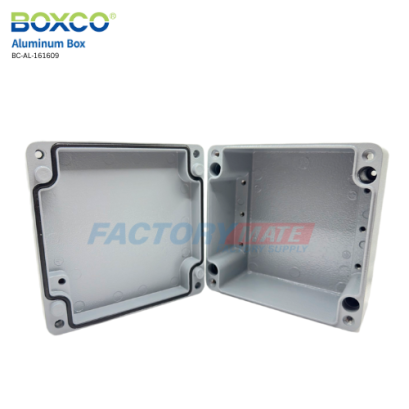

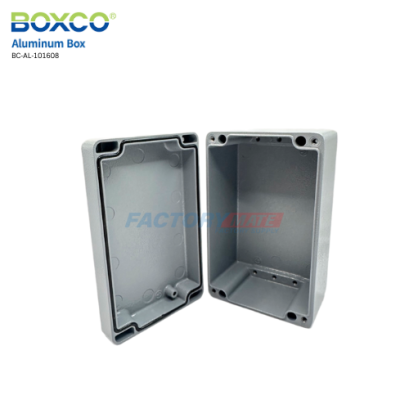

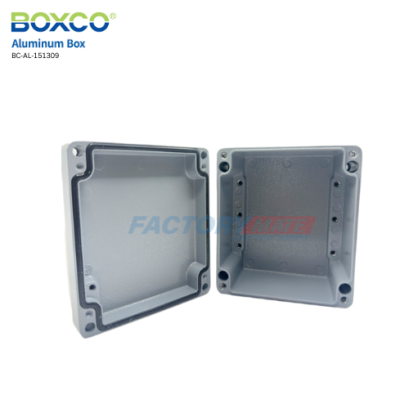

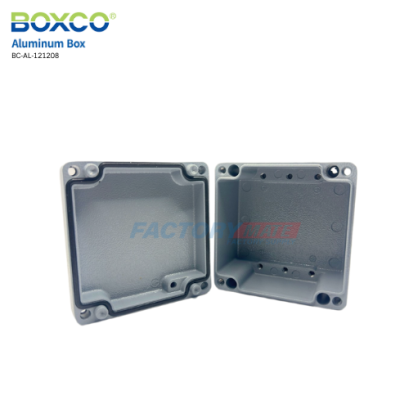

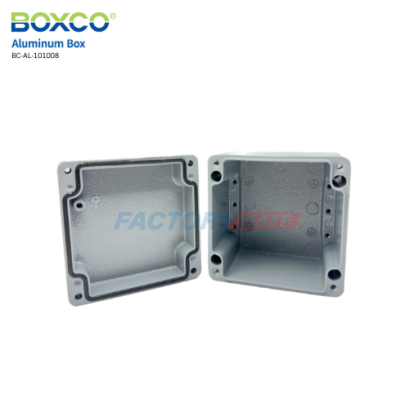

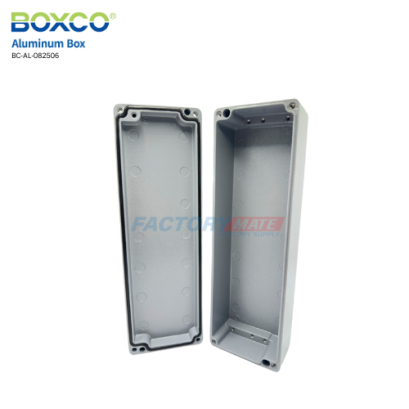

BC-AL-050503 | 45X50X32 | 7 | 25 | 46X41X26.5 | - | - |
BC-AL-060603 | 64X58X34 | 9 | 25 | 58X52X28.5 | - | - |
BC-AL-060605 | 64X58X46 | 9 | 37 | 58X52X40.5 | - | - |
BC-AL-061003 | 64X98X34 | 9 | 25 | 92X58X28.5 | - | - |
BC-AL-061005 | 64X98X46 | 9 | 37 | 92X58X40.5 | - | - |
BC-AL-061503 | 64X150X34 | 9 | 25 | 144X58X28.5 | - | - |
BC-AL-061505 | 64X150X46 | 9 | 37 | 144X58X40.5 | - | - |
BC-AL-080806 | 80X75X57 | 15 | 42 | 72X67X49 | 0808A | 69X64 |
BC-AL-080807 | 80X75X70 | 15 | 55 | 72X67X62 | 0808A | 69X64 |
BC-AL-081306 | 80X125X57 | 15 | 42 | 117X72X50 | 0813A | 114X69 |
BC-AL-081307 | 80X125X70 | 15 | 55 | 117X72X63 | 0813A | 114X69 |
BC-AL-081806 | 80X175X57 | 15 | 42 | 167X72X50.5 | 0818A | 164X69 |
BC-AL-081807 | 80X175X70 | 15 | 55 | 167X72X63 | 0818A | 164X69 |
BC-AL-082506 | 80X250X57 | 15 | 42 | 240X70X50 | 0825A | 239X69 |
BC-AL-082507 | 80X250X70 | 15 | 55 | 240X70X63 | 0825A | 239X69 |
BC-AL-101008 | 100X100X81 | 20 | 61 | 91X91X74 | 1010A | 88X88 |
BC-AL-101608 | 100X160X81 | 20 | 61 | 151X91X74 | 1016A | 148X88.5 |
BC-AL-121208 | 120X122X81 | 20 | 61 | 113X111X74 | 1212A | 109X107 |
BC-AL-122208 | 120X220X81 | 20 | 61 | 211X111X74 | 1222A | 208X107 |
BC-AL-122209 | 120X220X91 | 30 | 61 | 211X111X82 | 1222A | 208X107 |
BC-AL-123608 | 120X360X81 | 20 | 61 | 351X111X72 | 1236A | 347X107 |
BC-AL-151309 | 150X132X90 | 20 | 71 | 141X123X82 | 1513A | 135X118 |
BC-AL-161609 | 160X160X91 | 20 | 71 | 151X151X82 | 1616A | 145X144 |
BC-AL-162110 | 160X210X100 | 20 | 80 | 200X150X92 | 1621A | 193X143 |
BC-AL-162609 | 160X260X91 | 20 | 71 | 251X151X82 | 1626A | 243X143 |
BC-AL-163609 | 160X360X91 | 20 | 71 | 349X149X23 | 1636A | 343X143 |
BC-AL-181810 | 180X180X101 | 30 | 71 | 171X171X92 | 1818A | 167X167 |
BC-AL-232011 | 230X200X111 | 20 | 91 | 220X190X102 | 2320A | 213X184 |
BC-AL-232018 | 230X200X180 | 20 | 160 | 222X192X167 | 2320A | 213X184 |
BC-AL-232811 | 230X280X111 | 20 | 91 | 270X220X102 | 2328A | 265X213 |
BC-AL-233311 | 230X330X111 | 20 | 91 | 320X220X102 | 2333A | 314X213 |
BC-AL-314011 | 313X404X111 | 20 | 91 | 394X303X102 | 3140A | 385X292 |
BC-AL-314018 | 313X404X181 | 20 | 161 | 394X303X167 | 3140A | 385X292 |
