A2M 0909.01
คุณสมบัติสินค้า:

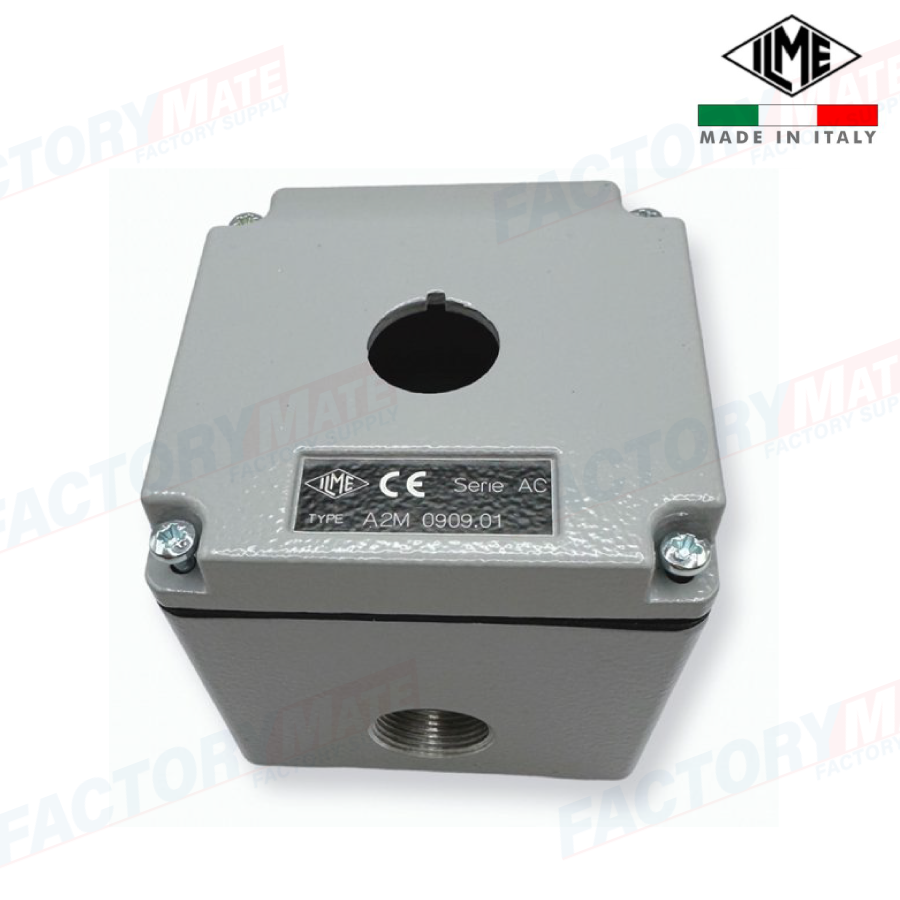

Box for control devices and signals, AC series, M25 cable entry, 1 hole for unit Ø 22 mm, external dimensions 92x92x86 mm
หมวดหมู่ : CONNECTORS , ILME Multipole Connectors ,
แบรนด์ : I.L.M.E.
Share
| Product description | |
| Product type | Box for control devices and signals |
| Series | AC |
| Size | External dimensions 92x92x86 mm |
| Specification | M25 cable entry 1 hole for unit ⌀ 22 mm |
| Technical Data | |
| IP degree of protection | IP65 |
| Further technical details | |
| Weight | 470,00 g |
| Operating temperature range (min, max) | -20℃…+80℃ |
| Material properties | |
| Main material | Aluminium die-cast |
| Other material | Gasket: NBR Screws: galvanized steel |
| Colour | RAL 7040 grey |
| SCIP number | A4d990c2-7936-4d11-a722- eb8d5d39ca82 |
| General ordering information | |
| EAN13 code | 8015747173858 |
| Packaging Information | |
| Packaging weight | 6,00 kg |
| Packaging volume | 11,02 dm3 |
| Packaging description | Carton box |
| Packaging quantity | 12 Pcs |
| Packaging EAN code | 8015747092647 |
