APV 9
คุณสมบัติสินค้า:
ILME Aluminium Box for control devices and signals, painted distribution box, AP Series, External Size 100x100x59 mm.
หมวดหมู่ : CABINET-ENCLOSURES-BOXES , Aluminium Enclosures , Aluminium Box AP-Series ,
แบรนด์ : ILME
Share

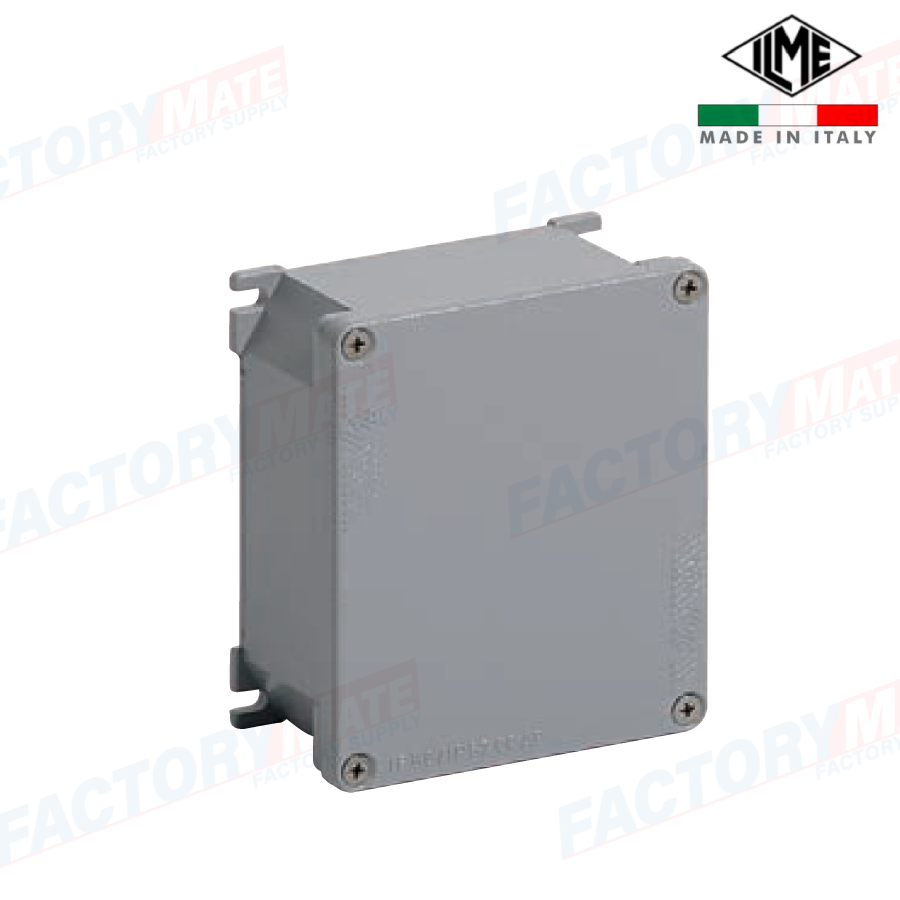

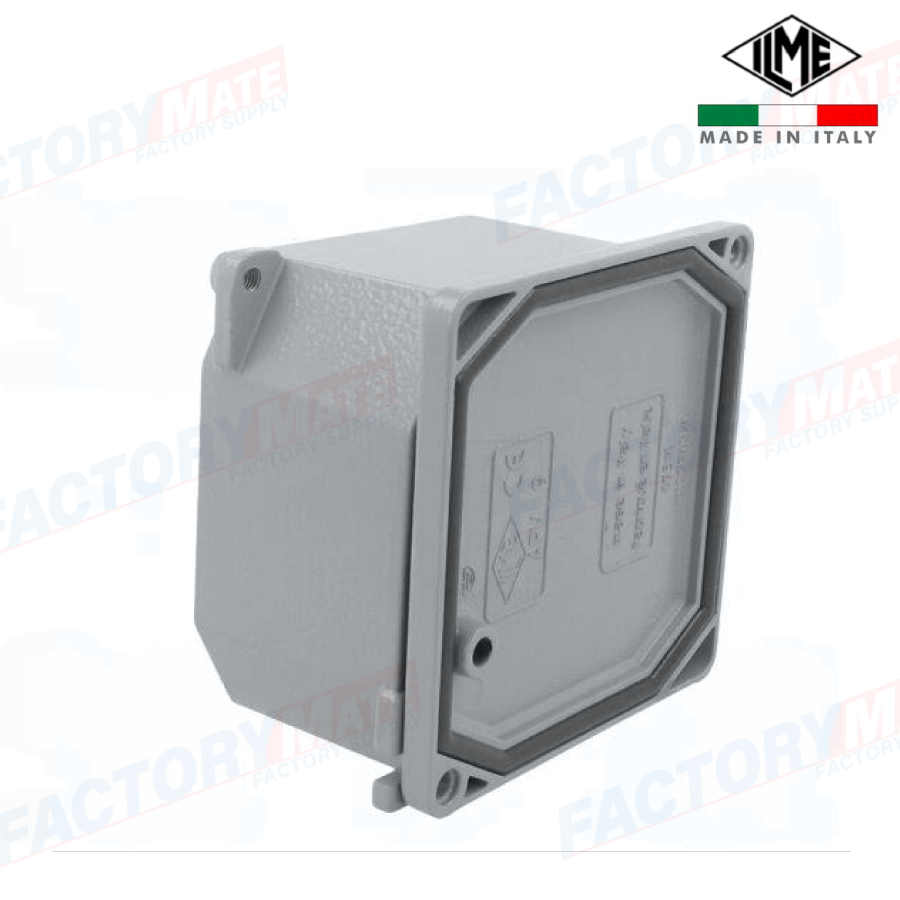

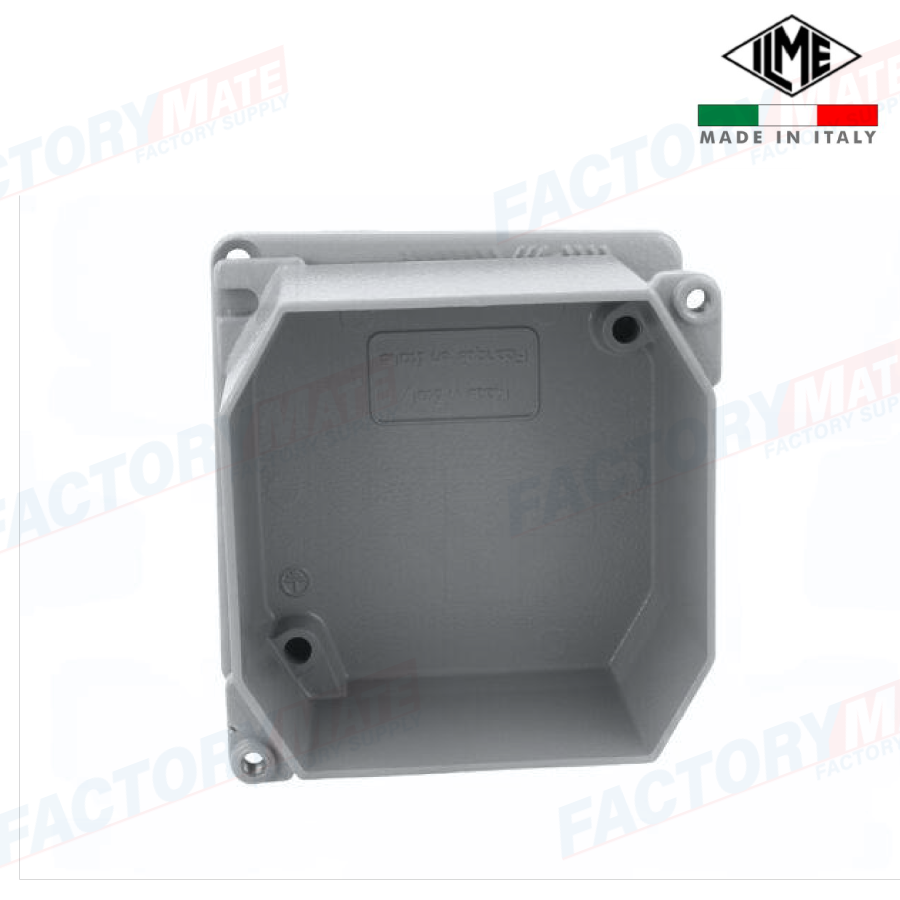

APV 9 ILME Multipurpose Aluminium Enclosure Box
The AP series of containing boxes has now been further expanded and improved. A new system of gaskets ensures an even higher protection rating (IP66/IP67) whilst the new galvanized steel captive cross-headed screws ensure easier installation. The range consists of 7 formats supplied in the RAL 7040 textured version (APV) in the unpainted version (APS) and in the new APW version suitable for environments with extreme temperatures or salt environments (black).
Feature :
- Boxes and covers in die-cast aluminium alloy
- galvanized steel screws for fixing cover
- pre-applied anti-ageing gaskets
- IP66/IP67 degree of protection (compliant with EN 60529)
- temperature range: from
- 40 °C to +110 °C
- oven painted with RAL 7040 grey epoxy-polyester powder
- accessories for boxes on page 7
- supplied complete with brass insert, screw, wire terminal and washer for 6 mm2 earth terminals
- an earth terminal may be added to the cover (APR T kit)- o-rings to make cover screws captive, included
| Product description | |
| Product type | Box for control devices and signals |
| Series | AP |
| Size | external dimensions 100x100x59 mm / internal dimensions 88x88x44 mm |
| Technical Data | |
| IP degree of protection | IP66/IP67 |
| Further technical details | |
| Weight | 265,00 g |
| Operating temperature range (min, max) | -40°C...+110°C |
| Material properties | |
| Main material | Aluminium die-cast |
| Other material | Gasket: Polyurethane (PUR) Screws: galvanized steel |
| Colour | RAL 7040 grey |
| SCIP number | a4d990c2-7936-4d11-a722-eb8d5d39ca82 |
| General ordering information | |
| China RoHs - EFUP | 50 |
| REACH SVHC substances | Yes Lead |
| EAN13 code | 8015747001892 |
| Packaging EAN code | 8015747092647 |
