AP 2320
คุณสมบัติสินค้า:

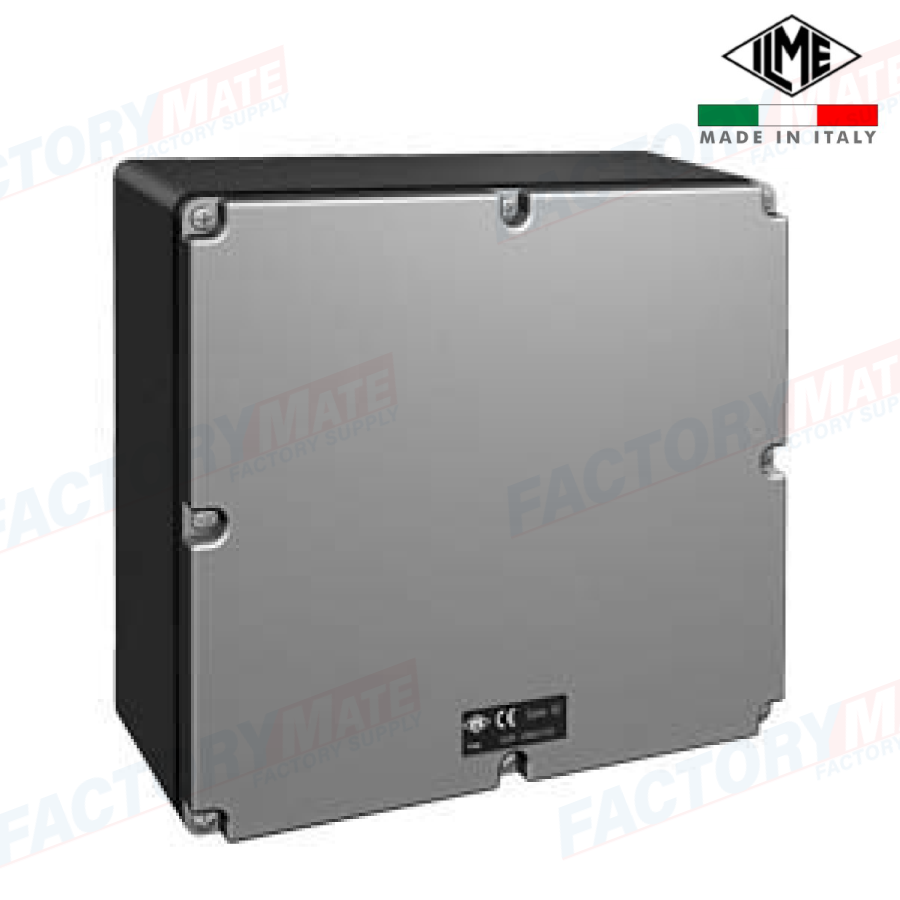

ILME Aluminium Box for control devices and signals, AC series, Without cable entry, Without holes, External Size 230x205x102mm.
หมวดหมู่ : CABINET-ENCLOSURES-BOXES , Aluminium Enclosures , Aluminium Box AC-Series ,
แบรนด์ : ILME
Share
AP 2320 ILME Aluminium Box for control devices and signals, AC series
The AC series of containing boxes has now been produced with metric threaded cable entries. To ensure the same protection degree, when assembling the boxes, the cable glands or other accessories used must also have an equivalent or higher protection degree. The boxes are manufactured in compliance with the following standard: IEC 60670-1.
Feature :
- boxes and covers in die-cast aluminium alloy
- oven painted with RAL 7040 grey epoxy-polyester powder
- removable cover, fixed with zinc plated steel screws
- NBR special rubber gasket fixed to the cover
- IP65 degree of protection (compliant with EN 60529)
- temperature range: -20 °C... +80 °C
| Product description | |
| Product type | Box for control devices and signals |
| Series | AC |
| Size | External dimensions 230x205x102 mm |
| Specification | Without cable entry Without holes |
| Technical Data | |
| IP degree of protection | IP66/IP67 |
| Further technical details | |
| Weight | 1.780,00 g |
| Operating temperature range (min, max) | -20°C...+80°C |
| Material properties | |
| Main material | Aluminium die-cast |
| Other material | Gasket: Rubber NBR Screws: galvanized stee |
| Colour | RAL 7040 grey |
| SCIP number | a4d990c2-7936-4d11-a722-eb8d5d39ca82 |
| General ordering information | |
| China RoHs - EFUP | 50 |
| REACH SVHC substances | Yes Lead |
| EAN13 code | 8015747001496 |
