A2P 0915.04
คุณสมบัติสินค้า:

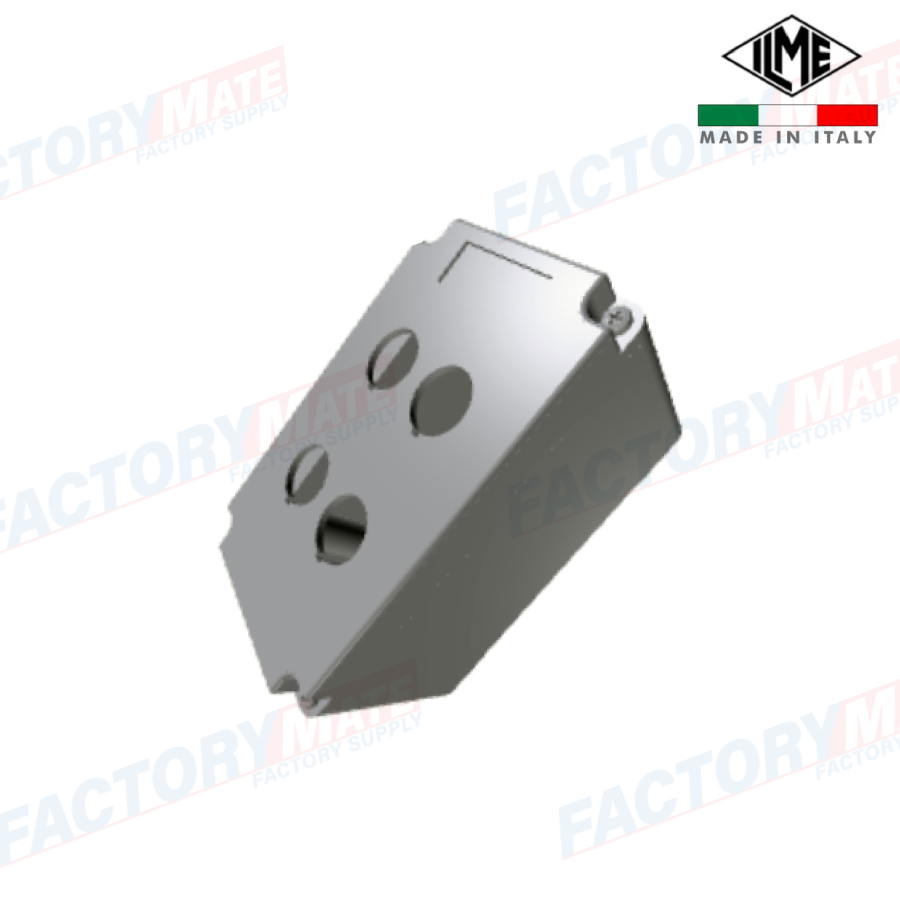

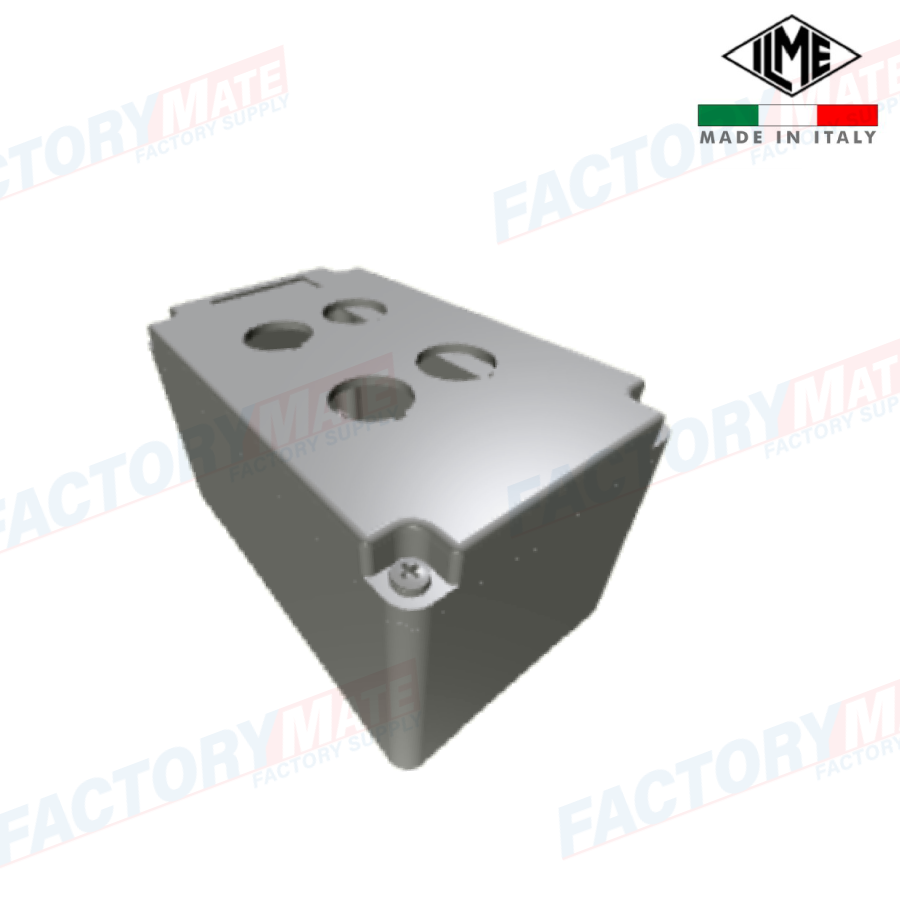

Box for control devices and signals, AC series, without cable entry, 4 holes for unit Ø 22 mm, External Size 92x152x86 mm.
หมวดหมู่ : CABINET-ENCLOSURES-BOXES , Push Button Boxes , Aluminium Push Button Box AC-Series ,
แบรนด์ : ILME
Share
A2P 0915.04 AC series Distribution boxes and boxes for control devices and signals
The AC series of containing boxes has now been produced with metric threaded cable entries. To ensure the same protection degree, when assembling the boxes, the cable glands or other accessories used must also have an equivalent or higher protection degree. The boxes are manufactured in compliance with the following standard: IEC 60670-1.
Feature :
- boxes and covers in die-cast aluminium alloy
- oven painted with RAL 7040 grey epoxy-polyester powder
- removable cover, fixed with zinc plated steel screws
- NBR special rubber gasket fixed to the cover
- IP65 degree of protection (compliant with EN 60529)
- temperature range: -20 °C... +80 °C
| Product description | |
| Product type | Box for control devices and signals |
| Series | AC |
| Size | External dimensions 92x152x86 mm |
| Specification | Without cable entry 4 holes for unit Ø 22 mm |
| Technical Data | |
| IP degree of protection | IP65 |
| Further technical details | |
| Weight | 650,00 g |
| Operating temperature range (min, max) | -20℃…+80℃ |
| Material properties | |
| Main material | Aluminium die-cast |
| Other material | Gasket: NBR Screws: galvanized steel |
| Colour | RAL 7040 grey |
| SCIP number | a4d990c2-7936-4d11-a722-eb8d5d39ca82 |
| General ordering information | |
| RoHs conformity | Compliant with exemption 6(c): copper alloy containing up to 4% lead by weight |
| China RoHs - EFUP | 50 |
| REACH SVHC substances | Yes Lead |
| EAN13 code | 8015747000307 |
