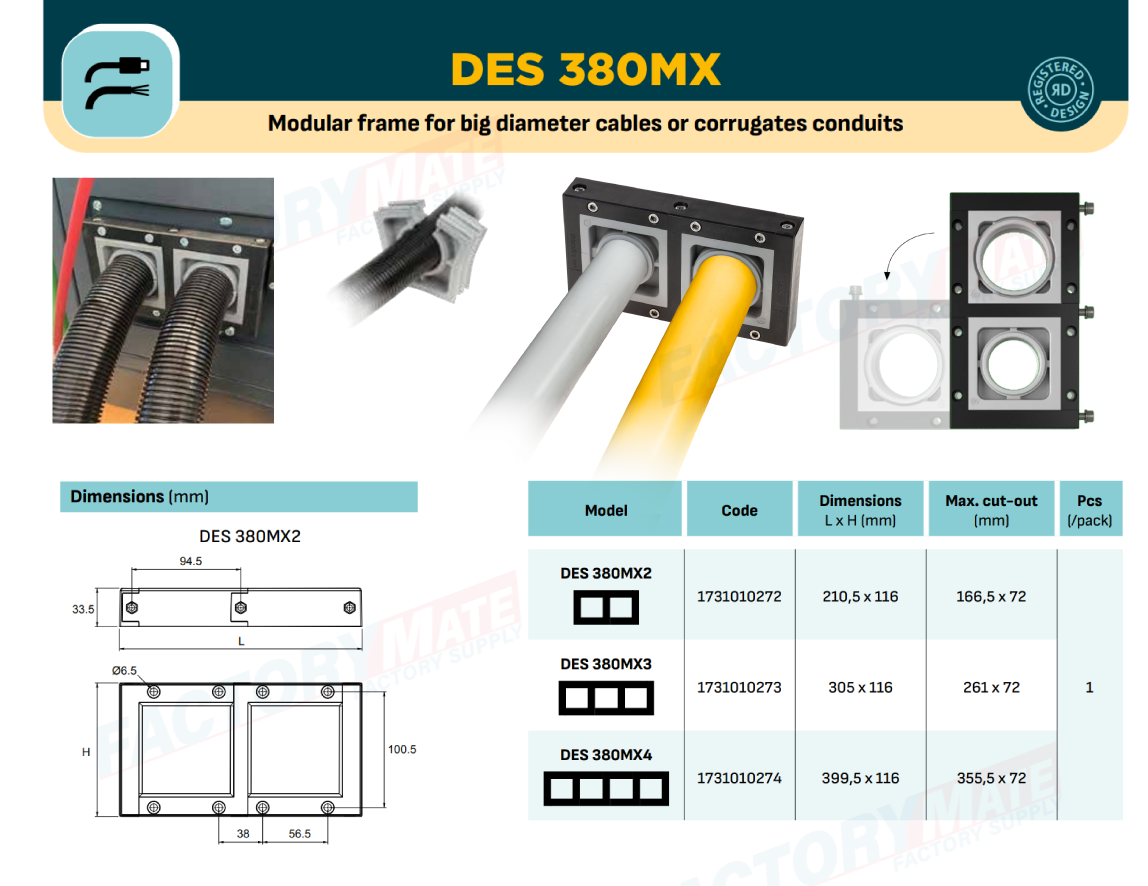

DES 380MX
Modular frames for big diameter cables or corrugates tubes
The divisible 380MX frames are intended for routing large‑diameter cables through panel or equipment walls, while providing mechanical and fluid sealing.
The solution is modular meaning that the customer can buy the 4 frames solution for using them for 4 or less cables. Then he can add an accessory and increase easily the number of cables limitless.
Features
- Fast and easy fixing of big diameter cables and corrugated pipes
- Modular system
- Diameters from 36 to 65 mm
- Horizontal or vertical installation
- IP54
- No gasket required
- AISI 304 screws
- halogen-free, silicone-free,flame class V0 both colors, comply with ASTM IRM 903 , UL 157
Material: PP+GF
Flammability: self-extinguishing according to UL94-V0
Temperature: -40°C... +155°C (static)
Compatible Grommets
 SPH |
Fastening of the grommet strip to the board or panel is done with screws or rivets. Upon request, we supply screws for fastening, again made of stainless steel but with a black geomet finish. Alternatively, you can use the "Snap" quick coupler for greater mounting flexibility.
