SPH

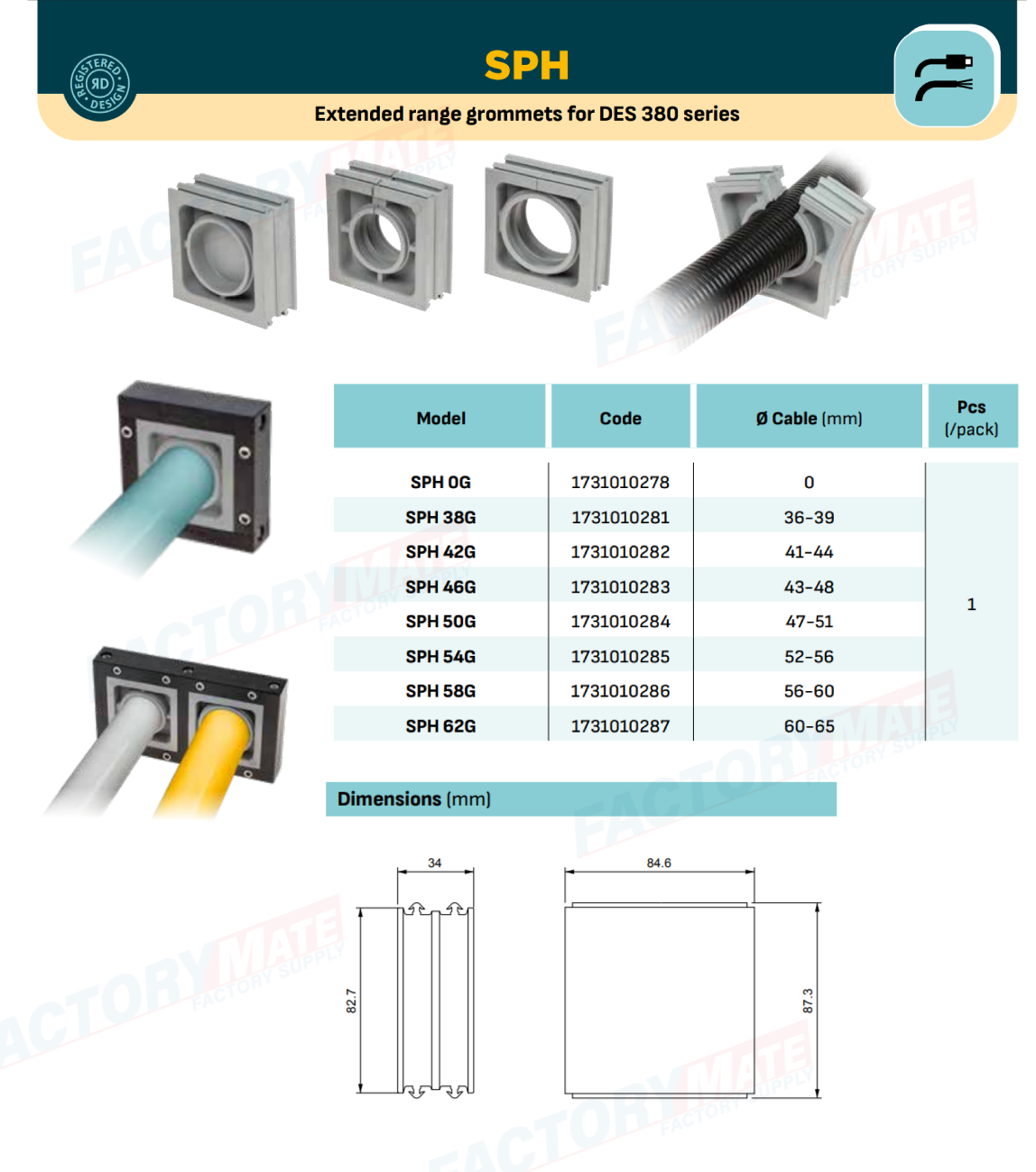

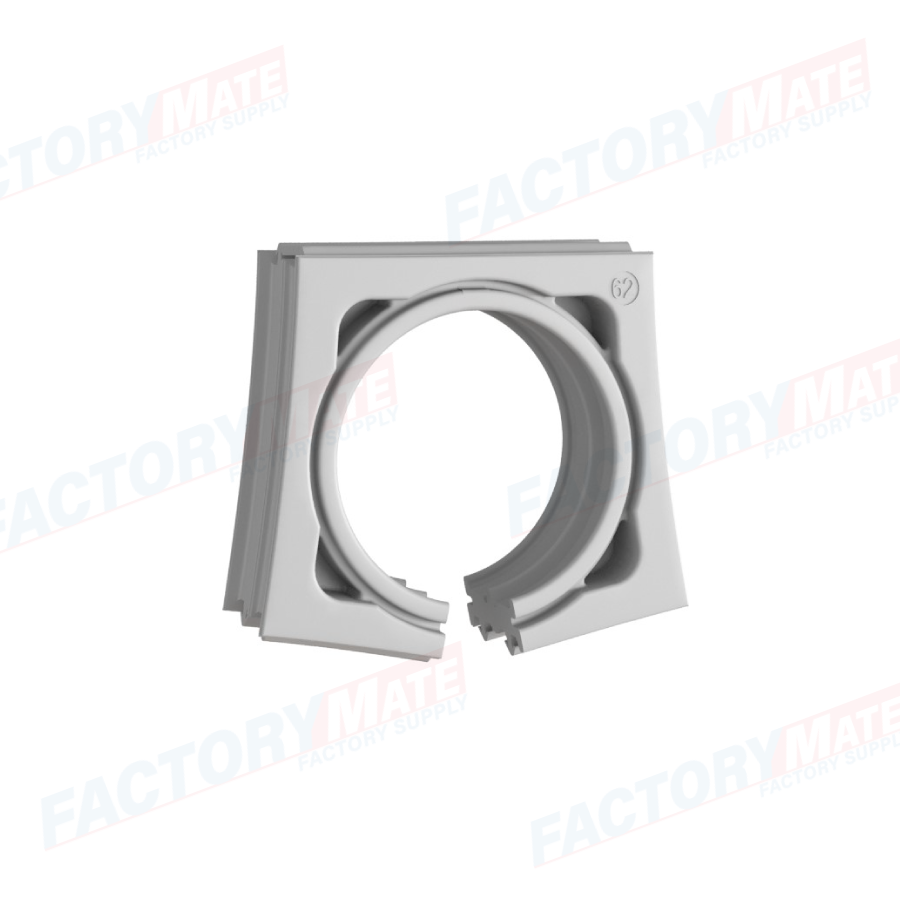

Cable grommets for DES 380 frames

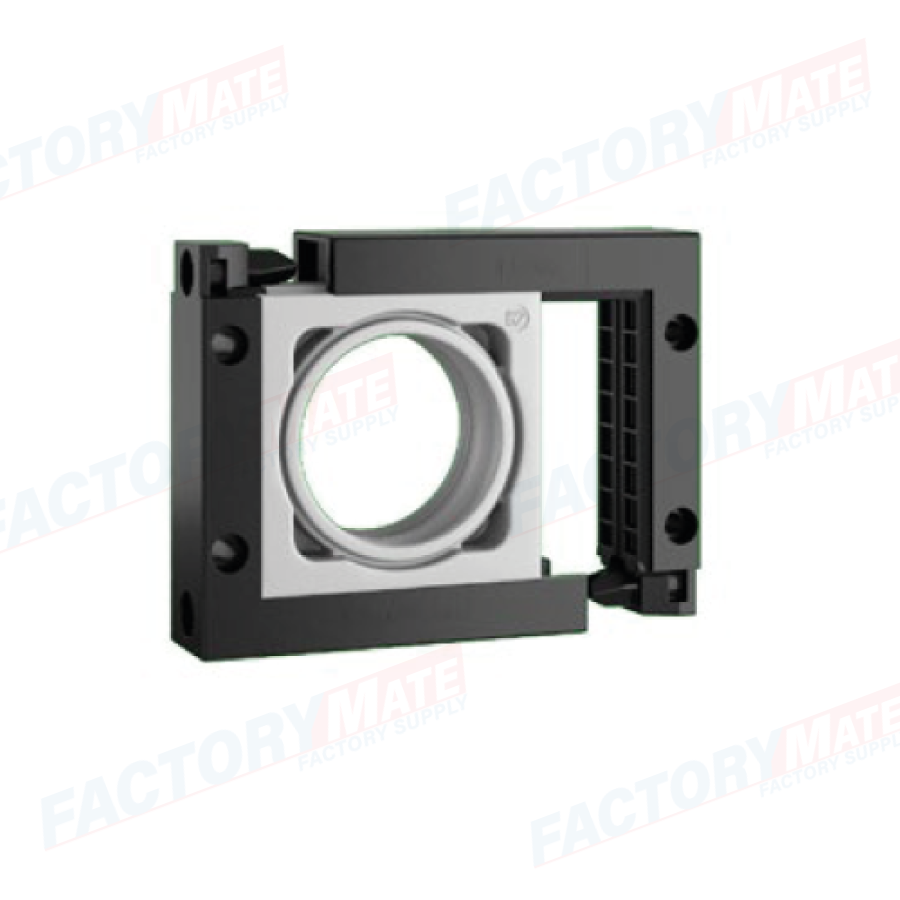

SPH series grommets allow casbles with diameters between 36 and 65 mm to be routed inside the DES 380M and and DES 380MX series splitable frames.
Features
- Grommets for cables or corrugated conduits.
- Diameters from 36 to 65 mm
- UL94-V0
- IP54
- halogen-free, silicone-free,flame class V0 both colors, comply with ASTM IRM 903 , UL 157
Material: TPE
Flammability: self-extinguishing according to UL94-V0 (grey or black)
Temperature: -40°C... +110°C (static)
Compatible Grommets
 SPH |
Fastening of the grommet strip to the board or panel is done with screws or rivets. Upon request, we supply screws for fastening, again made of stainless steel but with a black geomet finish. Alternatively, you can use the "Snap" quick coupler for greater mounting flexibility.
