DAKO SAFETY KEY INTERLOCK SWITCH (Upright plastic key)
หมวดหมู่ : SAFETY SWITCH , Limit Switch, Micro Switch ,
แบรนด์ : DAKO
Share

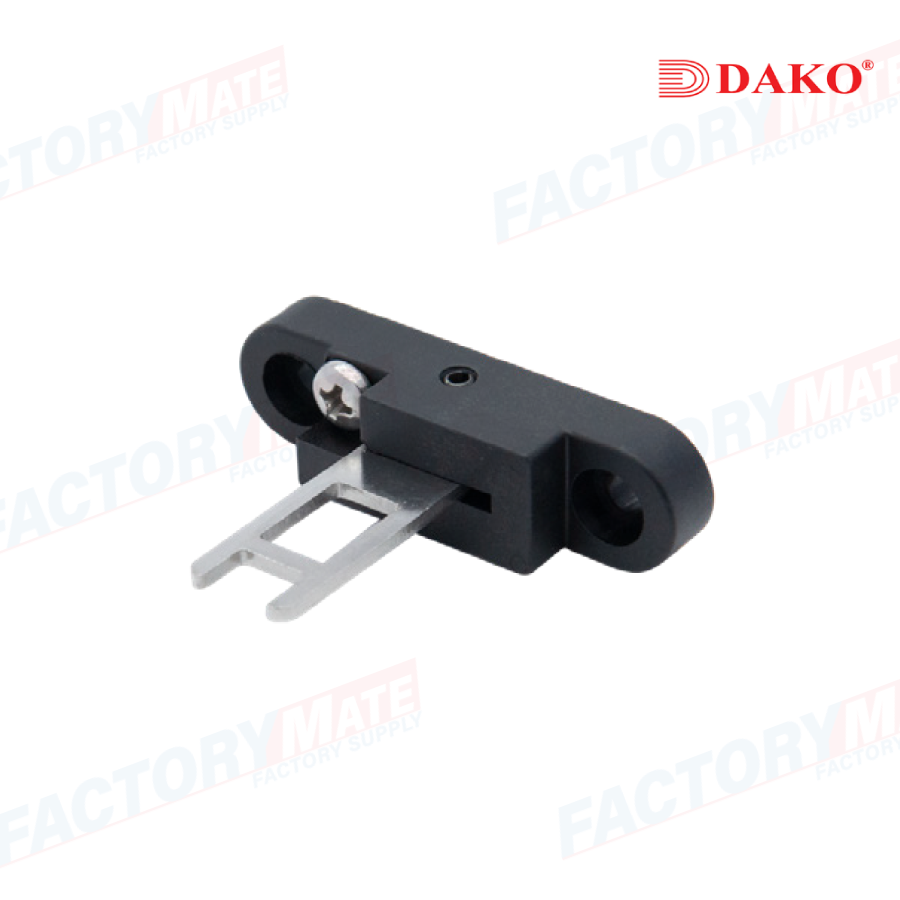

DAKO CZ93-K3 KEY
DAKO SAFETY KEY INTERLOCK SWITCH (Upright plastic key)
CHARACTERISTICS
OPERATION SPEED: 3A 240VAC (A300)
OPERATING SPEED: 0.1m ~0.5m/s
OPERATING FREQUENCUY: 30 operations/minute
CONTACT RESISTANCE: 25mΩ max (initial)
INSULATION RESISTANCE: 100mΩ min. min. (at500VDC)
VIBRATION: 10-55HZ, 1.5mm double amplitude
OPERATION TEMPERATURE : -10~+70 ํC (with no icing)
HUMIDITY: < 95% RH
LIFE SPAN : Mechanical: 10,000,000 operations/min.
Electrical: 150,000 operations/min.
| MODEL | ลักษณะหน้าสัมผัสทำงาน | RATED CURRENT / VOLTAGE | CONTACT TYPE | TERMINAL TYPE |
| CZ-93BPG | Safety key interlock switch | 10A / 250V | 1NO 1NC | SCREW TYPE |
| CZ-93CPG | Safety key interlock switch | 10A / 250V | 2NC | |
| CZ93-K1 | Flat metal key | - | - | - |
| CZ93-K2 | Upright metal key | - | - | - |
| CZ93-K3 | Upright plastic key | - | - | - |
