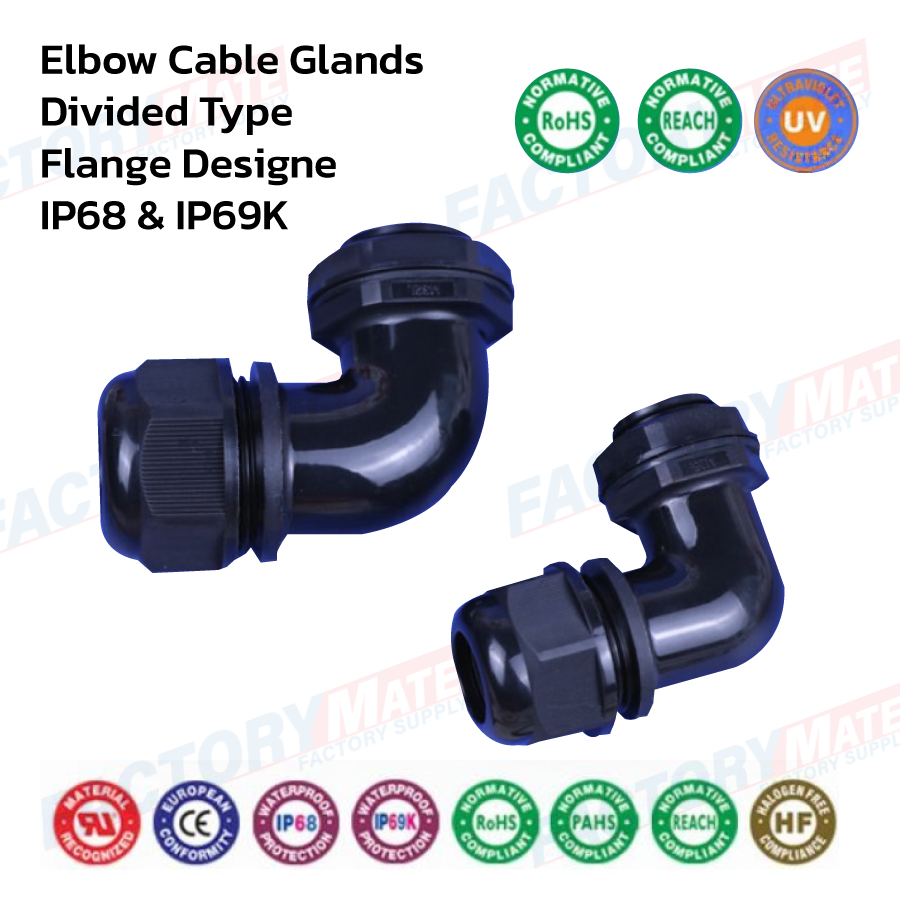

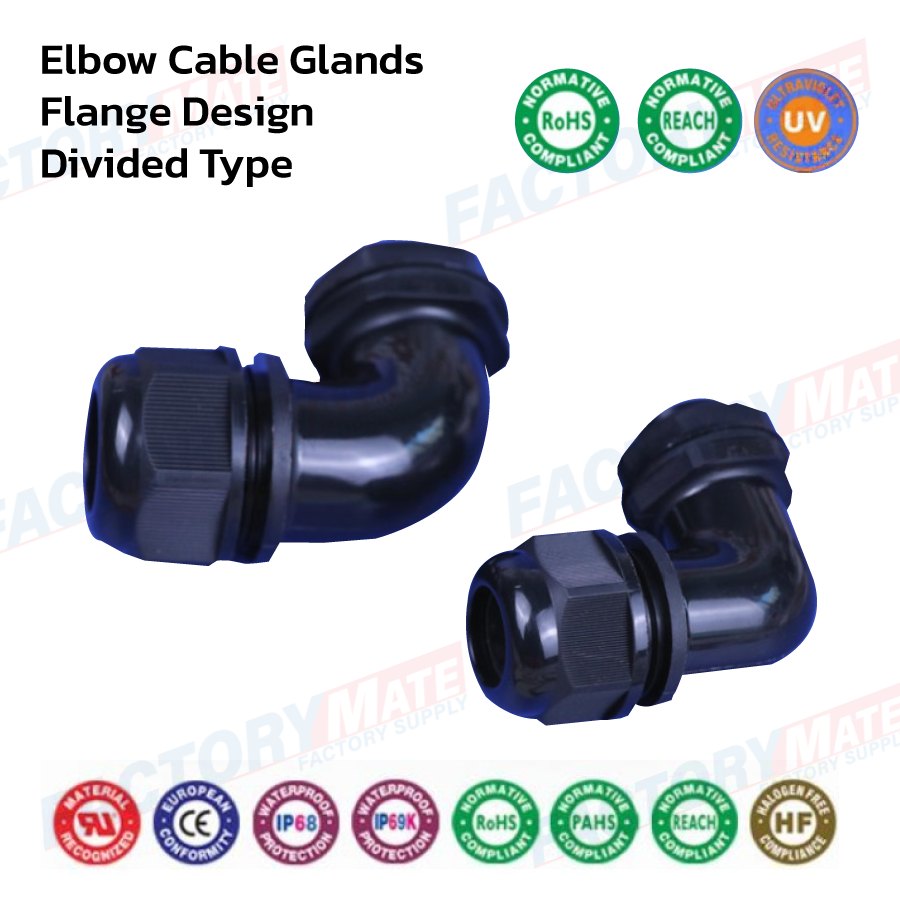

Divided Type Right Angle (90° Elbow) Hermetic Metric Cable Glands IP68 with Locknuts & Flat Gaskets
หมวดหมู่ : CABLE GLAND , Plastic Cable Gland ,
Share
Divided Type Right Angle (90° Elbow) Hermetic Metric Cable Glands IP68 with Locknuts & Flat Gaskets
Product Description
Divided Type Right Angle (90° Elbow) Hermetic Metric Cable Glands IP68 are designed to protect cables from bending, breakage and environmental damage while providing a reliable waterproof seal. The 90-degree elbow design allows cables to be routed in confined spaces, making them ideal for electrical enclosures and equipment where limited installation space is available.
Available Sizes: M16×1.5, M20×1.5, M25×1.5, M32×1.5, M40×1.5

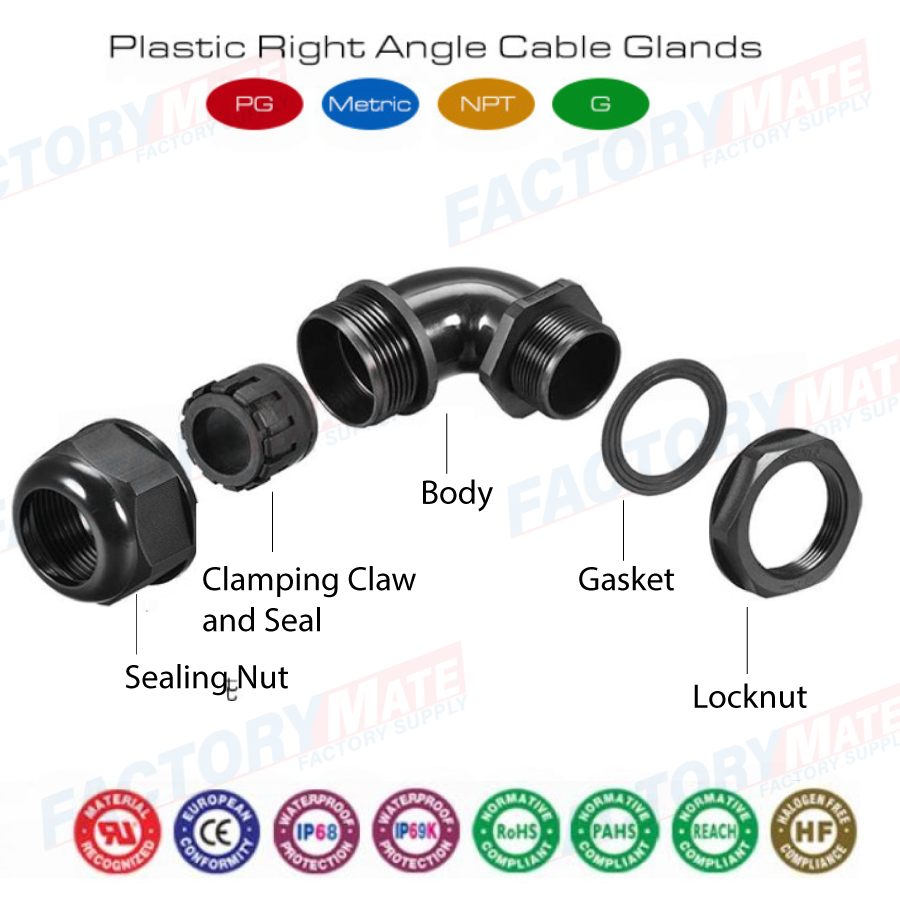

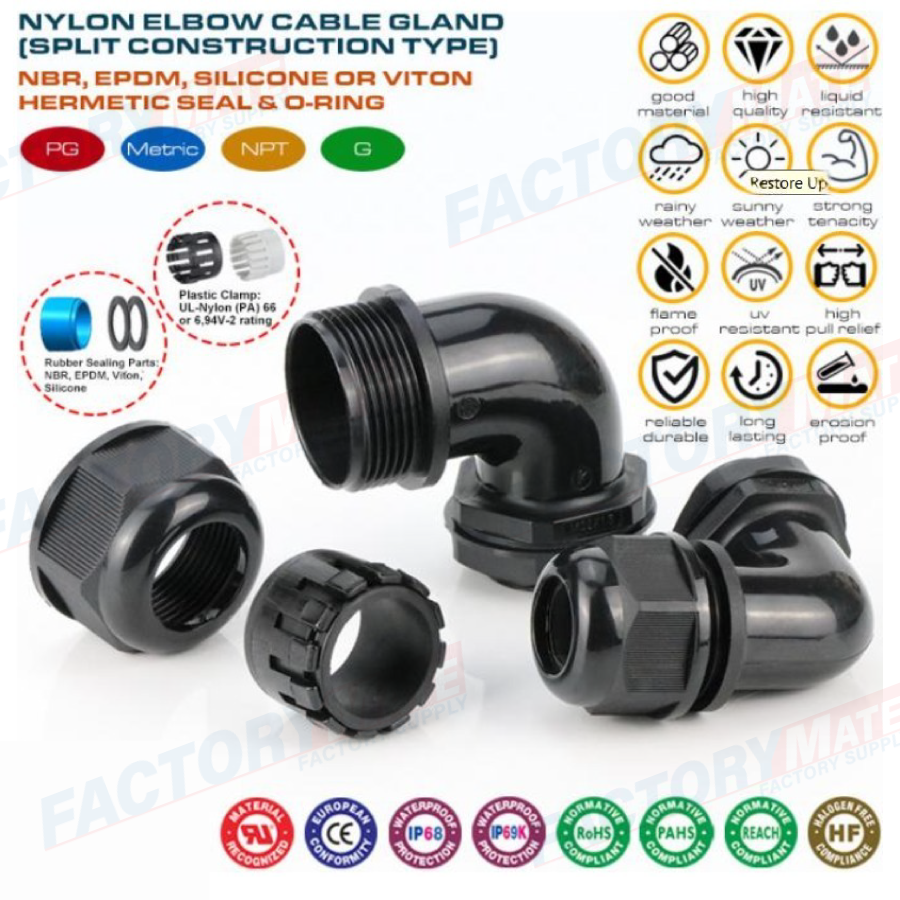

Raw Materials:
UL-approved Polyamide 66 (Flammability UL94 V-2) for Body, Locknut and Sealing Nut
Weatherproof EPDM Rubber for Seal and Gasket
UL94 V-0 material available upon request
Standard Colors:
Light Grey (RAL7035)
Black (RAL9005)
Thread Type: Metric Thread
Protection Rating: IP68 Waterproof
Certifications: CE, ROHS, REACH, SGS, IP68
Operating Temperature:
Static: -40°C to +100°C
Short-term: +120°C
Dynamic: 20°C to +80°C
Short-term: +100°C
Thread | Cable Range (mm) | C1 (mm) | Panel Mounting Hole (mm) | C2 (mm) | Spanner A/F (mm) | |
|---|---|---|---|---|---|---|
Min. | Max. | |||||
M16×1.5 | 4 | 7 | 16 | 16.2 | 10 | 22/22 |
M16x1.5 | 6 | 10 | 16 | 16.2 | 10 | 22/22 |
M20×1.5 | 6 | 11 | 20 | 20.2 | 15 | 27/27 |
M20x1.5 | 9 | 14 | 20 | 20.2 | 15 | 27/27 |
M25×1.5 | 10 | 16 | 25 | 25.2 | 15 | 33/33 |
M25×1.5 | 13 | 18 | 25 | 25.2 | 15 | 33/33 |
M32×1.5 | 15 | 22 | 32 | 32.2 | 15 | 41/42 |
M32×1.5 | 18 | 25 | 32 | 32.2 | 15 | 41/42 |
M40×1.5 | 20 | 26 | 40 | 40.2 | 20 | 50/52 |
M40×1.5 | 24 | 31 | 40 | 40.2 | 20 | 50/52 |
