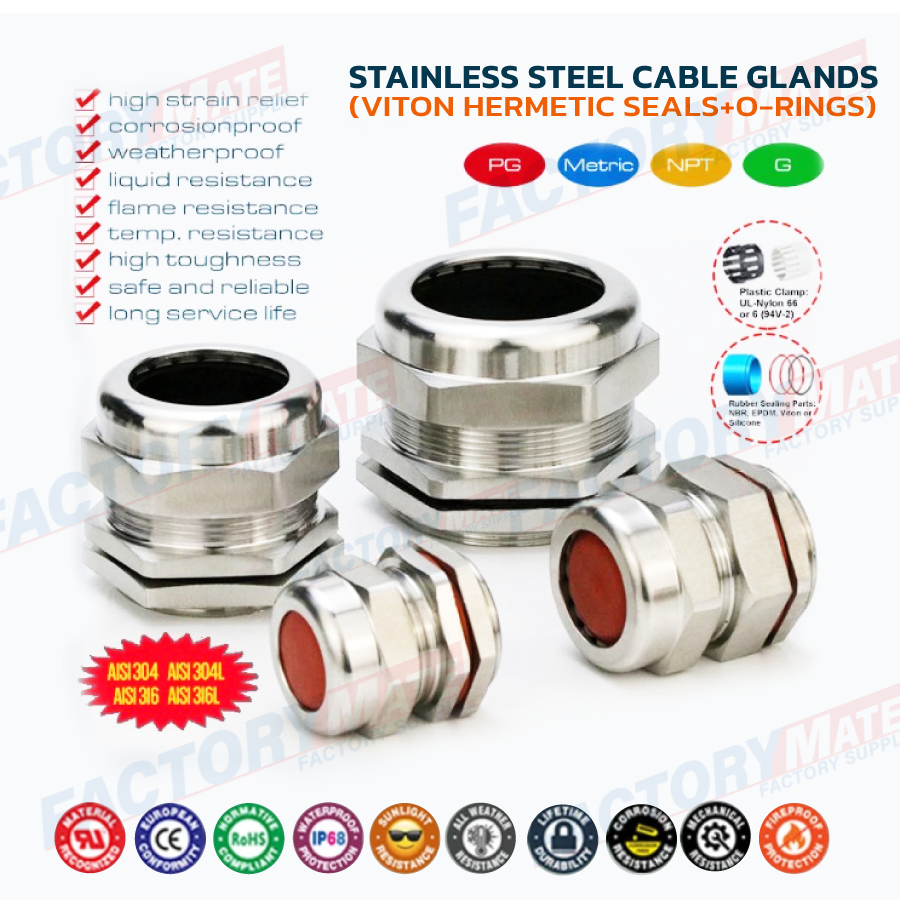

IP68 Watertight PG Cable Glands Stainless Steel Inox 304, 316, 316L with Viton Fluororubber Seals & O-rings
Product Description
The IP68 Watertight PG Cable Glands Stainless Steel Inox 304, 316, 316L with Viton Fluororubber Seals & O-rings are high-performance cable entry fittings designed to provide reliable waterproof sealing, cable retention, strain relief, and mechanical protection for electrical and electronic equipment.
Series : PG Series
Cable Diameter: 4-8 mm
Material: Stainless Steel AISI 304 / 304L / 316 / 316L
Seal Material: Viton® / FPM Fluororubber
Insert Material : UL-Certified Polyamide 66
Surface Finish : Polishing
Color: Metallic Silver
Thread Standard: DIN 40430
Protection Rating: IP68
Working Temperature: -20°C to +260°C
Certifications: CE / RoHS / REACH
Thread | Cable Range (mm) | AG (mm) | Panel Mounting Hole (mm) | GL (mm) | H (mm) | Spanner (mm) | |
|---|---|---|---|---|---|---|---|
Min. | Max. | ||||||
| PG7 | 3 | 6.5 | 12.5 | 12.5-12.8 | 7 | 19 | 14 |
| PG7 | 4 | 8 | 12.5 | 12.5-12.8 | 8 | 20 | 18 |
| PG9 | 4 | 8 | 15.2 | 15.2-15.5 | 8 | 20 | 18 |
| PG9 | 5 | 10 | 15.2 | 15.2-15.5 | 8 | 21 | 20 |
| PG11 | 5 | 10 | 18.6 | 18.6-18.9 | 8 | 21 | 20 |
| PG13.5 | 6 | 12 | 20.4 | 20.4-20.7 | 8 | 22 | 22 |
| PG13.5 | 10 | 14 | 20.4 | 20.4-20.7 | 8 | 23 | 24 |
| PG16 | 10 | 14 | 22.5 | 22.5-22.8 | 9 | 23 | 24 |
| PG21 | 13 | 18 | 28.3 | 28.3-28.6 | 9 | 26 | 30 |
| PG21 | 9 | 16 | 28.3 | 28.3-28.6 | 9 | 26 | 30 |
| PG29 | 18 | 25 | 37 | 37-37.3 | 10 | 30 | 40 |
| PG29 | 13 | 20 | 37 | 37-37.3 | 10 | 30 | 40 |
| PG36 | 25 | 33 | 47 | 47-47.3 | 11 | 35 | 50 |
| PG36 | 20 | 26 | 47 | 47-47.3 | 11 | 35 | 50 |
| PG42 | 32 | 38 | 54 | 54-54.3 | 12 | 38 | 55 |
| PG42 | 25 | 31 | 54 | 54-54.3 | 12 | 38 | 55 |
| PG48 | 37 | 44 | 59.3 | 59.3-59.6 | 13 | 41 | 65 |
