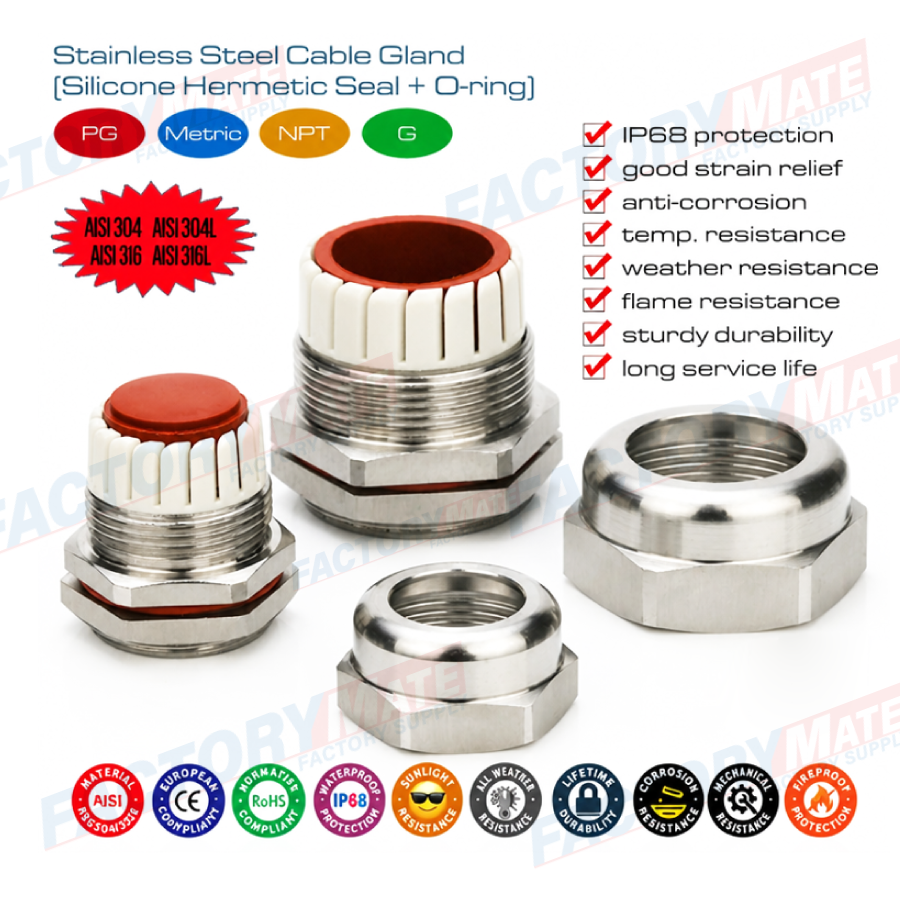

40mm Stainless Steel IP68 Cable Gland 304, 316, 316L M40x1.5 Thread with Silicone Seals for Cable O.D. 22-32mm
Product Description
40mm Stainless Steel IP68 Cable Gland 304, 316, 316L M40x1.5 Thread with Silicone Seals for Cable O.D. 22-32mm is made in non-magnetic stainless steel material type AISI304, AISI316 or AISI 316L and is available with Metric connecting thread.
Model: M40×1.5
Material: Stainless Steel Type 304, 304L, 316 Or 316L
Seal & O-ring: Silicone rubber
Plastic Insert: UL-Certified PA66
Surface Treatment: Polishing
Color: Metallic Silver
Thread Standard: According to EN 60423
Protection Rating: IP68 (when the cable diameter is within the clamping range and assemble the O-ring)
Working Temperature: Normal use: -20℃ to 260℃.
Certifications: CE, RoHS, SGS, IP68
Thread | Cable Range (mm) | AG (mm) | Panel Mounting Hole (mm) | GL (mm) | H (mm) | Spanner (mm) | |
|---|---|---|---|---|---|---|---|
Min. | Max. | ||||||
| M12x1.5 | 3 | 6.5 | 12 | 12-12.3 | 7 | 19 | 14 |
| M12x1.5 | 4 | 8 | 12 | 12-12.3 | 8 | 19 | 18 |
| M14x1.5 | 4 | 8 | 14 | 14-14.3 | 8 | 20 | 18 |
| M16x1.5 | 4 | 8 | 16 | 16-16.3 | 8 | 20 | 18 |
| M16x1.5 | 5 | 10 | 16 | 16-16.3 | 8 | 21 | 20 |
| M18x1.5 | 5 | 10 | 18 | 18-18.3 | 8 | 21 | 20 |
| M20x1.5 | 6 | 12 | 20 | 20-20.3 | 8 | 22 | 22 |
| M20x1.5 | 10 | 14 | 20 | 20-20.3 | 8 | 23 | 24 |
| M22x1.5 | 10 | 14 | 22 | 22-22.3 | 9 | 23 | 24 |
| M24x1.5 | 10 | 14 | 24 | 24-24.3 | 9 | 25 | 27 |
| M25x1.5 | 10 | 14 | 25 | 25-25.3 | 9 | 25 | 27 |
| M25x1.5 | 10 | 16 | 25 | 25-25.3 | 9 | 25 | 30 |
| M25x1.5 | 13 | 18 | 25 | 25-25.3 | 9 | 25 | 30 |
| M27x1.5 | 13 | 18 | 27 | 27-27.3 | 9 | 25 | 30 |
| M28x1.5 | 13 | 18 | 28 | 28-28.3 | 9 | 26 | 32 |
| M30x1.5 | 13 | 18 | 30 | 30-30.3 | 9 | 26 | 32 |
| M32x1.5 | 15 | 22 | 32 | 32-32.3 | 10 | 27 | 36 |
| M33x1.5 | 15 | 22 | 33 | 33-33.3 | 10 | 27 | 36 |
| M36x1.5 | 18 | 25 | 36 | 36-36.3 | 10 | 30 | 40 |
| M37x1.5 | 18 | 25 | 37 | 37-37.3 | 10 | 30 | 40 |
| M40x1.5 | 18 | 25 | 40 | 40-40.3 | 11 | 32 | 45 |
| M42x1.5 | 22 | 30 | 42 | 42-42.3 | 11 | 32 | 45 |
| M47x1.5 | 25 | 33 | 47 | 47-47.3 | 11 | 35 | 50 |
| M48x1.5 | 25 | 33 | 48 | 48-48.3 | 11 | 35 | 50/52 |
| M50x1.5 | 32 | 38 | 50 | 50-50.3 | 12 | 37 | 55 |
| M54x1.5 | 32 | 38 | 54 | 54-54.3 | 12 | 38 | 57 |
| M56x1.5 | 32 | 38 | 56 | 56-56.3 | 12 | 38 | 55/60 |
| M60x1.5 | 37 | 44 | 60 | 60-60.3 | 13 | 40 | 65 |
| M63x1.5 | 37 | 44 | 63 | 63-63.3 | 13 | 40 | 65/66 |
| M64x2 | 37 | 44 | 64 | 64-64.3 | 13 | 40 | 65/66 |
| M72x2 | 42 | 52 | 72 | 72-72.3 | 15 | 42 | 75 |
| M80x.15 | 55 | 62 | 80 | 80-80.3 | 15 | 45 | 85 |
| M88x2 | 65 | 70 | 88 | 88-88.3 | 15 | 47 | 95 |
| M100x2 | 78 | 84 | 100 | 100-100.3 | 15 | 55 | 110 |
