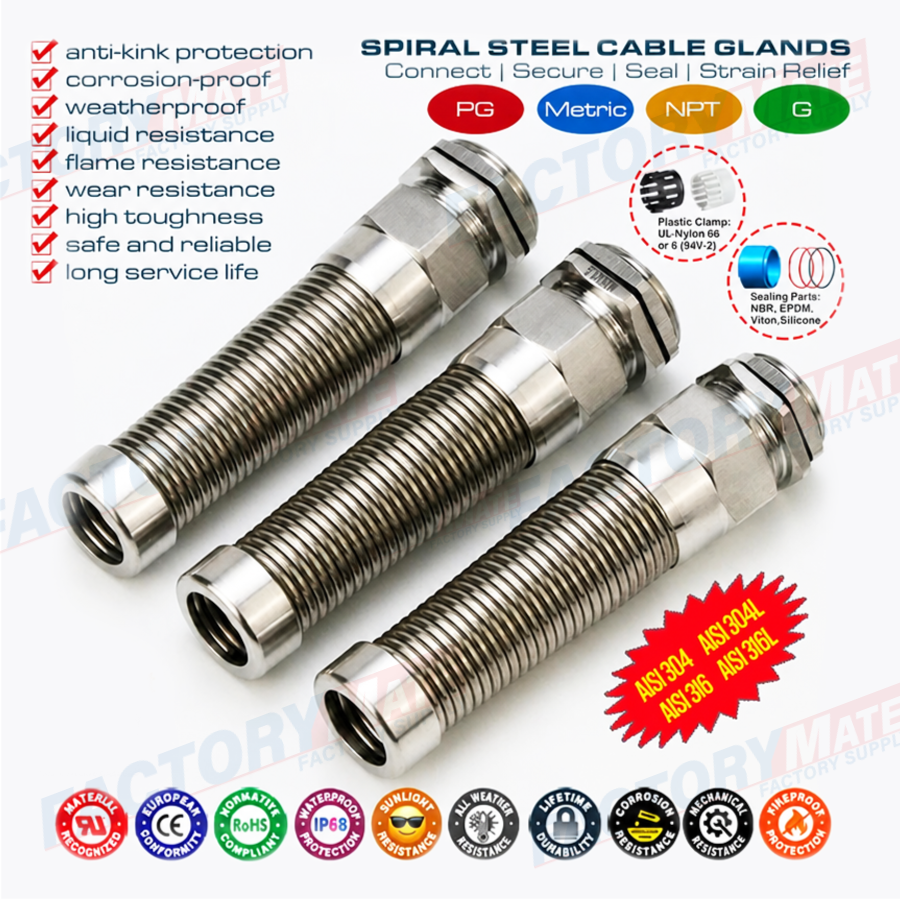

Metal PG Flexible Cable Gland (IP68) with Additional Spiral Strain Relief, can prevent cables from excessive bending and breakage
หมวดหมู่ : CABLE GLAND , Stainless Steel Cable Gland ,
Share
AISI 316L, AISI 316, AISI 304 Stainless Steel Metal PG Flexible Cable Gland (IP68) with Additional Spiral Strain Relief
Product Description

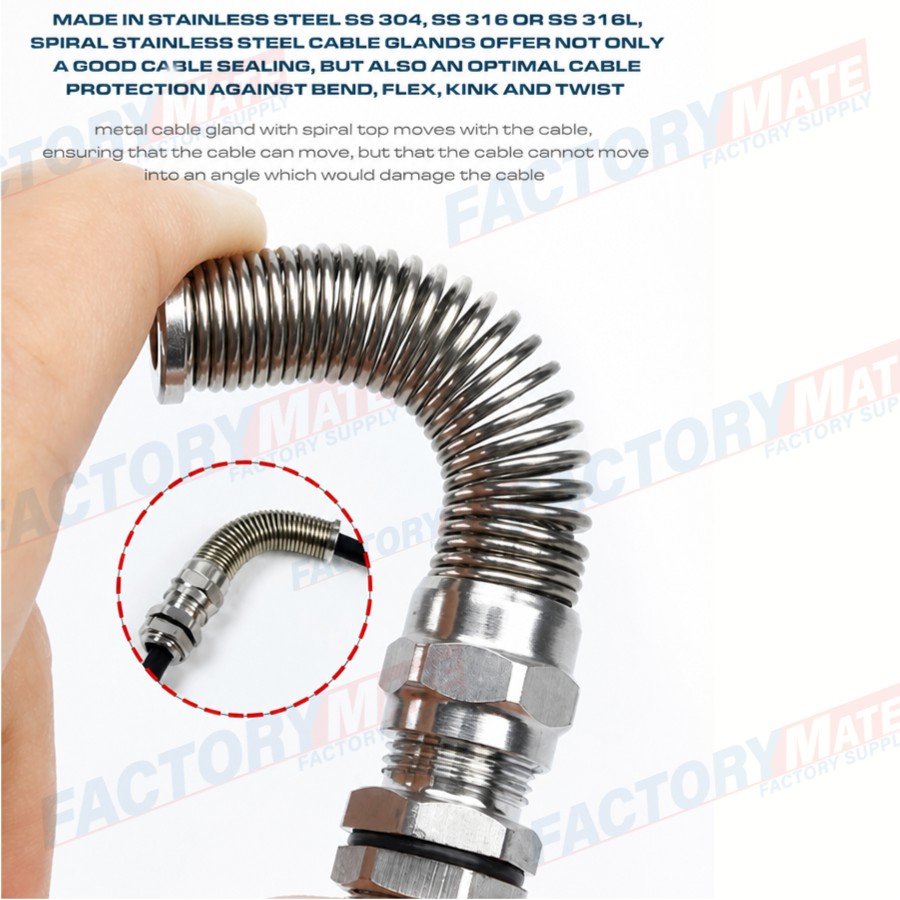

AISI316L, AISI316, AISI304 Stainless Steel Metal PG Flexible Cable Gland (IP68) with Additional Spiral Strain Relief comes with an additional spiral protector which can prevent cables from excessive bending and breakage and help to extend cable life.

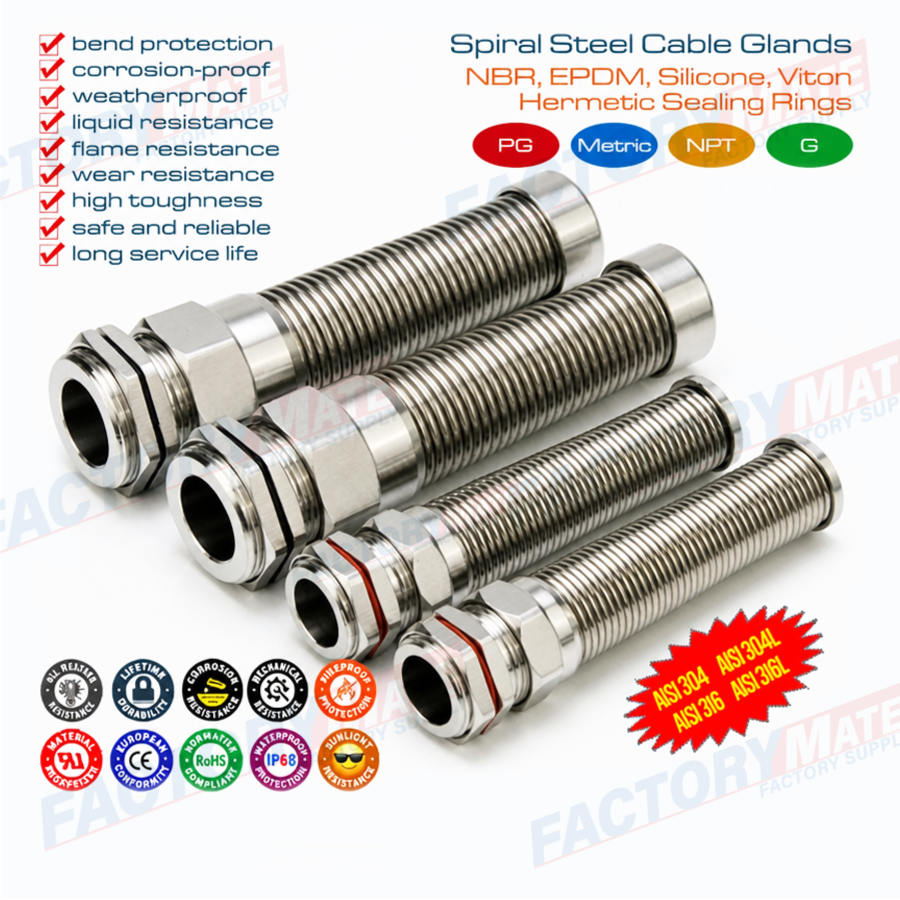

The spiral stainless steel metal cable glands are available in brass or stainless steel AISI304, AISI316 or AISI 316L with Metric, PG, NPT and G threads and 20mm elongated threads.
Series : PG Series

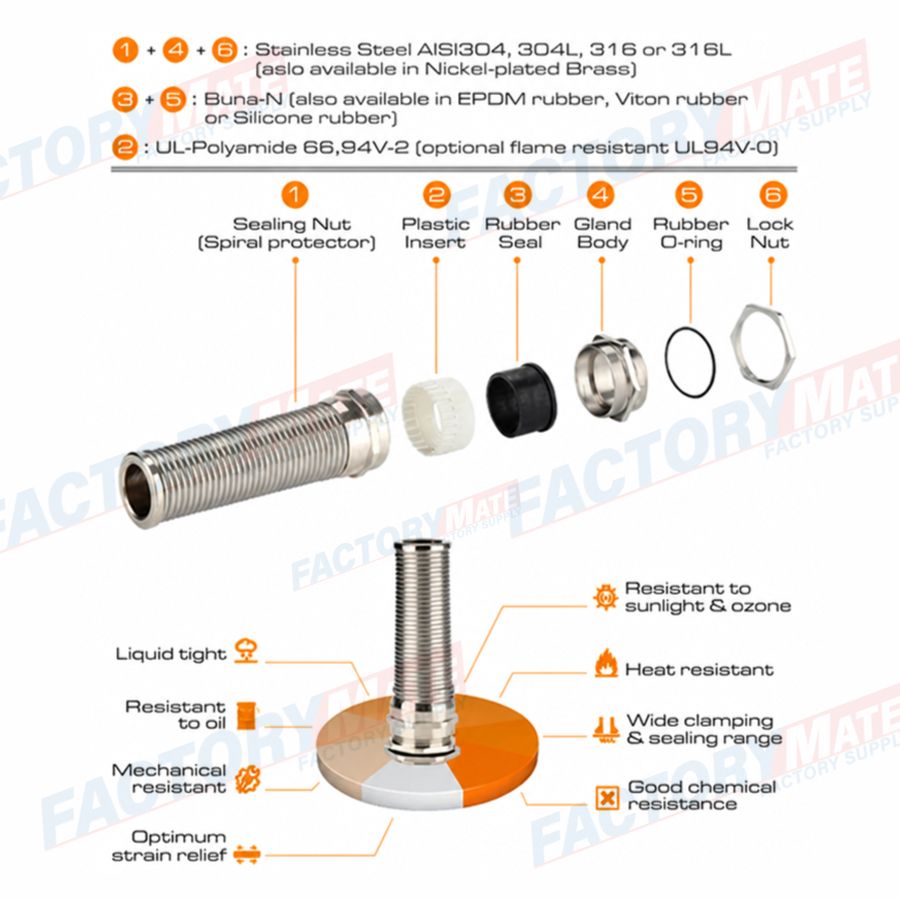

Material: Stainless Steel AISI304, AISI304L, AISI316 or AISI316L
Seal & O-ring: NBR (also available in EPDM rubber, Silicone rubber or rubber)r
Insert Material : Polyamide 66 approved by UL, 94V-2 (also available in 94V-0)
Surface Finish : Polishing
Color: Metallic Silver
Thread Standard: According to DIN 40430
Protection Rating: IP68
Working Temperature:
Static: -40 ℃ to 100 ℃, short-term: 120 ℃. (nylon parts & rubber parts) / Dynamic: -20 ℃ to 80 ℃, short-term: 100 ℃ (nylon parts & rubber parts)
Certifications: CE / RoHS / REACH
Thread | Cable Range (mm) | AG (mm) | Panel Mounting Hole (mm) | GL (mm) | H (mm) | d (mm) | Spanner (mm) | |
|---|---|---|---|---|---|---|---|---|
Min. | Max. | |||||||
| PG7 | 3 | 6.5 | 12.5 | 12.5-12.8 | 7 | 55 | 6.8 | 14 |
| PG9 | 4 | 8 | 15.2 | 15.2-15.5 | 8 | 66 | 8.2 | 19 |
| PG11 | 5 | 10 | 18.6 | 18.6-18.9 | 8 | 77 | 10.3 | 20 |
| PG13.5 | 6 | 12 | 20.4 | 20.4-20.7 | 8 | 88 | 12.3 | 22 |
| PG16 | 10 | 14 | 22.5 | 22.5-22.8 | 8 | 98 | 14.3 | 24 |
| PG21 | 13 | 18 | 28.3 | 28.3-28.6 | 9 | 111 | 18.4 | 32 |
| PG29 | 18 | 25 | 37 | 37-37.3 | 9 | 122 | 25.4 | 40 |
| PG36 | 25 | 33 | 47 | 47-47.3 | 10 | 132 | 33.4 | 50 |
| PG42 | 32 | 38 | 54 | 54-54.3 | 11 | 140 | 38.4 | 55 |
