Flexible Cable Glands, 304, 316 or 316L Type, IP68 Version, NPT Pitch, strong tensile strength, high sealing performance
หมวดหมู่ : CABLE GLAND , Stainless Steel Cable Gland ,
Share

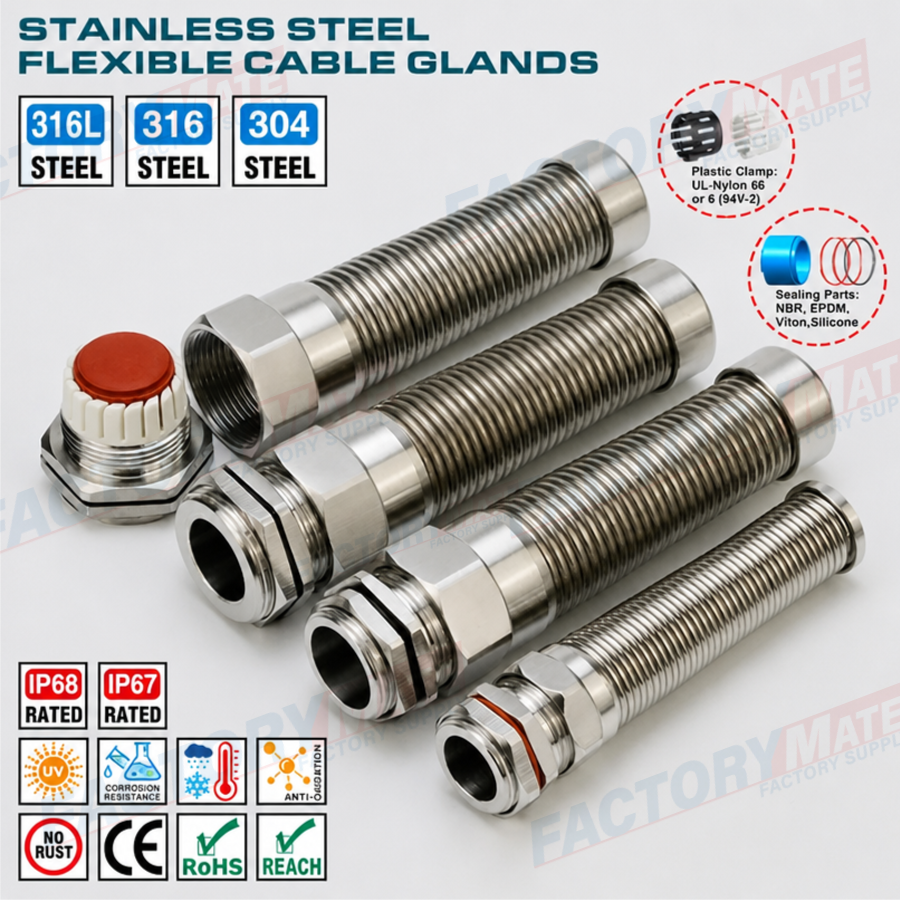

Spiral Metal Cable Glands NPT1/4-NPT3/4 Stainless Steel Flexible Cable Glands, 304, 316 or 316L Type, IP68 Version, NPT Pitch
Product Description

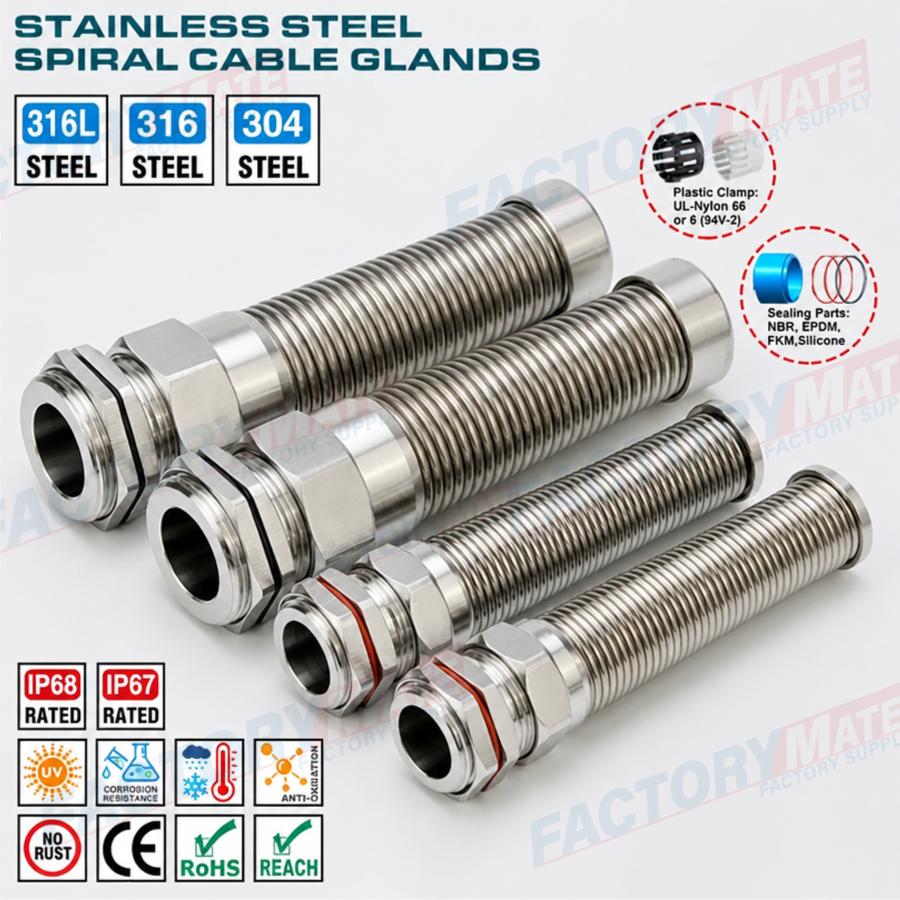

The stainless steel flexible cable glands (also known as stainless steel spiral cable glands) are protective components used at the connection between cables and equipment.
Their main features include preventing excessive bending of the cable, providing a waterproof seal, and being made of stainless steel.

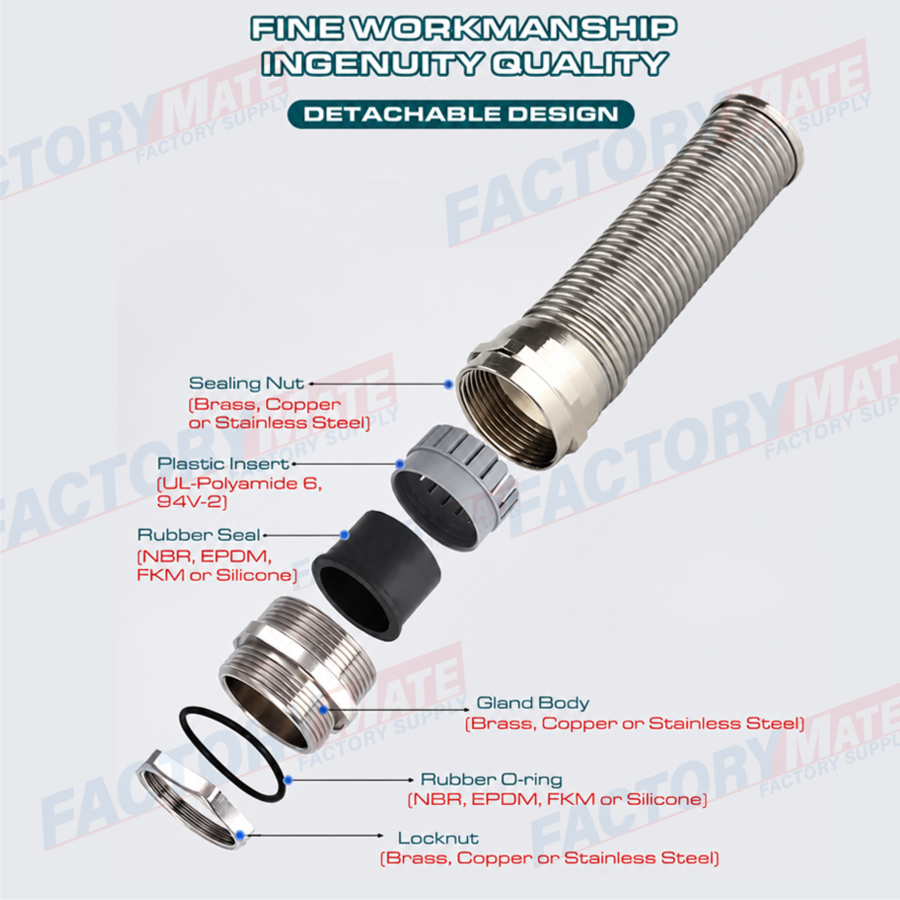

They utilize a special spring or flexible structure to cushion and distribute stress on the cable at the outlet, while ensuring the sealing and stability of the cable connection
Series: NPT Series
Material: Stainless Steel Type 304, 316 or 316L
Seal Material: NBR, EPDM, Silicone or FKM / FPM
Surface Finish: Polishing threatment
Color: Natural
Thread Standard: ANSI/ASME B 1.20.1
Protection Rating: IP68 (when the cable diameter is within the clamping range and assemble the O-ring)
Working Temperature:
Static Working Temperature: -40 ℃ to +100 ℃
Static Short-term: +120 ℃
Dynamic Working Temperature: -20 ℃ to +80 ℃
Dynamic Short-term: +100 ℃
Certifications: CE / RoHS / SGS
Thread | Cable Range (mm) | AG (mm) | Panel Mounting Hole (mm) | GL (mm) | H (mm) | d (mm) | Spanner (mm) | |
|---|---|---|---|---|---|---|---|---|
Min. | Max. | |||||||
| NPT1/4" | 3 | 6.5 | 13.616 | 13.6-13.9 | 9 | 53 | 6.8 | 14 |
| NPT1/4" | 4 | 8 | 13.616 | 13.6-13.9 | 9 | 53 | 8.2 | 14 |
| NPT3/8" | 4 | 8 | 17.055 | 17-17.3 | 9 | 66 | 8.2 | 18 |
| NPT3/8" | 5 | 10 | 17.055 | 17-17.3 | 9 | 66 | 10.3 | 18 |
| NPT1/2" | 6 | 12 | 21.224 | 21.2-21.5 | 10 | 77 | 12.3 | 24 |
| NPT1/2" | 10 | 14 | 21.224 | 21.2-21.5 | 10 | 77 | 14.3 | 24 |
| NPT3/4" | 13 | 18 | 26.569 | 26.6-26.9 | 12 | 88 | 18.4 | 30 |
| NPT1" | 15 | 22 | 33.228 | 33.3-33.6 | 14 | 98 | 22.4 | 34 |
| NPT1-1/4" | 22 | 30 | 41.985 | 42-42.3 | 14 | 111 | 30.4 | 45 |
| NPT1-1/2" | 25 | 33 | 48.054 | 48.1-48.4 | 14 | 122 | 33.4 | 55 |
