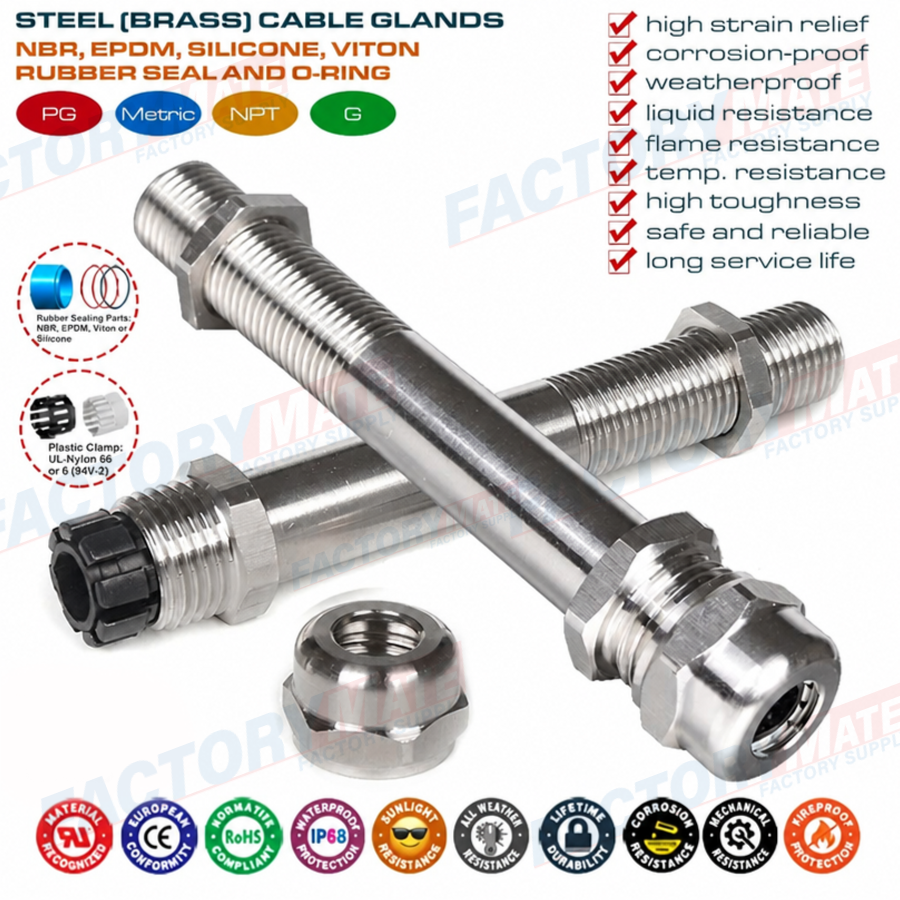

Metal Cable Gland Long Thread IP68, 304/316 Stainless Steel PG & Metric Cable Glands Extra Long (Ultra Long) Threadk Enclosure
Product Description
The long thread metal cable glands are made in stainless steel type 304/316/316L, they are mainly characterized by its ultra long thread.
Being available in lengths from 15mm to 50mm (other lengths can be customized), they are designed to meet the installation requirements of different panel thicknesses
Model: PG & Metric
Material: Stainless Steel 304/316/316L
Seal & O-ring: NBR, EPDM, Silicone, Viton Rubber
Plastic Insert: UL-certified Polyamide 6, 94V-2
Surface Treatment: Polishing
Color: Silver
Thread Standard: According to the standard DIN40430 / EN60423
Protection Rating: IP68 (assemble The O-ring On The Groove)
Working Temperature:
Static: -40 to 100
Static Short-term: 120
Dynamic: -20 to 80
Dynamic Short-term: 100
Certifications: CE, ROHS, REACH, IP68
Thread | Cable Range (mm) | AG (mm) | Panel Mounting Hole (mm) | GL (mm) | H (mm) | d (mm) | Spanner (mm) | |
|---|---|---|---|---|---|---|---|---|
Min. | Max. | |||||||
| PG7 | 3 | 6.5 | 12.5 | 12.5-12.8 | 7 | 55 | 6.8 | 14 |
| PG9 | 4 | 8 | 15.2 | 15.2-15.5 | 8 | 66 | 8.2 | 19 |
| PG11 | 5 | 10 | 18.6 | 18.6-18.9 | 8 | 77 | 10.3 | 20 |
| PG13.5 | 6 | 12 | 20.4 | 20.4-20.7 | 8 | 88 | 12.3 | 22 |
| PG16 | 10 | 14 | 22.5 | 22.5-22.8 | 8 | 98 | 14.3 | 24 |
| PG21 | 13 | 18 | 28.3 | 28.3-28.6 | 9 | 111 | 18.4 | 32 |
| PG29 | 18 | 25 | 37 | 37-37.3 | 9 | 122 | 25.4 | 40 |
| PG36 | 25 | 33 | 47 | 47-47.3 | 10 | 132 | 33.4 | 50 |
| PG42 | 32 | 38 | 54 | 54-54.3 | 11 | 140 | 38.4 | 55 |
Thread | Cable Range (mm) | AG (mm) | Panel Mounting Hole (mm) | GL (mm) | H (mm) | d (mm) | Spanner (mm) | |
|---|---|---|---|---|---|---|---|---|
Min. | Max. | |||||||
| M12x1.5 | 3 | 6.5 | 12 | 12-12.3 | 7 | 55 | 6.8 | 14 |
| M12x1.5 | 4 | 8 | 12 | 12-12.3 | 7.5 | 66 | 8.2 | 18 |
| M16x1.5 | 4 | 8 | 16 | 16-16.3 | 8 | 66 | 8.2 | 19 |
| M16x1.5 | 5 | 10 | 16 | 16-16.3 | 8 | 77 | 10.3 | 20 |
| M18x1.5 | 5 | 10 | 18 | 18-18.3 | 8 | 77 | 10.3 | 20 |
| M20x1.5 | 6 | 12 | 20 | 20-20.3 | 8 | 88 | 12.3 | 22 |
| M20x1.5 | 10 | 14 | 20 | 20-20.3 | 8 | 98 | 14.3 | 24 |
| M22x1.5 | 10 | 14 | 22 | 22-22.3 | 8 | 98 | 14.3 | 24 |
| M24x1.5 | 10 | 14 | 24 | 24-24.3 | 8 | 98 | 14.3 | 27 |
| M25x1.5 | 10 | 16 | 25 | 25-25.3 | 8 | 111 | 16.3 | 27 |
| M28x1.5 | 13 | 18 | 28 | 28-28.3 | 9 | 111 | 18.4 | 30 |
| M30x1.5 | 13 | 18 | 30 | 30-30.3 | 9 | 111 | 18.4 | 32 |
| M32x1.5 | 15 | 22 | 32 | 32-32.3 | 9 | 122 | 22.4 | 34 |
| M37x1.5 | 18 | 25 | 37 | 37-37.3 | 9 | 122 | 22.4 | 40 |
| M40x1.5 | 22 | 30 | 40 | 40-40.3 | 10 | 132 | 30.4 | 45 |
| M47x1.5 | 25 | 33 | 47 | 47-47.3 | 10 | 132 | 33.4 | 50 |
| M50x1.5 | 32 | 38 | 50 | 50-50.3 | 11 | 140 | 38.4 | 55 |
