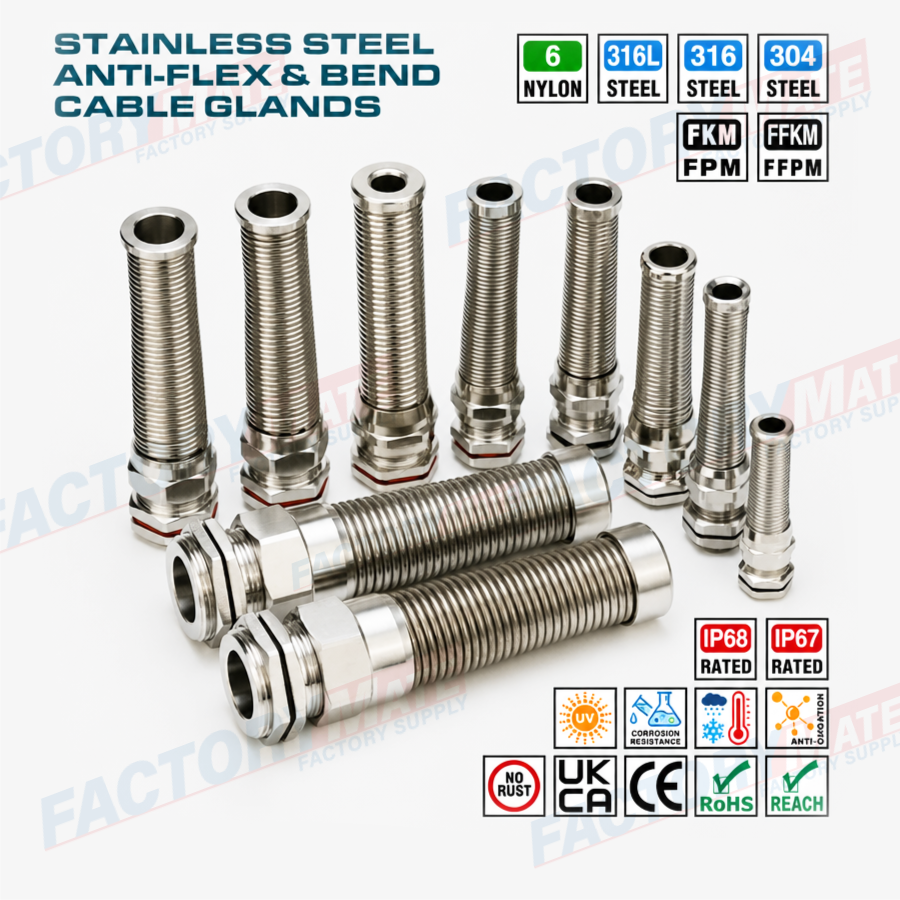

IP68 Stainless Steel Metal Cable Glands with Helical Flexible Pigtail M12x1.5-M50x1.5, Metric Pitch, 316L/316/304 Version
Product Description
A stainless steel spiral flexible cable gland, also known as stainless steel strain relief cable gland, is a cable securing and cable sealing connector developed by adding a spiral guard or anti-bending protective spring to a standard stainless steel cable gland; essentially, it is a three-in-one product combining waterproof sealing, cable securing, and anti-bend protection.
Series : Metric Series
Material: Stainless Steel 304 / 316 / 316L
Sealing Materials : NBR / EPDM / Silicone / FKM / FPM
Insert Material : UL-Polyamide 6 / Polyamide 6.6
Surface : Polishing Treatment
Color: Natural
Thread Standard: EN 60423
Protection Rating: IP68 (when the cable diameter is within the clamping range and assemble the O-ring)
Working Temperature:
Static: -40 ℃ to +100 ℃
short-term: +120 ℃
Dynamic: -20 ℃ to +80 ℃
short-term: +100 ℃
Certifications: CE / UKCA / ROHS / REACH / IP68
Thread | Cable Range (mm) | AG (mm) | Panel Mounting Hole (mm) | GL (mm) | H (mm) | d (mm) | Spanner (mm) | |
|---|---|---|---|---|---|---|---|---|
Min. | Max. | |||||||
| M12x1.5 | 3 | 6.5 | 12 | 12-12.3 | 7 | 55 | 6.8 | 14 |
| M12x1.5 | 4 | 8 | 12 | 12-12.3 | 7.5 | 66 | 8.2 | 18 |
| M16x1.5 | 4 | 8 | 16 | 16-16.3 | 8 | 66 | 8.2 | 19 |
| M16x1.5 | 5 | 10 | 16 | 16-16.3 | 8 | 77 | 10.3 | 20 |
| M18x1.5 | 5 | 10 | 18 | 18-18.3 | 8 | 77 | 10.3 | 20 |
| M20x1.5 | 6 | 12 | 20 | 20-20.3 | 8 | 88 | 12.3 | 22 |
| M20x1.5 | 10 | 14 | 20 | 20-20.3 | 8 | 98 | 14.3 | 24 |
| M22x1.5 | 10 | 14 | 22 | 22-22.3 | 8 | 98 | 14.3 | 24 |
| M24x1.5 | 10 | 14 | 24 | 24-24.3 | 8 | 98 | 14.3 | 27 |
| M25x1.5 | 10 | 16 | 25 | 25-25.3 | 8 | 111 | 16.3 | 27 |
| M28x1.5 | 13 | 18 | 28 | 28-28.3 | 9 | 111 | 18.4 | 30 |
| M30x1.5 | 13 | 18 | 30 | 30-30.3 | 9 | 111 | 18.4 | 32 |
| M32x1.5 | 15 | 22 | 32 | 32-32.3 | 9 | 122 | 22.4 | 34 |
| M37x1.5 | 18 | 25 | 37 | 37-37.3 | 9 | 122 | 22.4 | 40 |
| M40x1.5 | 22 | 30 | 40 | 40-40.3 | 10 | 132 | 30.4 | 45 |
| M47x1.5 | 25 | 33 | 47 | 47-47.3 | 10 | 132 | 33.4 | 50 |
| M50x1.5 | 32 | 38 | 50 | 50-50.3 | 11 | 140 | 38.4 | 55 |
