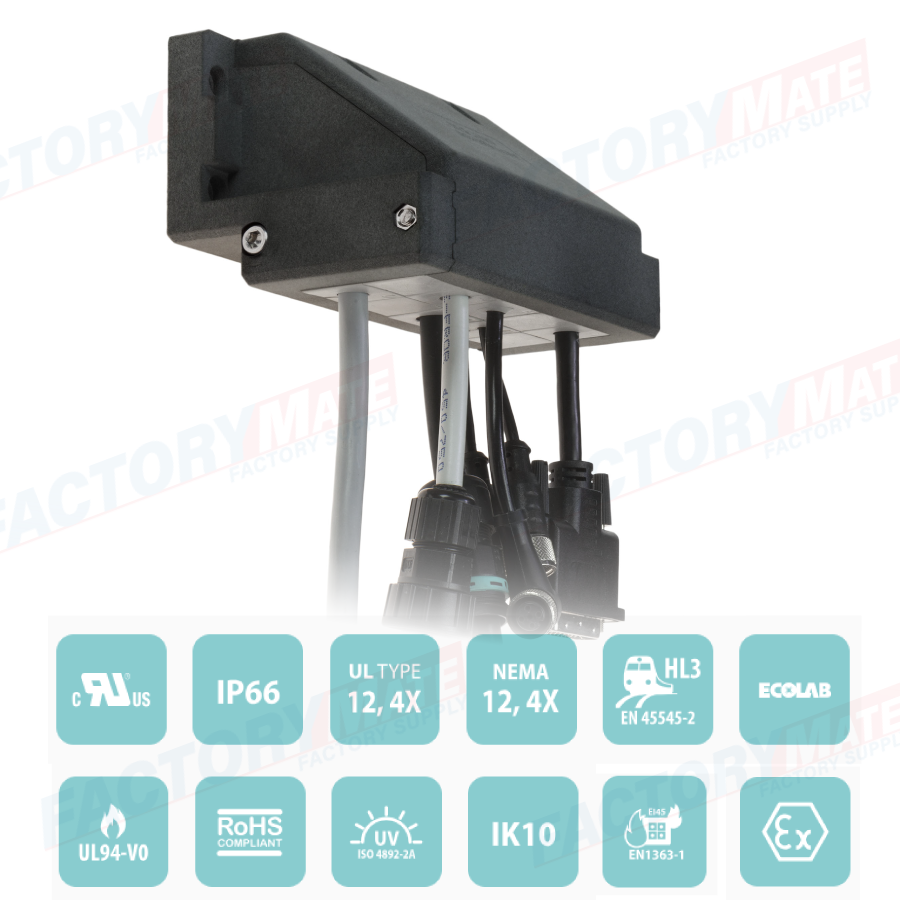

The DES 24-90 cable entry frame allows 90° entry of cables with and without connectors and corrugated conduits into electrical cabinets, switchboards, machine panels and other devices.
หมวดหมู่ : ENTRY SYSTEM PRE-TERMINATED CABLES , DES frames ,

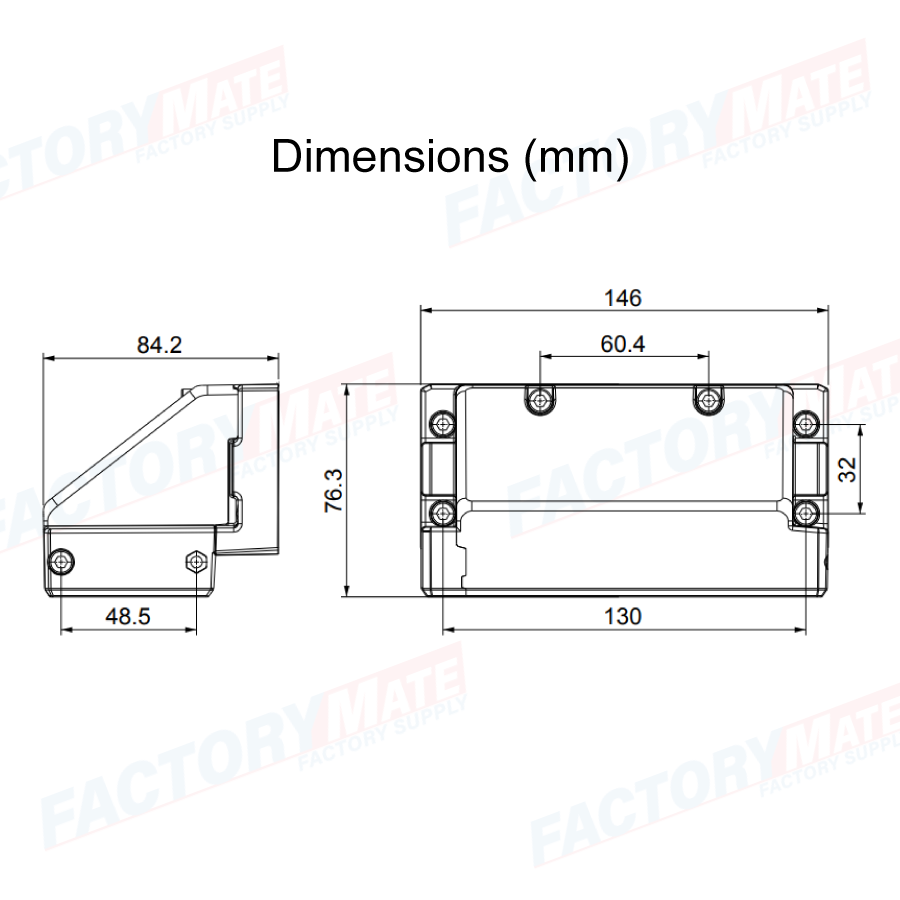

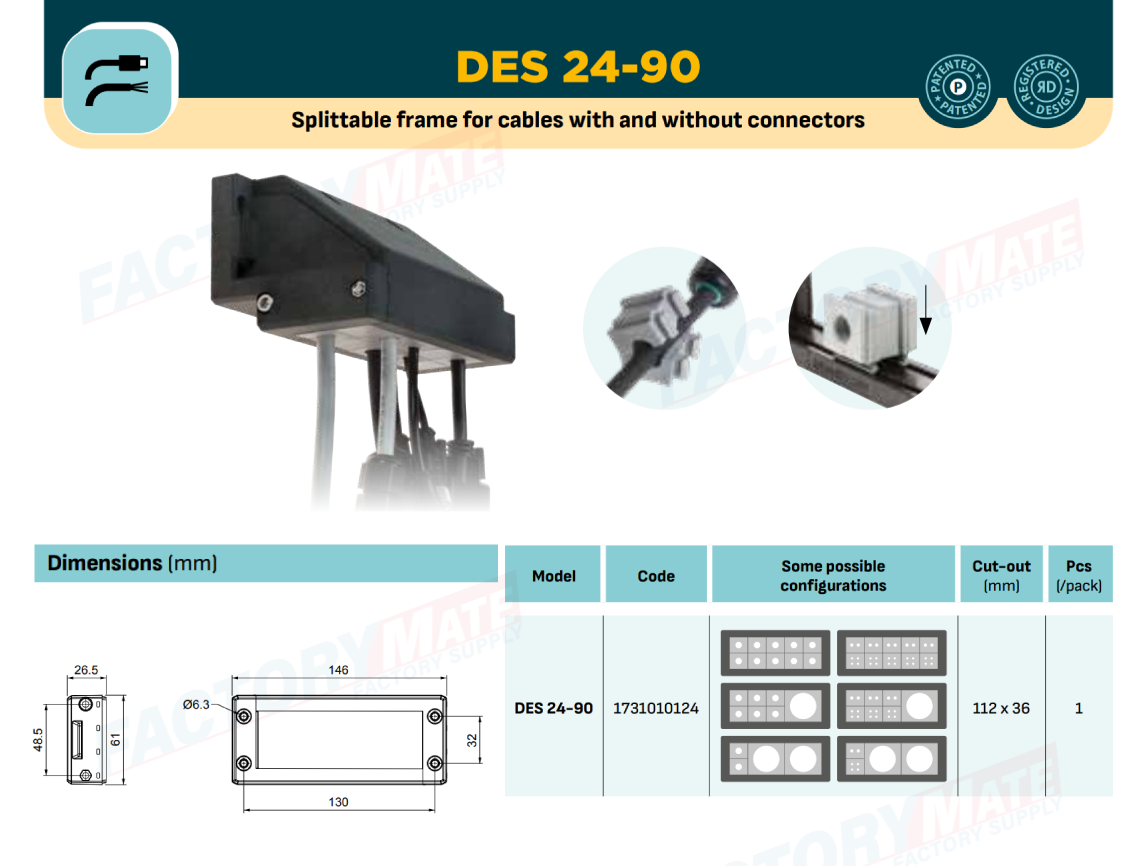

DES 24-90
Divisible cable entry system frame for cables with and without connectors
The standard openings of 24‑pole multipole connectors are used to mount the DES 24‑90 on the panel. The DES 24‑90 is made of two parts and can accommodate 10 small grommets, 2 grommets and 2 small grommets, or various other grommet combinations. Thanks to the modular grommets, up to 40 cables can be routed through the wall in an extremely compact space. The DES 24‑90 ensures IP54 protection and complies with EN 62444, the standard governing cable retention performance.
The system satisfies the self-extinguishing class UL94V0 for the frame and for the grommets(grey and black).
Features
- Multiple configurations in the same frame and highest water protection with all the combinations of grommets.
- Frame screws in AISI304 Stainless Steel
- 90° cable entry
- IP54
- Cable strain relief according to EN 62444
- Robust construction IK10
- halogen-free, silicone-free,flame class V0 both colors, comply with ASTM IRM 903 , UL 157
Material: PP+GF
Flammability: elf-extinguishing according to UL94-V0
Temperature: -40°C... +155°C (static)
Compatible Grommets
 SPP P |  SPP F |  SPP 2x |  SPP M |  SPP VENT |  SPP 4x |
 SPG WP |  SPP R |  SPG P |  SPG EMC |  SPG W22 |  SPG Y |
 SPG W |  SPG K |  SPG |  SPP |  SPG M |
Fastening of the grommet strip to the board or panel is done with screws or rivets. Upon request, we supply screws for fastening, again made of stainless steel but with a black geomet finish. Alternatively, you can use the "Snap" quick coupler for greater mounting flexibility.
