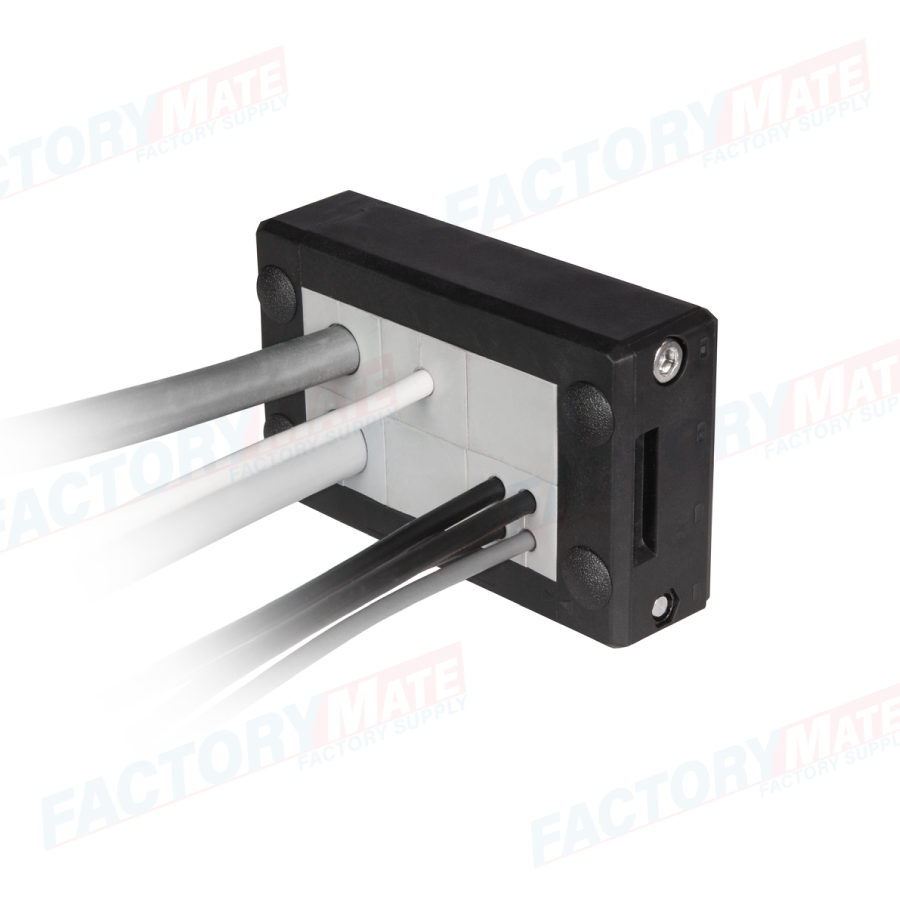

DES FT
Splittlable frames for cables with and without connectors

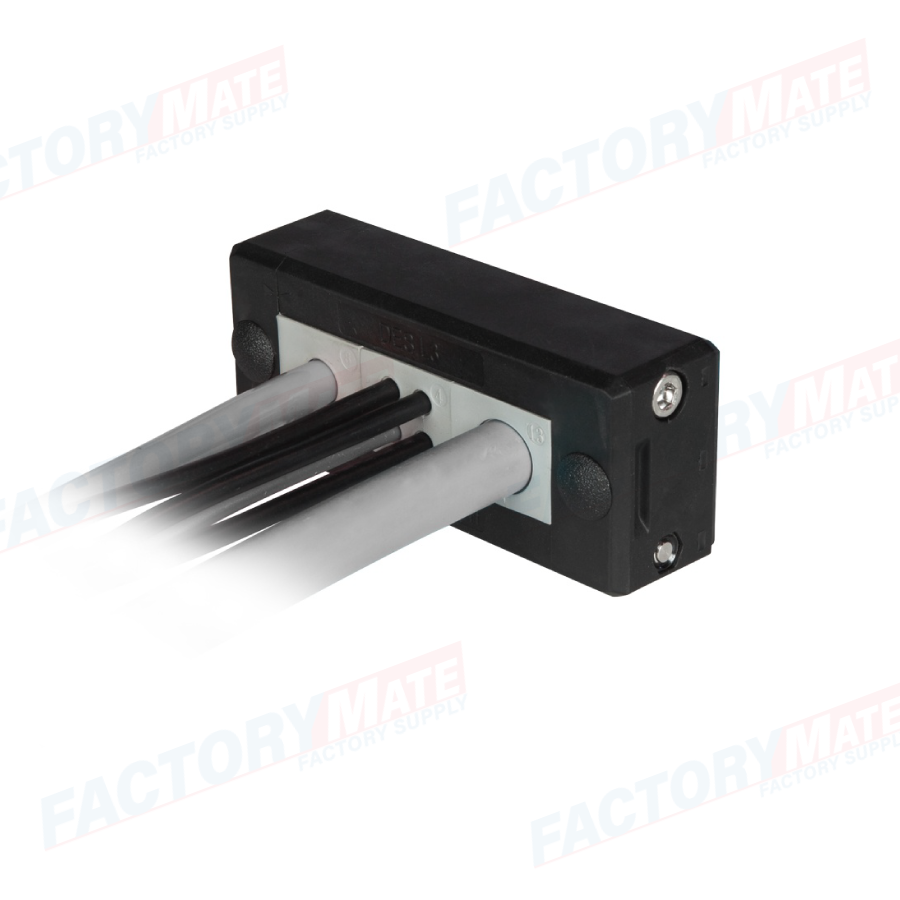

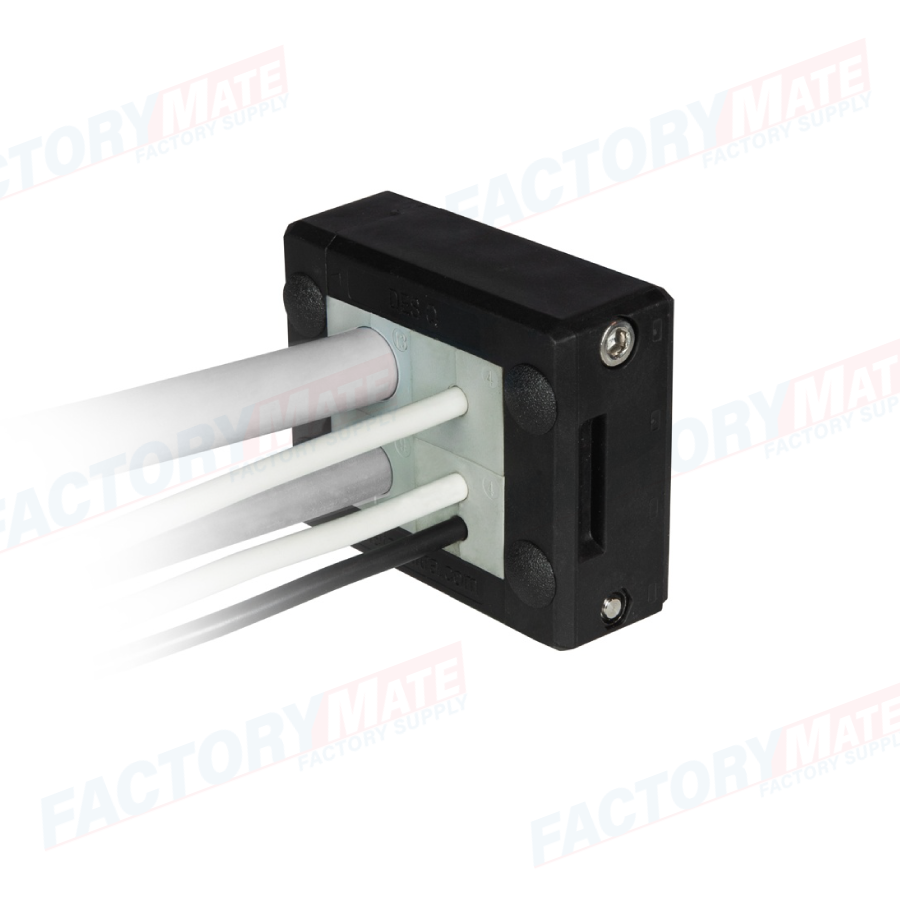

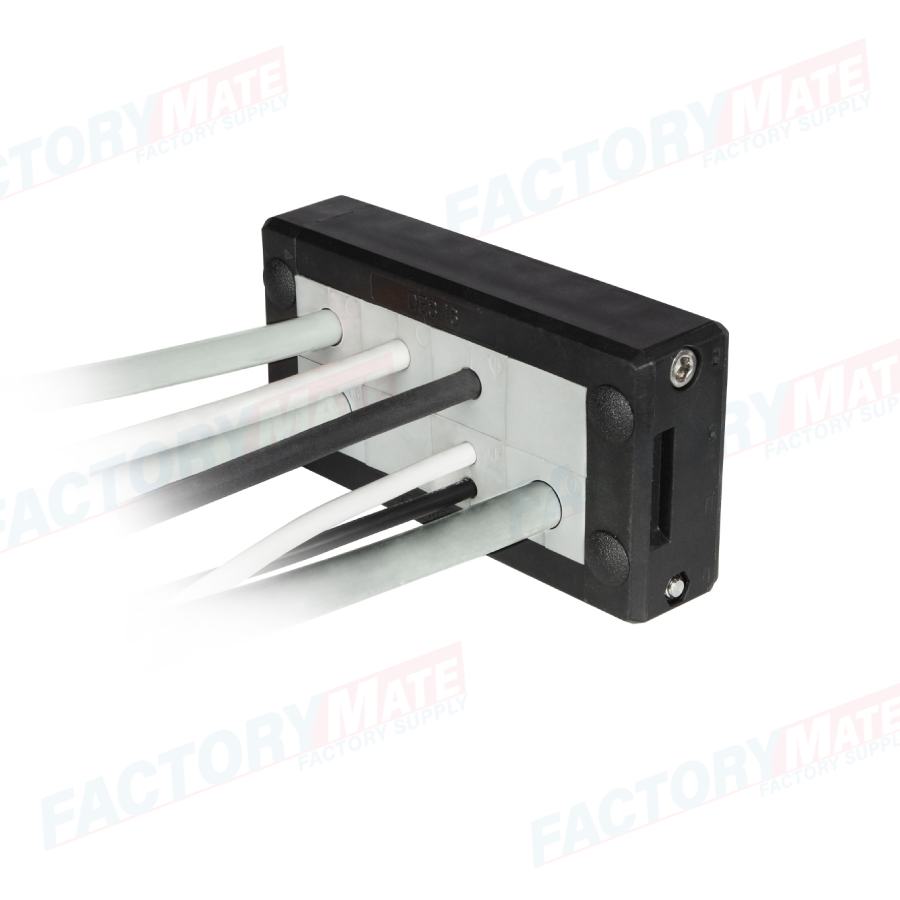

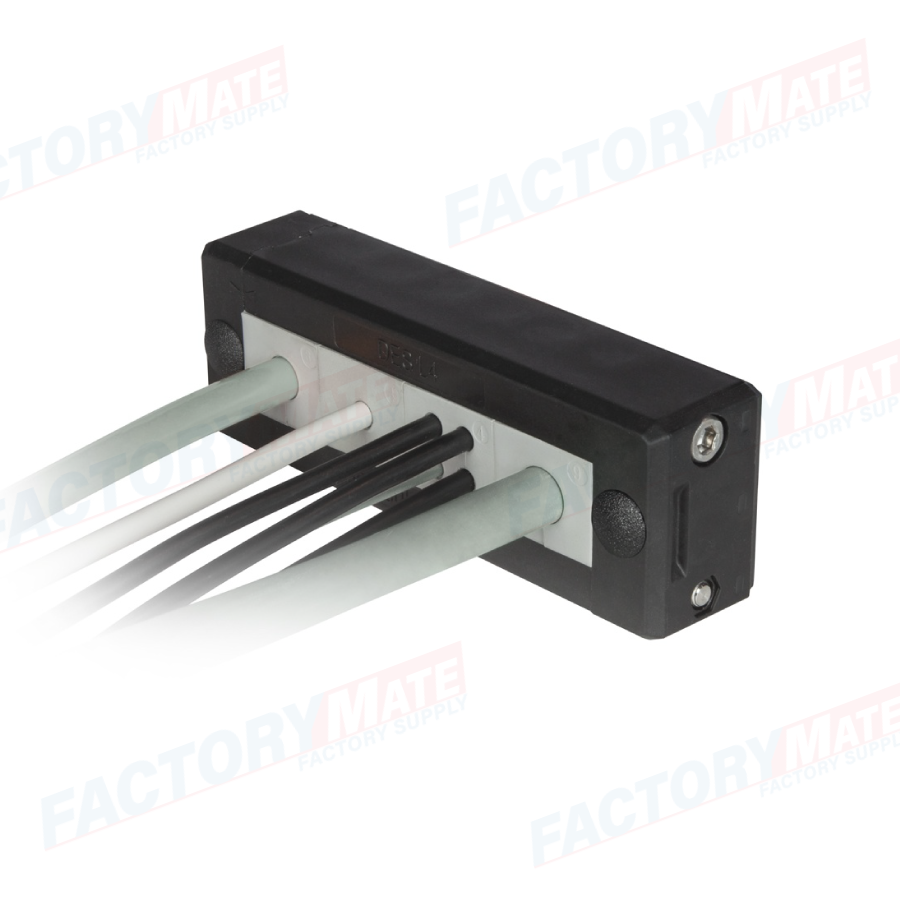

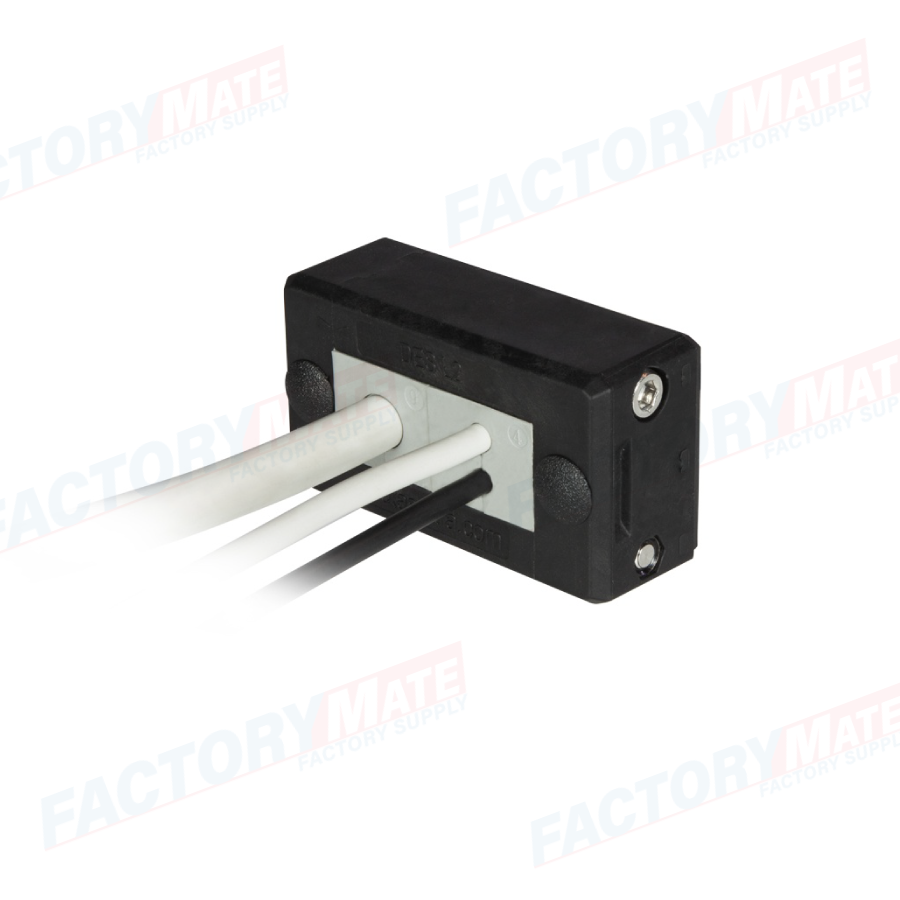

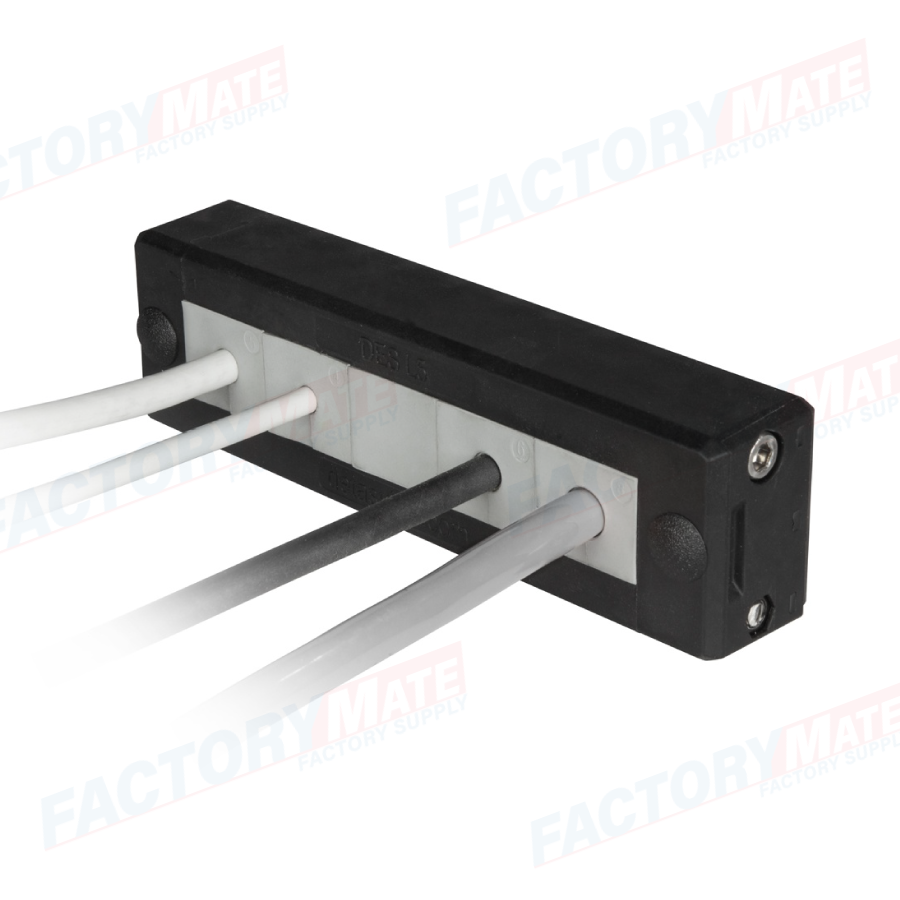

The divisible frames of**the DES FT**series allow the**routing terminated and non-terminated cables**with diameters from 2 to 35 mm thanks to the various grommets.

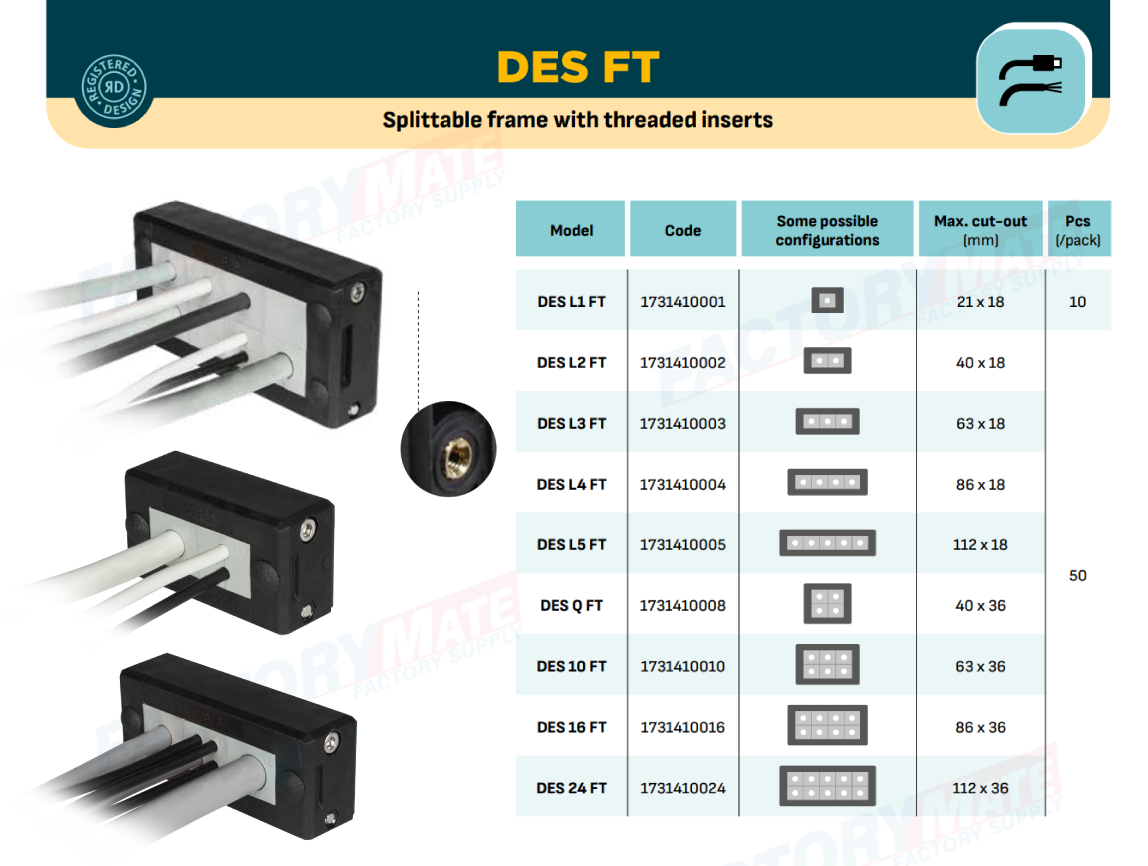

Fastening of the frame to the panel is done thanks to threaded inserts already installed on the frame. In this way, with the font caps, the frontal surface appears smooth without dirt accumulation in the screws seat.
Openable grommets can be freely placed inside the frame. IP66 or NEMA4X degree of protection is achieved with any combination of grommets (single, double, quadruple, breakthrough).
The gasket is co-molded, so the system is fully self-extinguishing according to UL94V0.
All other features of DES FT frames are identical to the DES series.
Features
- Multiple configurations in the same frame and highest water protection with all the combinations of grommets.
- Frame screws in AISI304 Stainless Steel

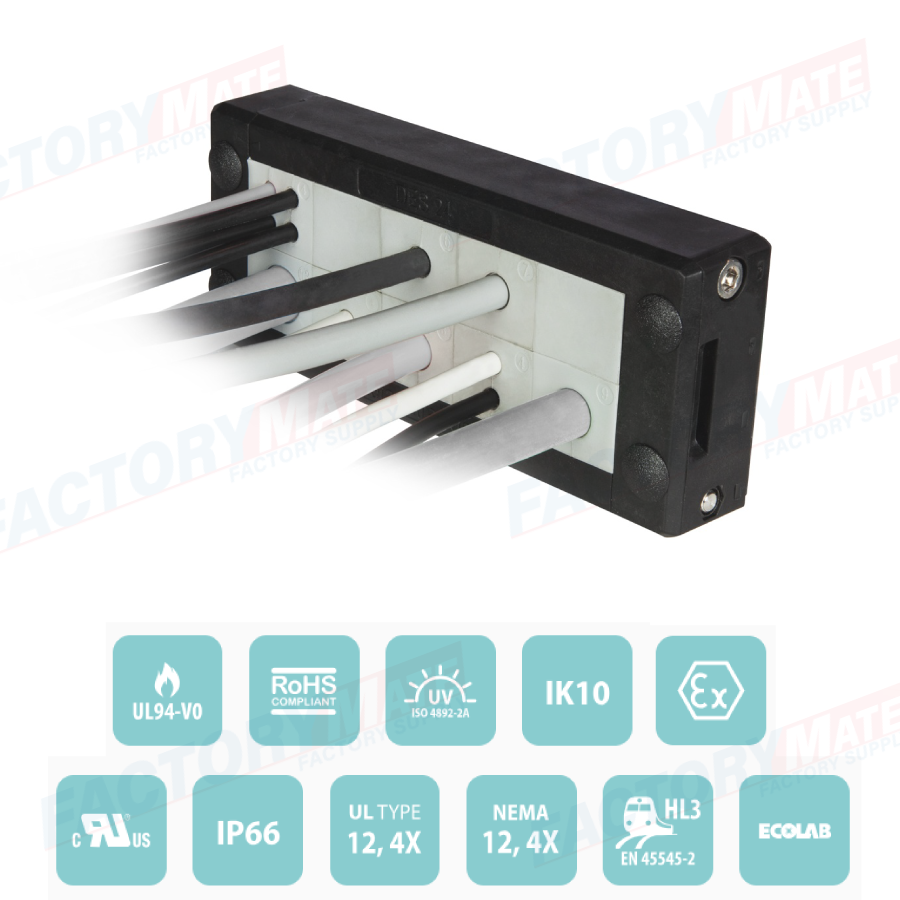

- IP66 certified, Nema 4X with any combination of grommets
- Strain relief according to EN 62444
- Robust construction IK10
- Integrated gasket
- halogen-free, silicone-free
Material: PP+GF
Flammability: elf-extinguishing according to UL94-V0
Temperature: -40°C... +155°C (static)
Compatible Grommets
 SPP |  SPP 2x |  SPP 4x |  SPP F |  SPP K |  SPP M |
 SPP ASI |  SPP VENT |  SPG |  SPG M |  SPG K |  SPG W |
 SPG Y |
Fastening of the grommet strip to the board or panel is done with screws or rivets. Upon request, we supply screws for fastening, again made of stainless steel but with a black geomet finish. Alternatively, you can use the "Snap" quick coupler for greater mounting flexibility.
