Extended-range openable grommets in the SPP R family allow the use of cables with or without connectors. Extended range grommets for cables with or without connectors for diameters from 3 to 15 mm
หมวดหมู่ : ENTRY SYSTEM PRE-TERMINATED CABLES , Grommets ,
Share

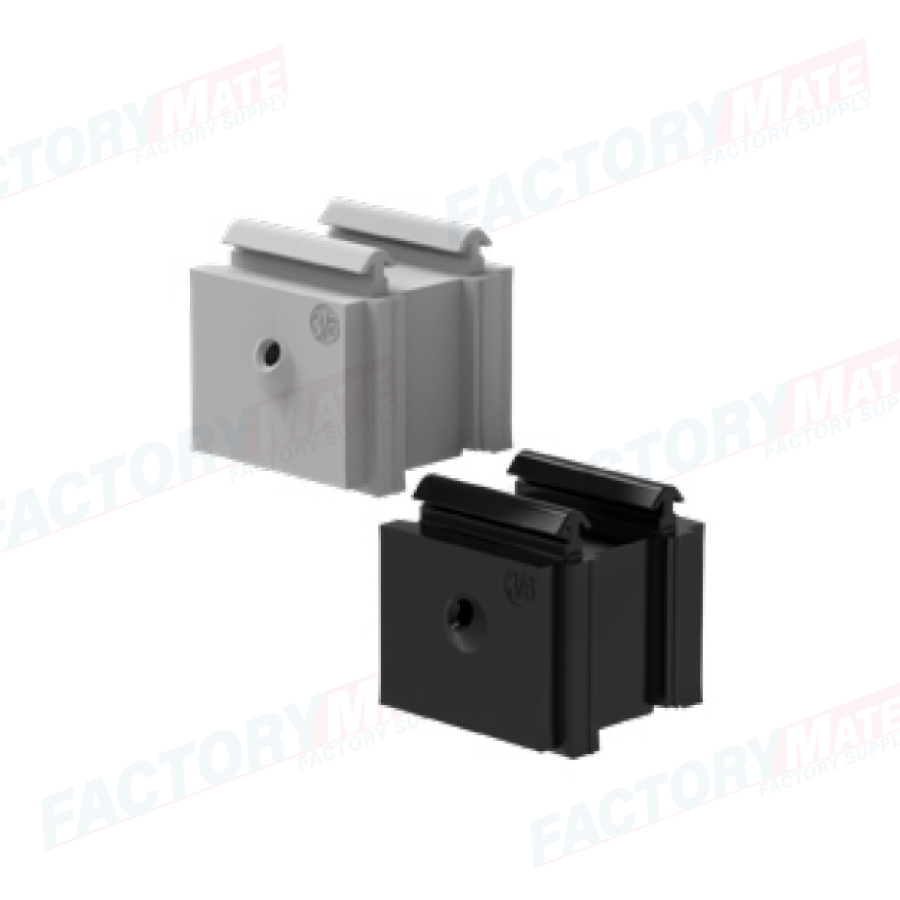

SPP R
SPP grommets with extended range

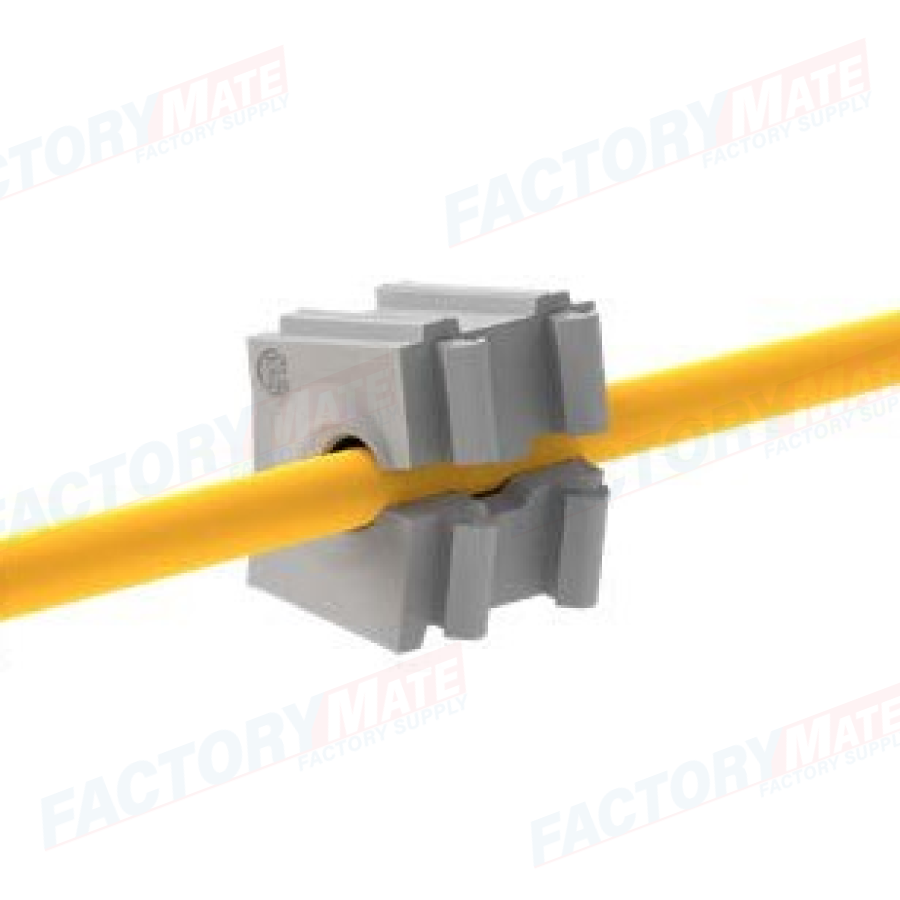

Extended-range openable grommets in the SPP R family allow the use of cables with or without connectors.

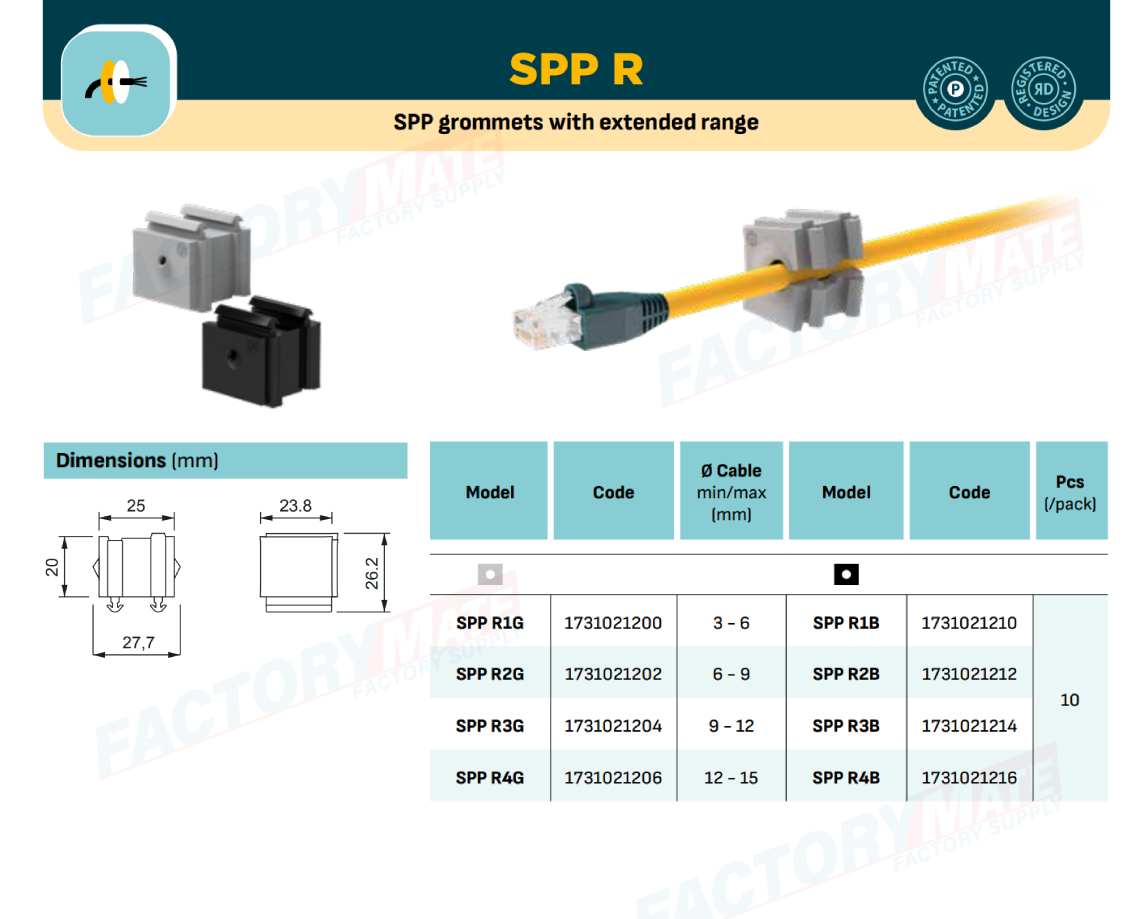

Four models are available for diameters from 3 to 15 mm (R1...R4). The use of SPP R grommets allows for improved stock management by making cable management more flexible.
Features
- Extended range grommets for cables with or without connectors for diameters from 3 to 15 mm
- Colours grey and black
- UL94-V0 for both colours
- halogen-free, silicone-free,flame class V0 both colors, comply with ASTM IRM 903 , UL 157
- IP66
Material: TPE
Flammability: self-extinguishing according to UL94-V0
Temperature: -40°C... +110°C (static)
Compatible Grommets
 SPP P |  SPP F |  SPP 2x |  SPP M |  SPP VENT |  SPP 4x |
 SPG WP |  SPP R |  SPG P |  SPG EMC |  SPG W22 |  SPG Y |
 SPG W |  SPG K |  SPG |  SPP |  SPG M |
Fastening of the grommet strip to the board or panel is done with screws or rivets. Upon request, we supply screws for fastening, again made of stainless steel but with a black geomet finish. Alternatively, you can use the "Snap" quick coupler for greater mounting flexibility.
