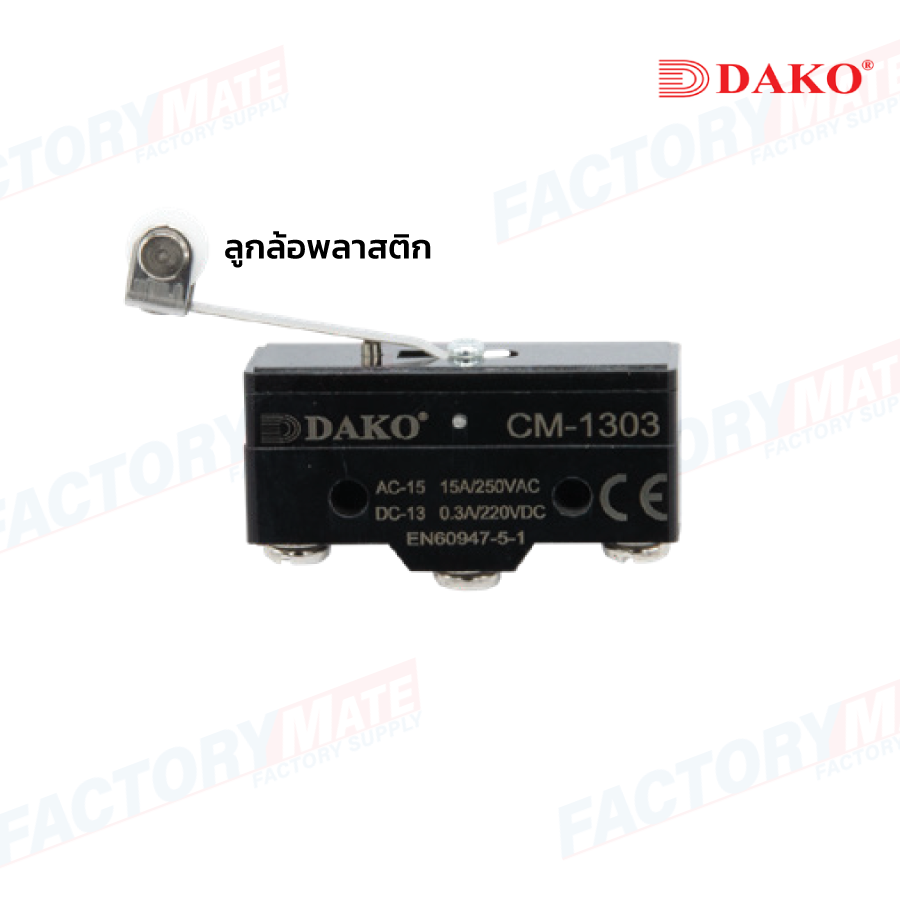

DAKO CM-1303P (Plastic roller plunger)

DAKO CM-1303P (Plastic roller plunger)

DAKO LIMIT SWITCH - MICRO SWITCH 15A 250V

FEATURES
• Various acyuators and some with adjustable operating position (such-as CM1701)
• High switch on and off capacity (15A)
• High accuracy
• Wide range of operation speed
• Each type of CM series has solder terminal, screw terminal and tab terminal for selection
• Add a for solder terminal, add C for tab terminal, blank for screw terminal

CHARACTERISTICS
OPERATION SPEED:  0.01mm-1m/sec
OPERATING FREQUENCUY: Mechanical:240 operations/min. Electical: 20 operations/min.
CONTACT RESISTANCE: 15mΩ max. (initial value)
INSULATION RESISTANCE: 100mΩ min. (at 500VDC)
DIEIECTRIC STRENTH:
1500VAC, 50/60 Hz for 1 minute between current-carrying and non-current-carry
ing metal parts
1500VAC,50/60 Hz for 1 minute between each terminal and ground
VIBRATION:  10-55Hz, 1.5mm double amplitude
SHOCK: Mechanical durable :1,000m/Sec2 OPERATING CHARACTERISTICS (about 100G'S)
              Malfunction: 300m/Sec2 (about 30G'S)
OPERATION TEMPERATURE : General porpose type:-25 ํC to +80 ํC (with no icing). Sealed type:-15 ํC to +80 ํC (with no ciing)
HUMIDITY:  General purpose type: 85% RH max., Sealed type: 95% RH max.
LIFE SPAN : Mechanical: 20,000,000 operations/min.
                    Eiectrical: 500,000 operations/min.
WEIGHT:  About 22 to 58g
