DAKO LIMIT SWITCH 5A 250V
หมวดหมู่ : SAFETY SWITCH , Limit Switch, Micro Switch ,
แบรนด์ : DAKO
Share

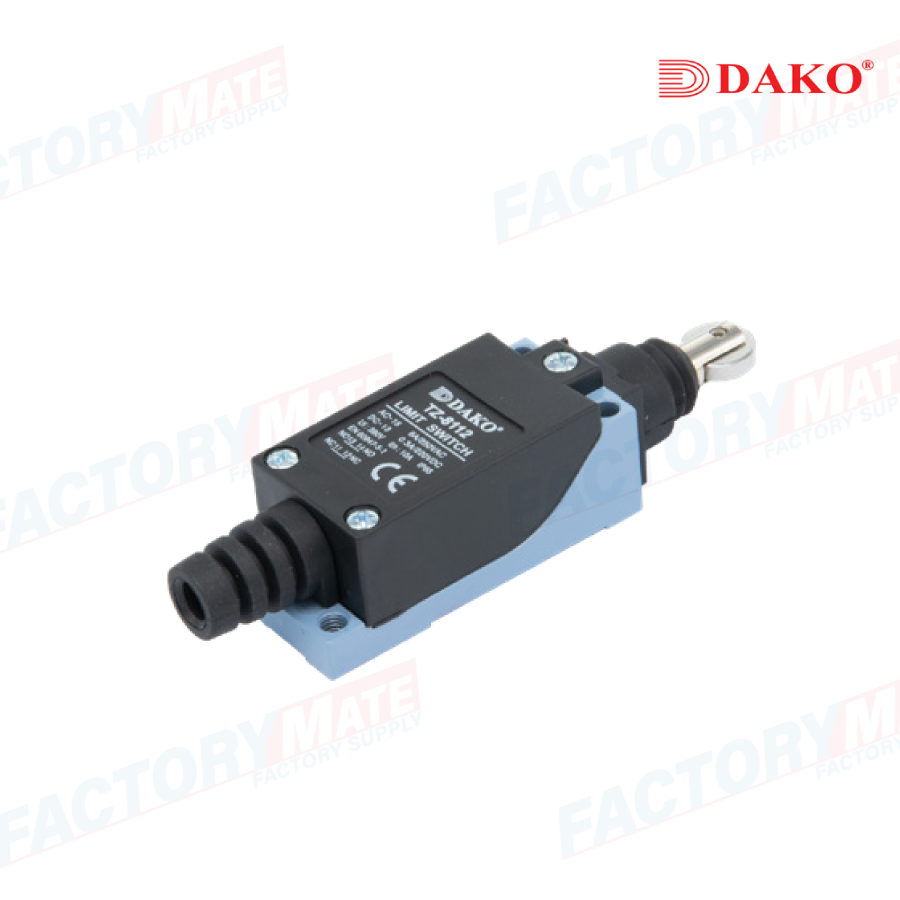

DAKO TZ-8112
DAKO LIMIT SWITCH 5A 250V
FEATURES
• Double circuit type of limit switch
• High mechanical strength, consists of intensive plastic and aluminum cast
• Small size, water-proof and oil proof construction
• Built-in contact stand has double-spring and long mechanical life
• Smooth operation with larger over travel distance
• Conduit design that is convenient for wiring
• Various actuators for different applications
CHARACTERISTICS
OPERATION SPEED: 0.5mm-50cm sec
OPERATING FREQUENCUY: Mechanical:120 operations/min. Electical: 30 operations/min.
CONTACT RESISTANCE: 25mΩ max. (initial value)
INSULATION RESISTANCE: 100mΩ min. ( below 500VDC)
VIBRATION: 10-55Hz, 1.5mm double amplitude
OPERATION TEMPERATURE : -10+70 ํC With no icing
HUMIDITY: < 95% RH
LIFE SPAN : Mechaical: 10,000,000 operations above
Electrical: 500,000 operations above
| MODEL | ลักษณะหน้าสัมผัสทำงาน | RATED CURRENT / VOLTAGE | CONTACT TYPE | TERMINAL TYPE |
| TZ-8104P | Side rotary with plastic roller | 5A / 250V | 1NO 1NC | SCREW TYPE |
| TZ-8105 | Side rotary with stainless steel roller | 5A / 250V | 1NO 1NC | |
| TZ-8107 | Side rotary sdustable metal rod | 5A / 250V | 1NO 1NC | |
| TZ-8108 | Side rotary adjustable level with plastic roller | 5A / 250V | 1NO 1NC | |
| TZ-8109 | Side rotary adjustable level with stainless steel roller | 5A / 250V | 1NO 1NC | |
| TZ-8111 | Top steel plunger | 5A / 250V | 1NO 1NC | |
| TZ-8112 | Horizontal steel roller plunger | 5A / 250V | 1NO 1NC | |
| TZ-8166 | Flexible spring with plastic rod | 5A / 250V | 1NO 1NC | |
| TZ-8167 | Flexible rod | 5A / 250V | 1NO 1NC | |
| TZ-8122 | Vertical steel roller plunger | 5A / 250V | 1NO 1NC | |
| TZ-8168 | Flexible spring with metal rod | 5A / 250V | 1NO 1NC | |
| TZ-8169 | Flexible spring with metal wire | 5A / 250V | 1NO 1NC |
