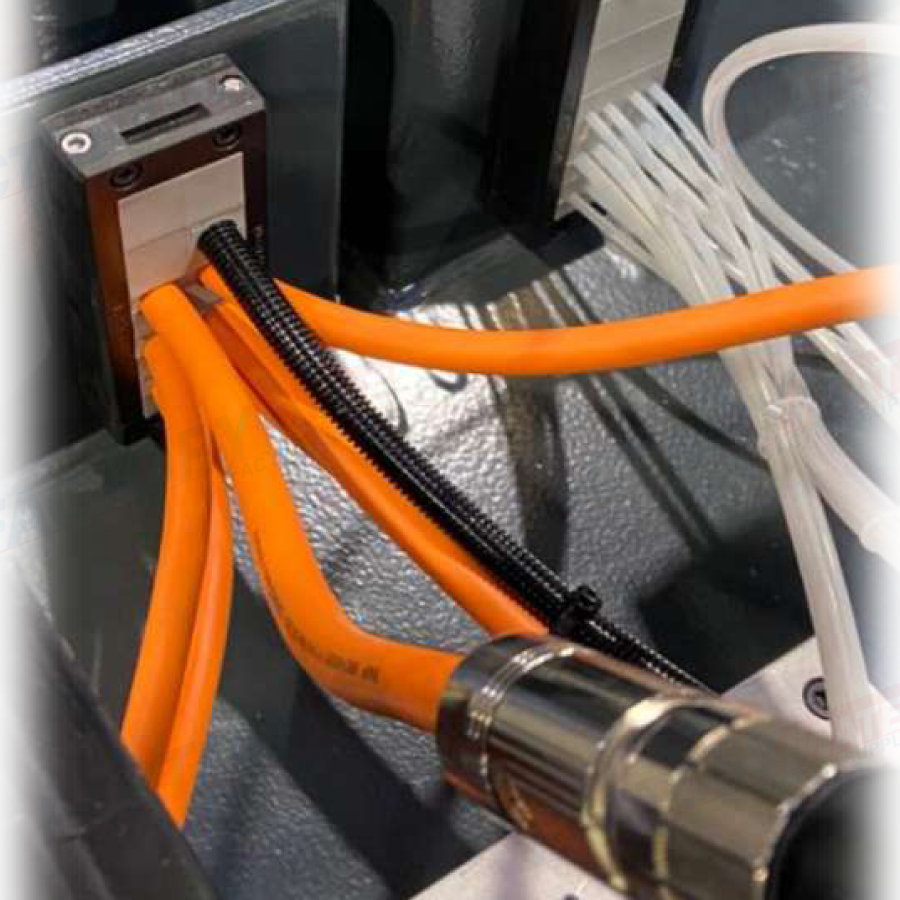

DES 24 system for pre-terminated cables The DES 24 cable entry system consists of a splittable frame designed to accommodate small (SPP), multiple (X) or large (SPG) inserts for cables in the same frame. Future cable size changes can be easily accommodated.
หมวดหมู่ : ENTRY SYSTEM PRE-TERMINATED CABLES , DES frames ,
DES 24

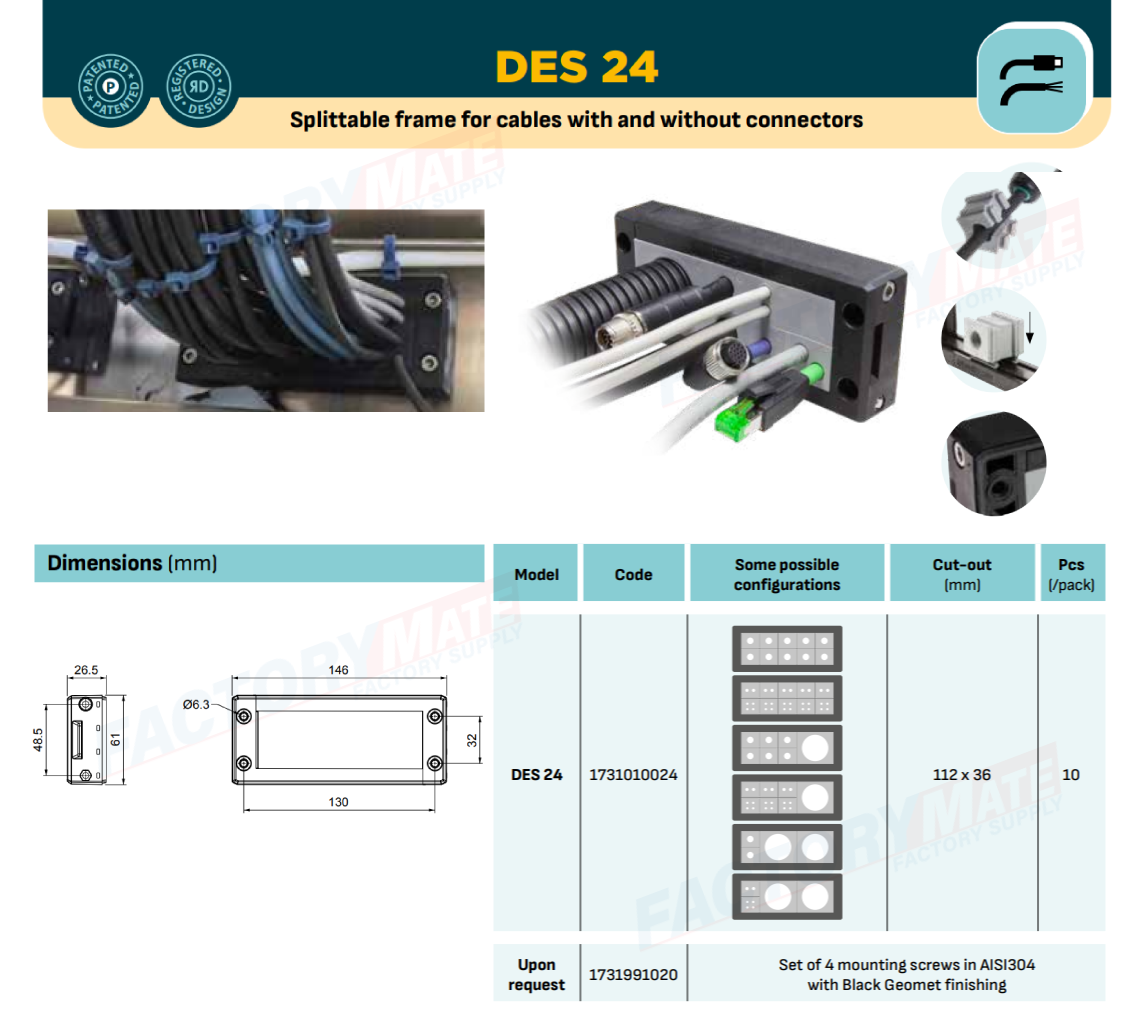

Divisible cable entry system frame for cables with and without connectors

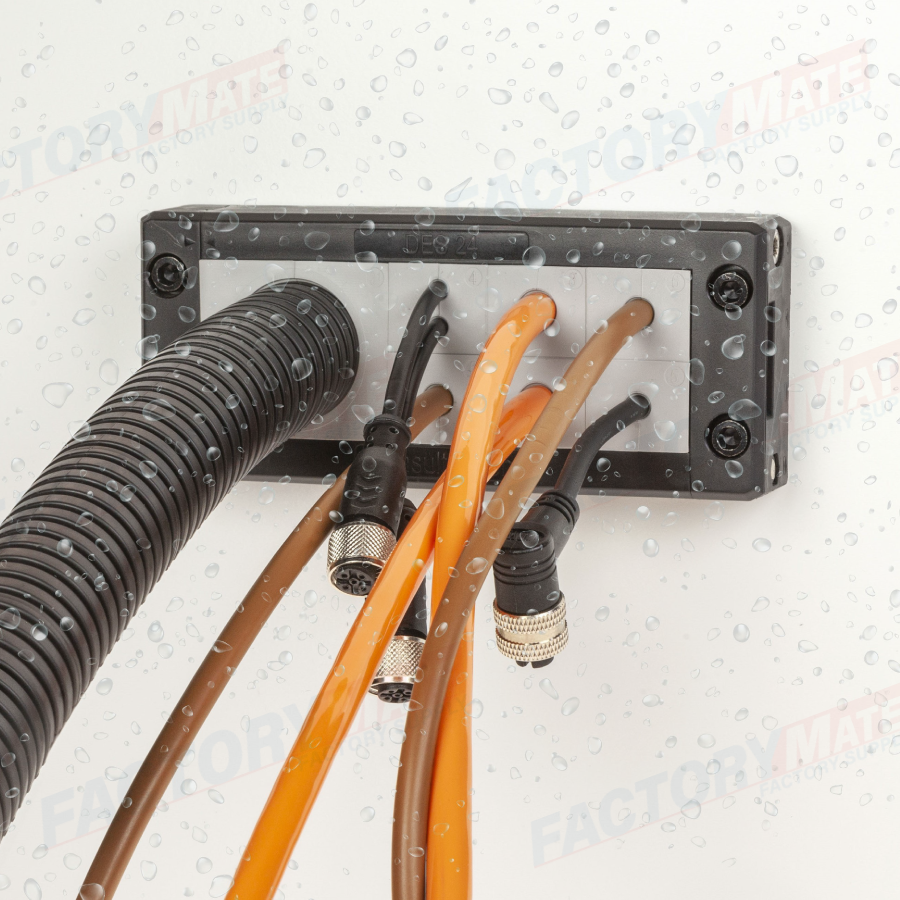

The DES 24 divisible frame allows the routing of cables with or without connectors with diameters from 2 to 35 mm thanks to the various cable grommets available. The side closure of the frame allows strain relief, dust and water protection.

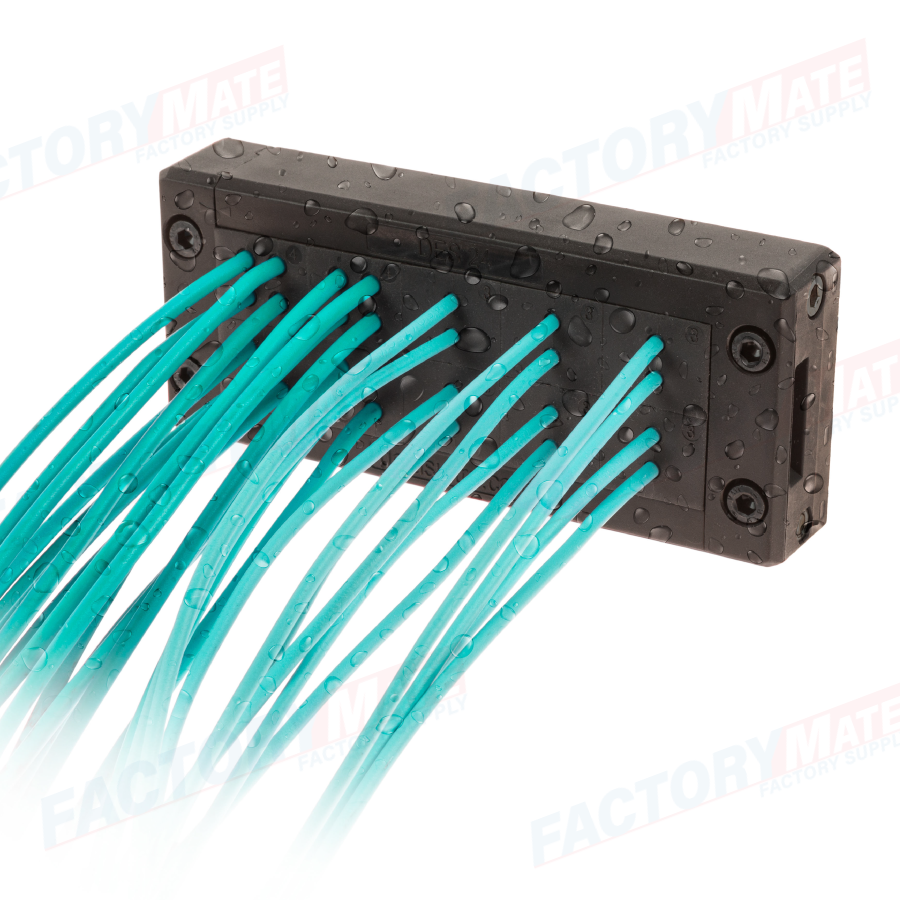

Openable grommets can be freely placed inside the frame. IP66 or NEMA4X degree of protection is achieved with any combination of grommets (single, double, quadruple, breakthrough).
The overmolded gasket and thus the complete V0 self-extinguishing capability of the system make the DES series a unique product.
Features
- Multiple configurations in the same frame and highest water protection with all the combinations of grommets.
- Frame screws in AISI304 Stainless Steel

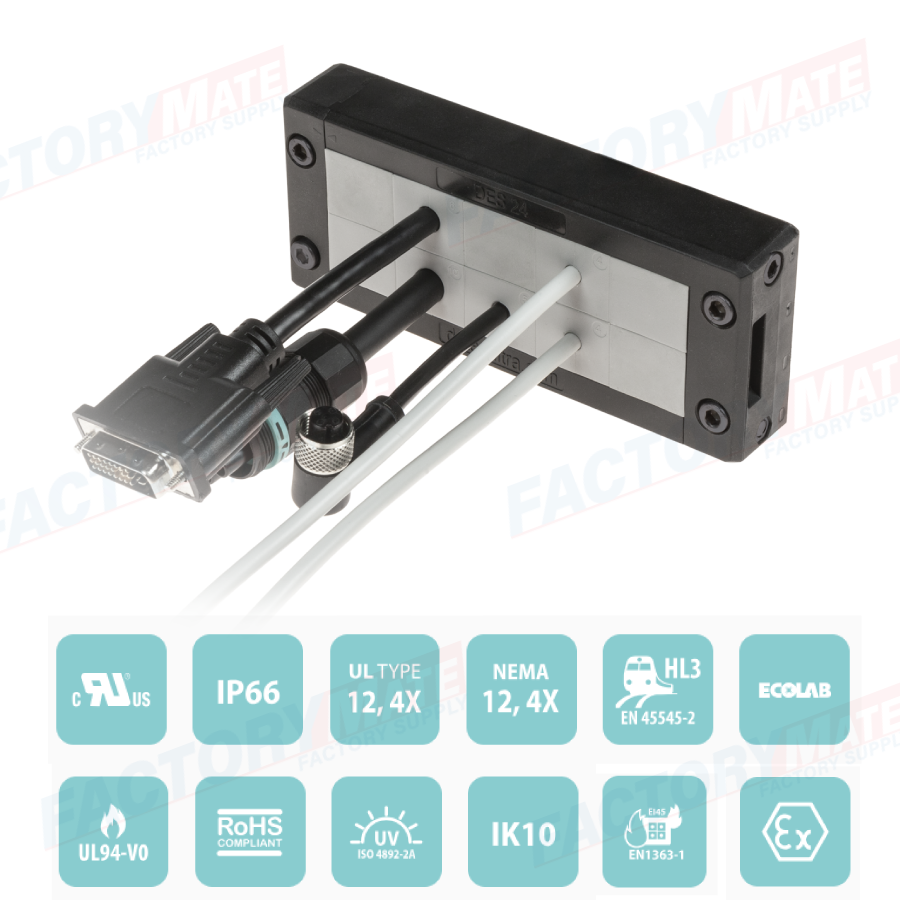

- IP66 certified, Nema 4X* with any combination of grommets
- Strain relief according to EN 62444
- Robust construction IK10
- Integrated gasket
- ATEX version on request
- Threaded inserts version on request
- halogen-free, silicone-free,flame class V0 both colors, comply with ASTM IRM 903 , UL 157
Material: PP+GF
Flammability: elf-extinguishing according to UL94-V0
Temperature: -40°C... +155°C (static)
Compatible Grommets
 SPP P |  SPP F |  SPP 2x |  SPP M |  SPP VENT |  SPP 4x |
 SPG WP |  SPP R |  SPG P |  SPG EMC |  SPG W22 |  SPG Y |
 SPG W |  SPG K |  SPG |  SPP |  SPG M |  SPP Z3 |
Fastening of the grommet strip to the board or panel is done with screws or rivets. Upon request, we supply screws for fastening, again made of stainless steel but with a black geomet finish. Alternatively, you can use the "Snap" quick coupler for greater mounting flexibility.
