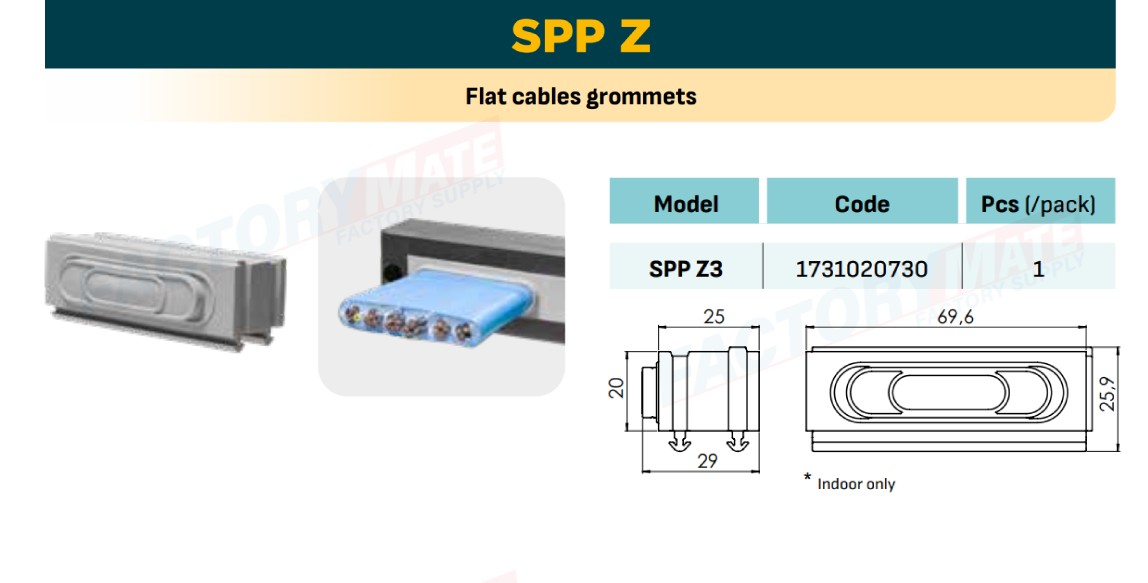

SPP Z3
Pierceable cable grommet for flat cables
The SPP Z3 is a grommet for flat cables which is designed to adapt to various cable sizes. The pierceable membrane is divided into multiple sections. It is compatible with existing DES frames, with no need for a specific frame.
The grommet is cut in the proper slots according to the width of the flat cable version that need to be used. When the cable crosses the wall it provides IP66 protection and additionally offers remarkable strain relief.
Features
- Can be used with flat cables up to 65 mm wide
- No need of special frames, compatible with all DES family frames
- IP66

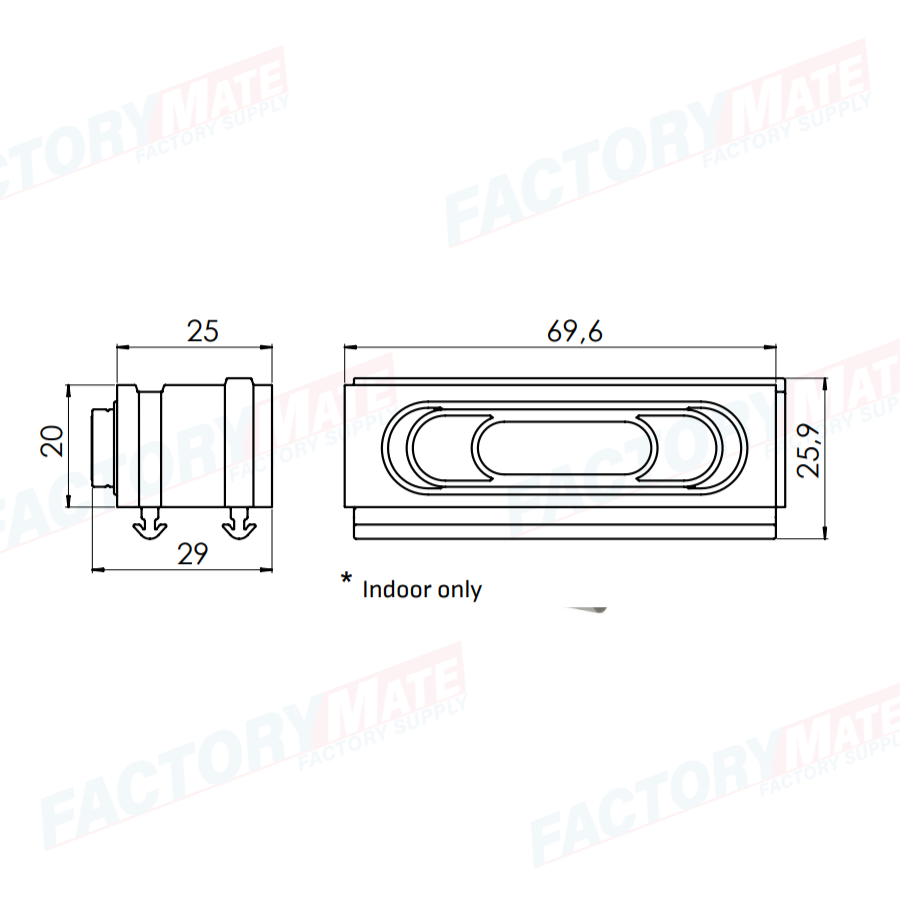

- Same size as 3 SPPs
- halogen-free, silicone-free,flame class V0 both colors, comply with ASTM IRM 903 , UL 157
Material: TPE
Flammability: self-extinguishing according to UL94-V0 (grey or black)
Temperature: -40°C... +110°C (static)
Compatible Grommets
 SPP P |  SPP F |  SPP 2x |  SPP M |  SPP VENT |  SPP 4x |
 SPG WP |  SPP R |  SPG P |  SPG EMC |  SPG W22 |  SPG Y |
 SPG W |  SPG K |  SPG |  SPP |  SPG M |  SPP Z3 |
Fastening of the grommet strip to the board or panel is done with screws or rivets. Upon request, we supply screws for fastening, again made of stainless steel but with a black geomet finish. Alternatively, you can use the "Snap" quick coupler for greater mounting flexibility.
