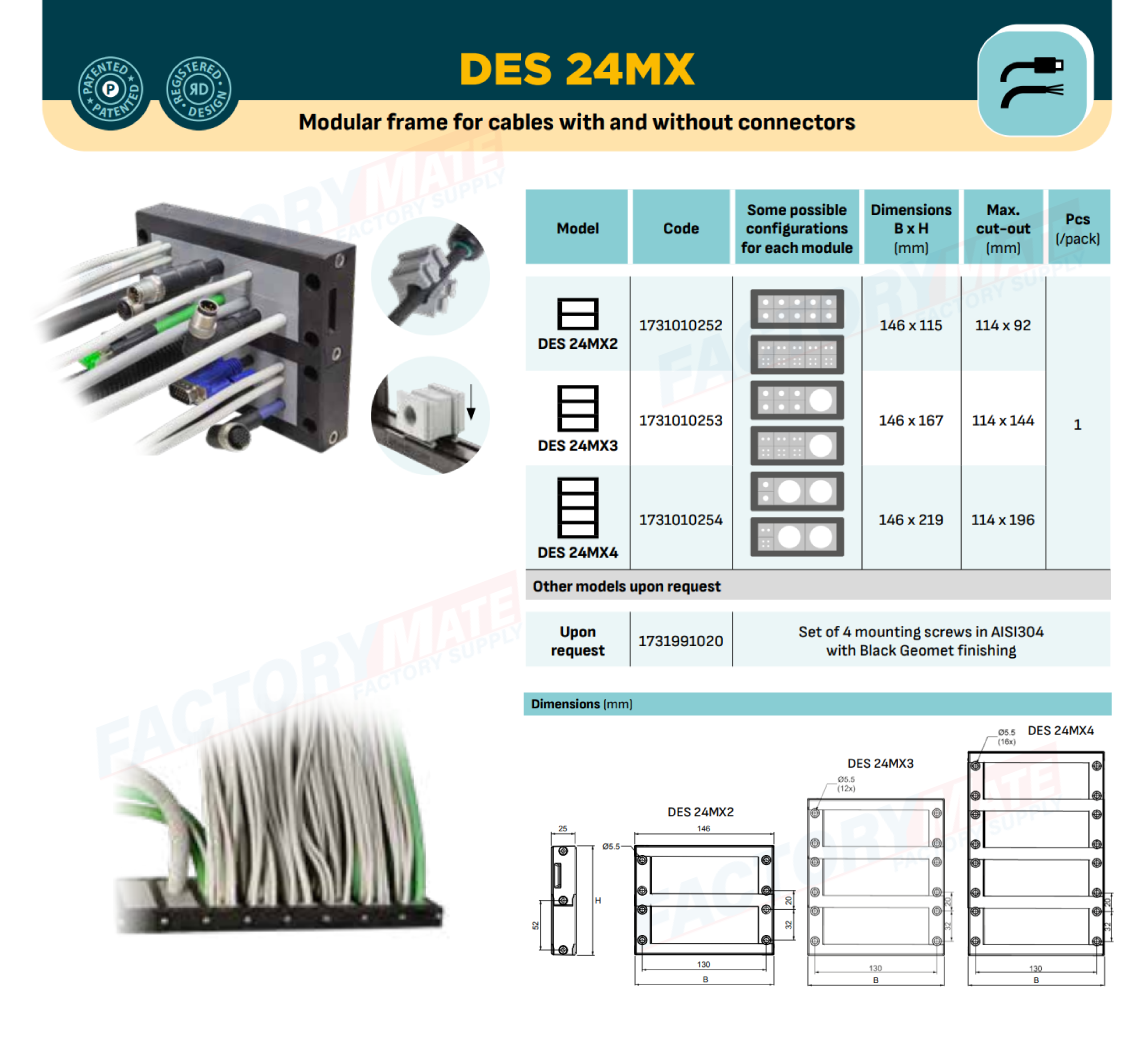

DES 24MX

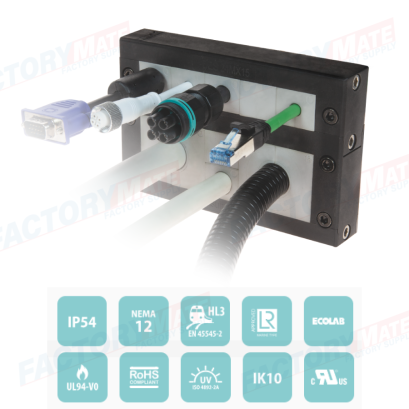

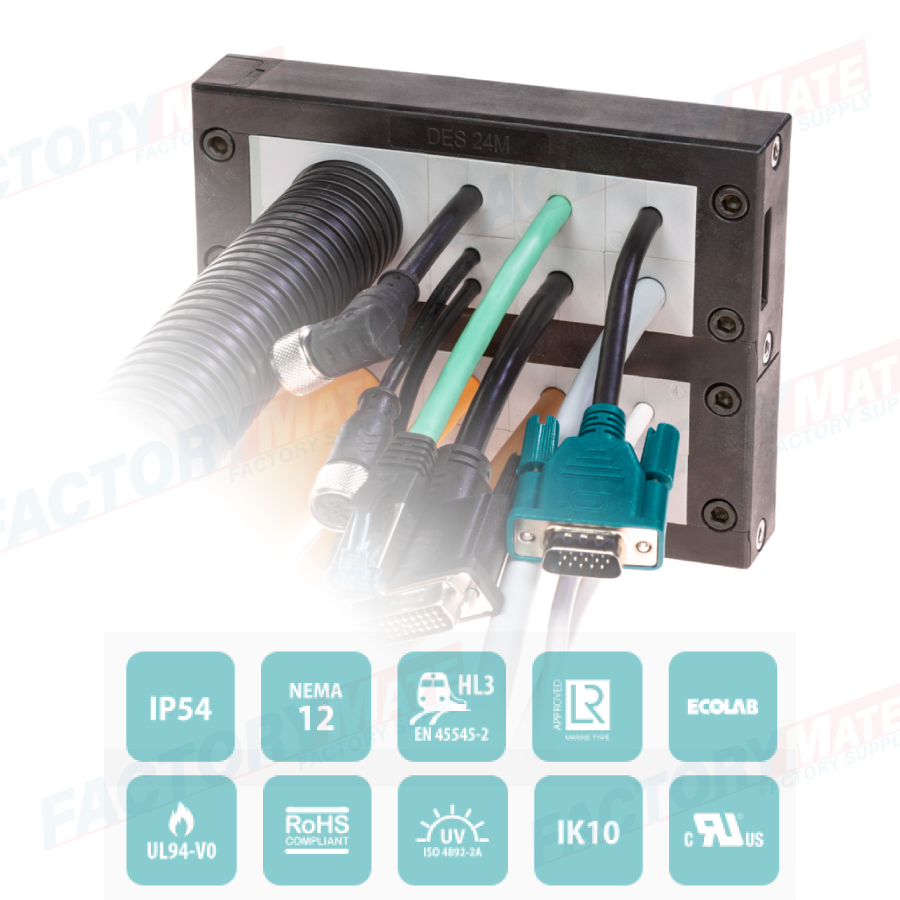

Modular frame for cables with and without connectors

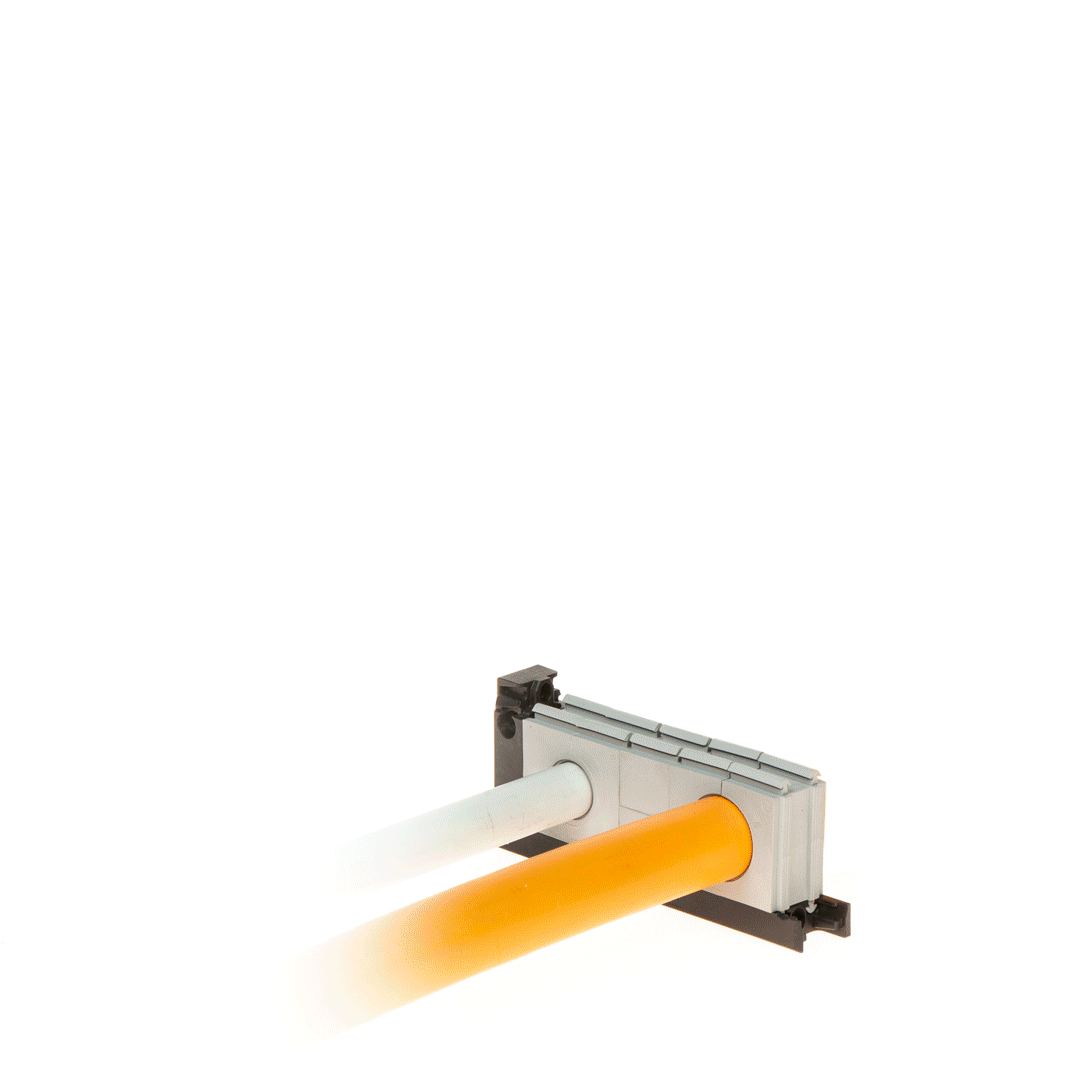

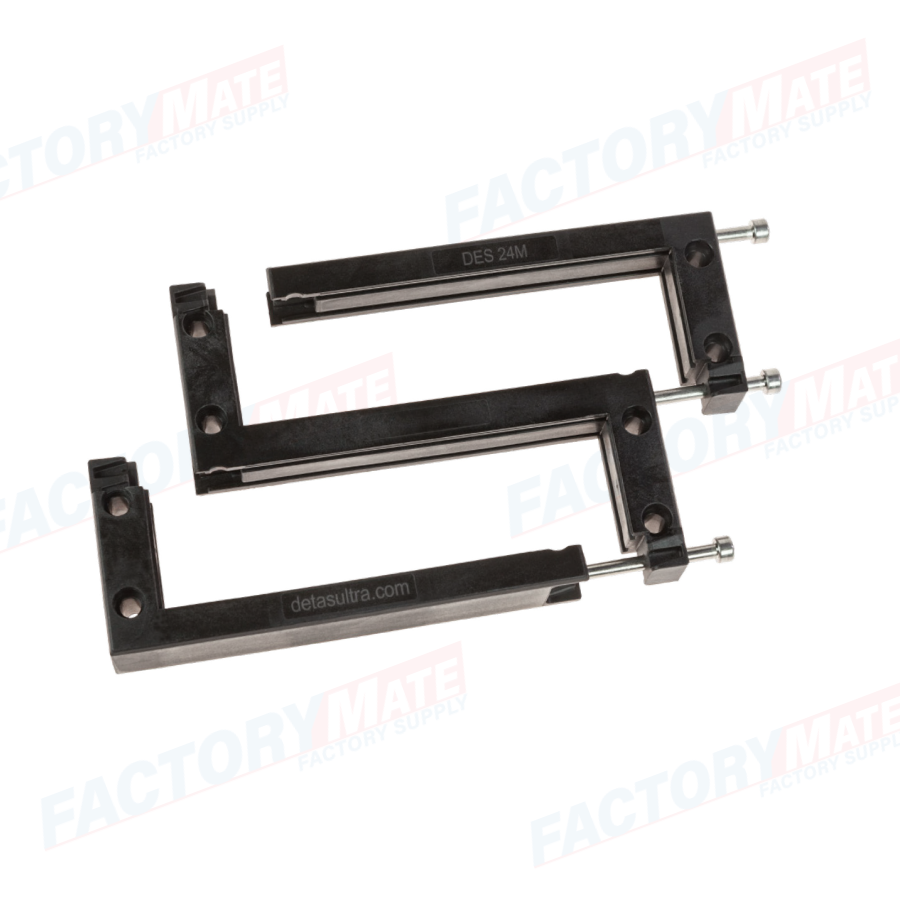

The DES 24MX splitable frames family is a modular solution for installations where a big quantity of cables need to be routed through electrical cabinets walls or machines.
Both cables with or without connector can be routed (32 for each module) and future updates can easily be organized in the cheapest and fastest way.
Features
- Modular solution
- Multiple configurations with small and large grommets
- Frame screws in AISI304 Stainless Steel
- IP54 protection
- Strain relief acc. to EN 62444
- Robust construction IK10
- External gasket included
- halogen-free, silicone-free,flame class V0 both colors, comply with ASTM IRM 903 , UL 157
Material: PP+GF
Flammability: elf-extinguishing according to UL94-V0
Temperature: -40°C... +155°C (static)
Compatible Grommets
 SPP P |  SPP F |  SPP 2x |  SPP M |  SPP VENT |  SPP 4x |
 SPG WP |  SPP R |  SPG P |  SPG EMC |  SPG W22 |  SPG Y |
 SPG W |  SPG K |  SPG |  SPP |  SPG M |  SPP Z3 |
Fastening of the grommet strip to the board or panel is done with screws or rivets. Upon request, we supply screws for fastening, again made of stainless steel but with a black geomet finish. Alternatively, you can use the "Snap" quick coupler for greater mounting flexibility.
