DES 16M
Modular frame for cables with and without connectors

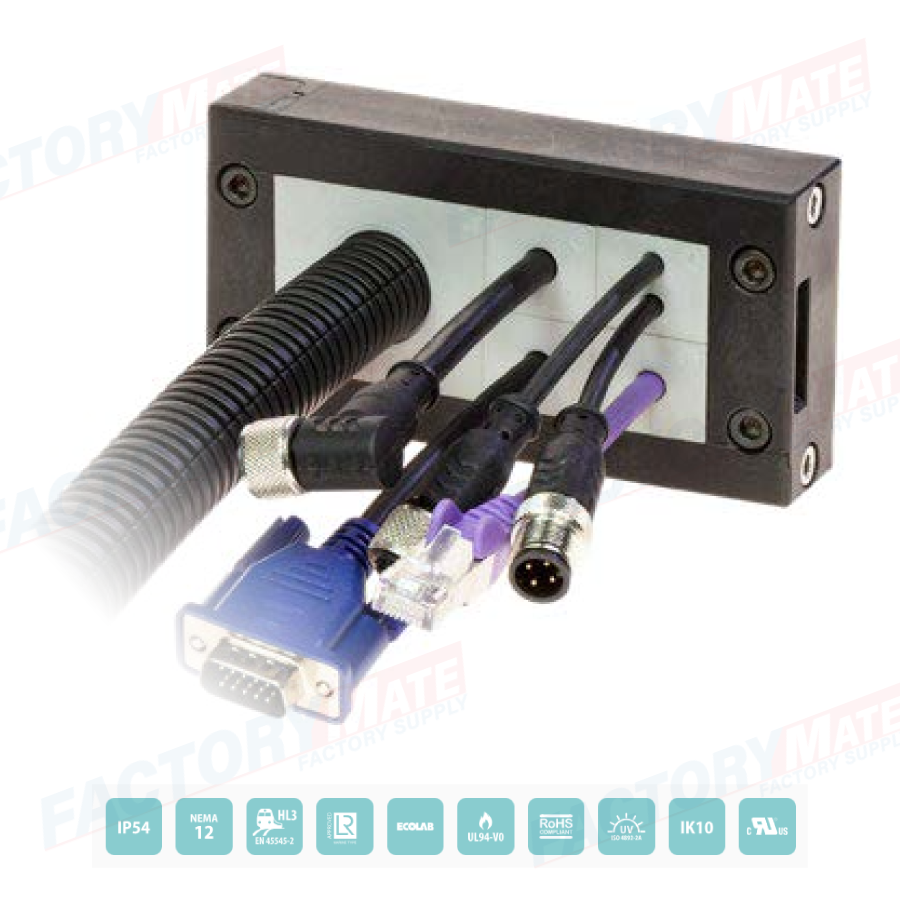

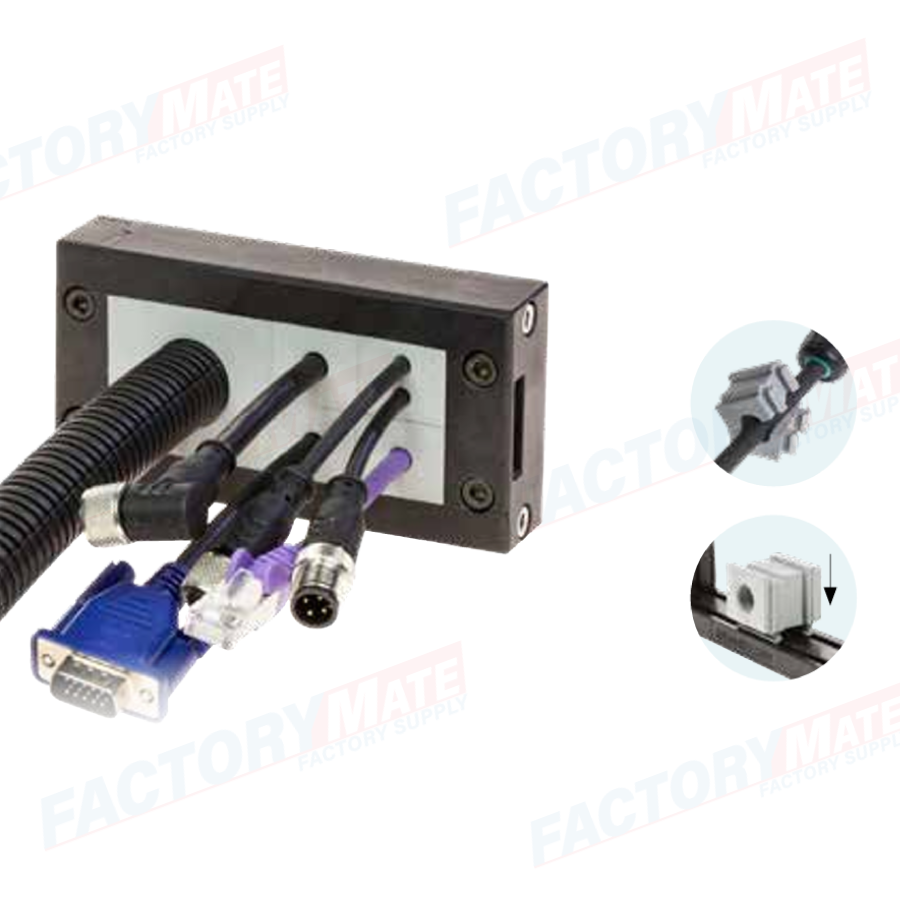

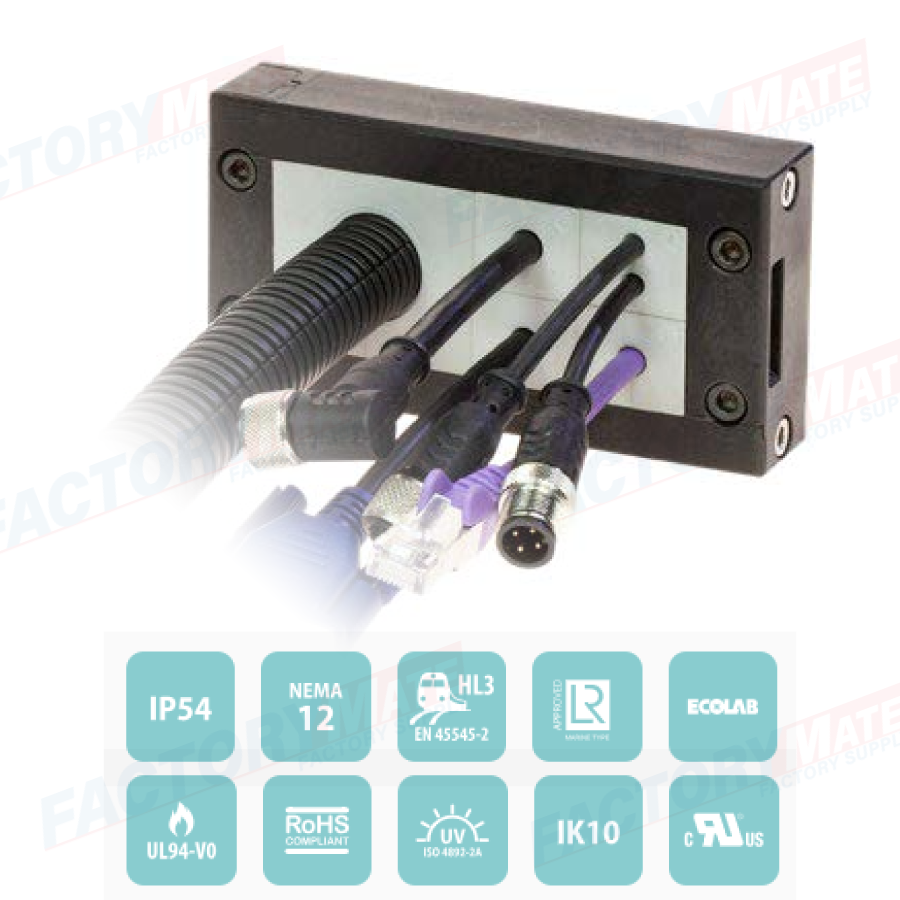

The DES 16M splittable frame allow up to 32 cables with or without connector or one or two cables up to 35mm diameter to pass through electric cabinet or machines walls. The small and big grommets can be freely positioned inside the frame.
Features
- Multiple configurations with small and large grommets
- Frame screws in AISI304 Stainless Steel
- IP54 protection
- Strain relief acc. to EN 62444
- Robust construction IK10
- External gasket included
- Threaded inserts version on request
Material: PP+GF
Flammability: self-extinguishing according to UL94-V0
Temperature: -40°C... +155°C (static)
