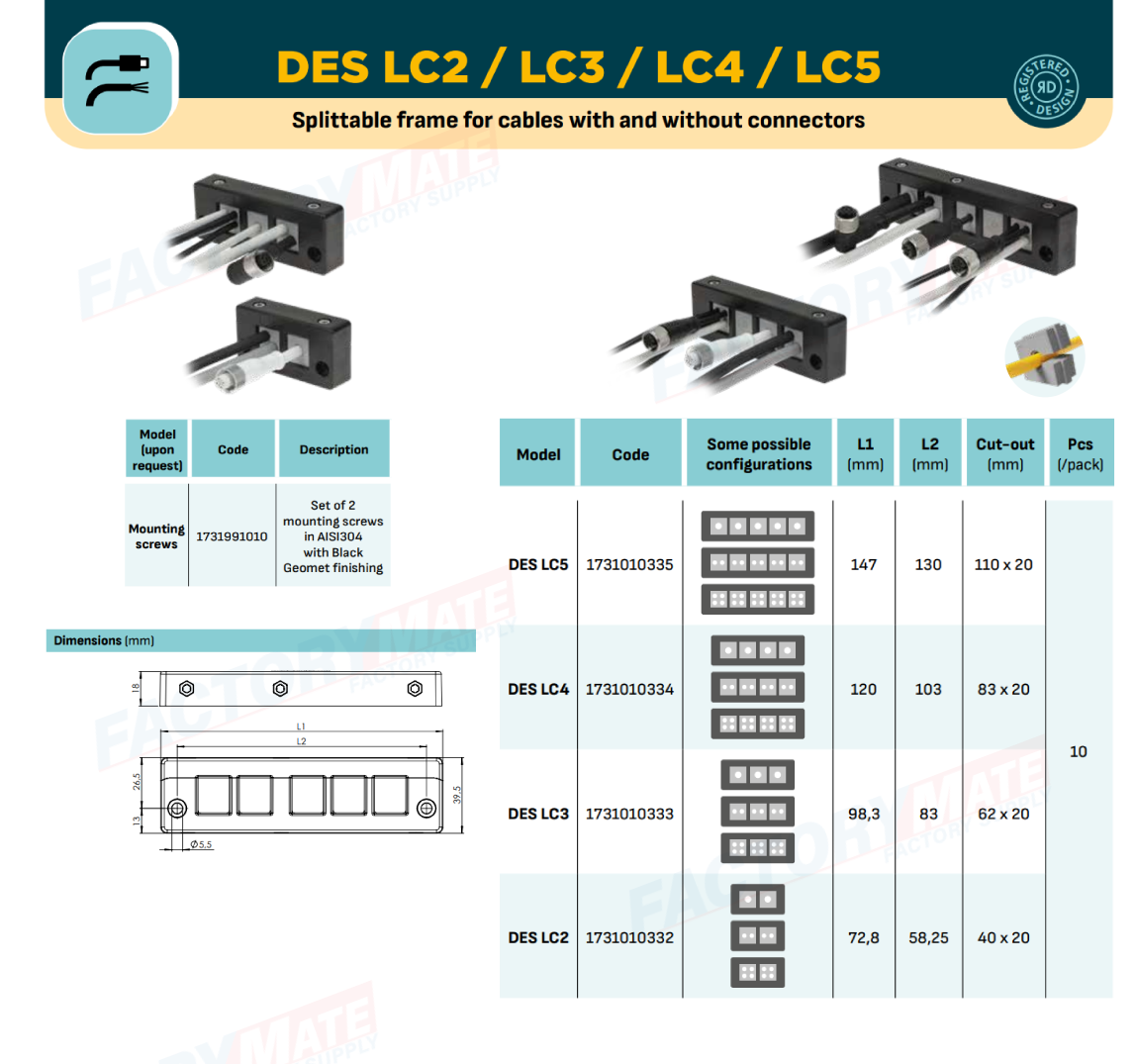

The DES LC5 divisible frame is designed to route cables, with or without connectors, with diameters from 2 to 15 mm, using the available SPC grommets.

The frame is closed with screws while the fastening nuts are overmolded. It is not necessary to mount a seal separate from the frame.

A set of 2 fastening screws in AISI304 with Black Geomet finish (code 1731991010) is available upon request.

Features
- Can be used with SPC small grommets.
- Closure with screws, overmolded nuts.
- Strain relief according to EN 62444
- Compact dimensions
- IP54 protection
- Does not require external gasket.
- Complete system according to UL94-V0

Material: PP+GF, halogen and silicone free
Flammability: self-extinguishing according to UL94-V0
Temperature: -40°C... +130°C (static)

Compatible Grommets

SPC

SPC 2x

SPC 4x

SPC K

SPC R

Fastening of the grommet strip to the board or panel is done with screws or rivets. Upon request, we supply screws for fastening, again made of stainless steel but with a black geomet finish. Alternatively, you can use the "Snap" quick coupler for greater mounting flexibility.
