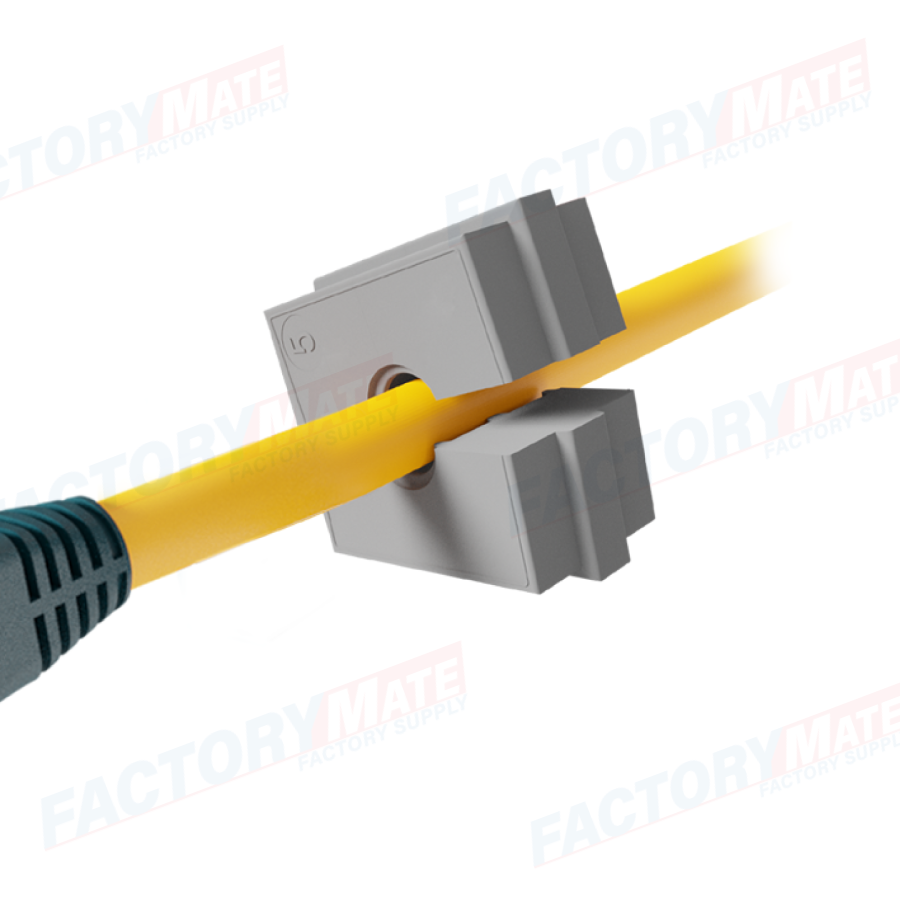

SPC series cable grommets allow a cable with diameter from 2 to 14 mm to be routed inside OSF or DES XX CLICK splitable frames.
หมวดหมู่ : ENTRY SYSTEM PRE-TERMINATED CABLES , Grommets ,
Share
SPC
Small cable grommets - single
SPC series cable grommets allow a cable with diameter from 2 to 14 mm to be routed inside OSF or DES XX CLICK splitable frames.
Double (SPC 2X) and quadruple grommets(SPC 4X) are available
Features
- Supporti passacavo per cavi intestati con diametri da 1 a 15 mm
- Long lasting product and high resistance to industrial oils.

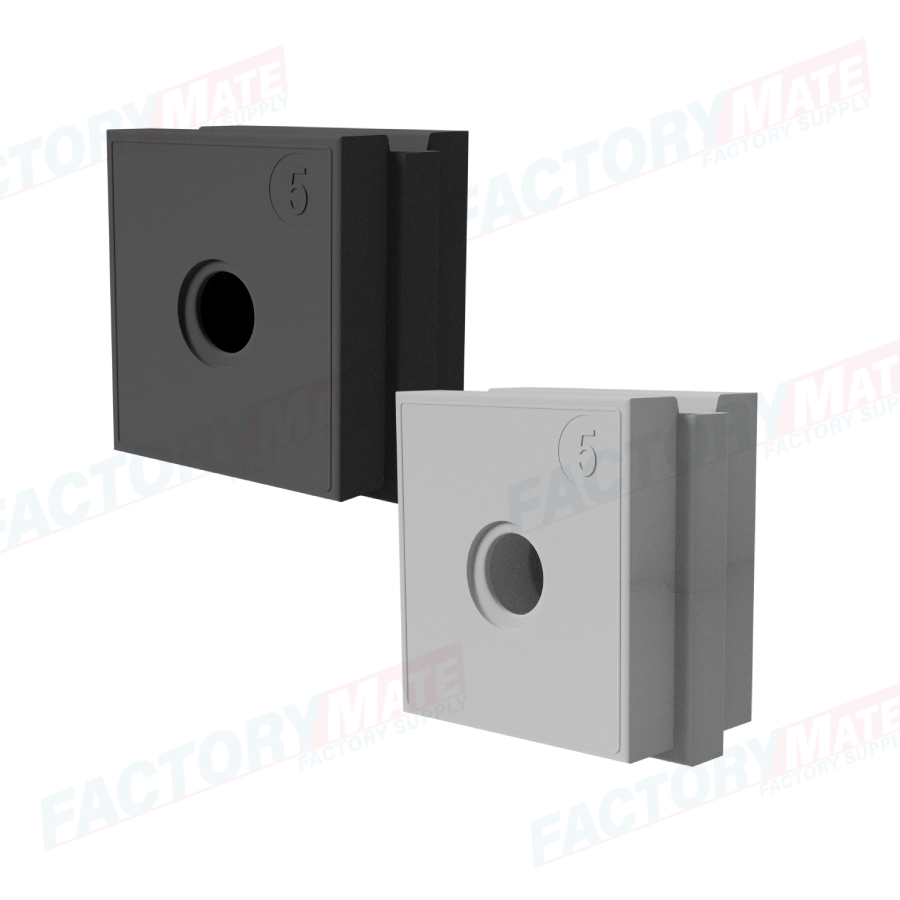

- Colours grey and black
- UL94-V0 for both colours
- halogen-free, silicone-free,flame class V0 both colors, comply with ASTM IRM 903 , UL 157
Material: TPE
Flammability: self-extinguishing according to UL94-V0 (grey or black)
Temperature: -40°C... +110°C (static)
Compatible Grommets
 SPC |  SPC 2x |  SPC 4x |  SPC K |  SPC R |  SPN |
Fastening of the grommet strip to the board or panel is done with screws or rivets. Upon request, we supply screws for fastening, again made of stainless steel but with a black geomet finish. Alternatively, you can use the "Snap" quick coupler for greater mounting flexibility.
