SPC series cable grommets allow a cable with diameter from 2 to 14 mm to be routed inside OSF or DES XX CLICK splitable frames.
หมวดหมู่ : ENTRY SYSTEM PRE-TERMINATED CABLES , Grommets ,
Share

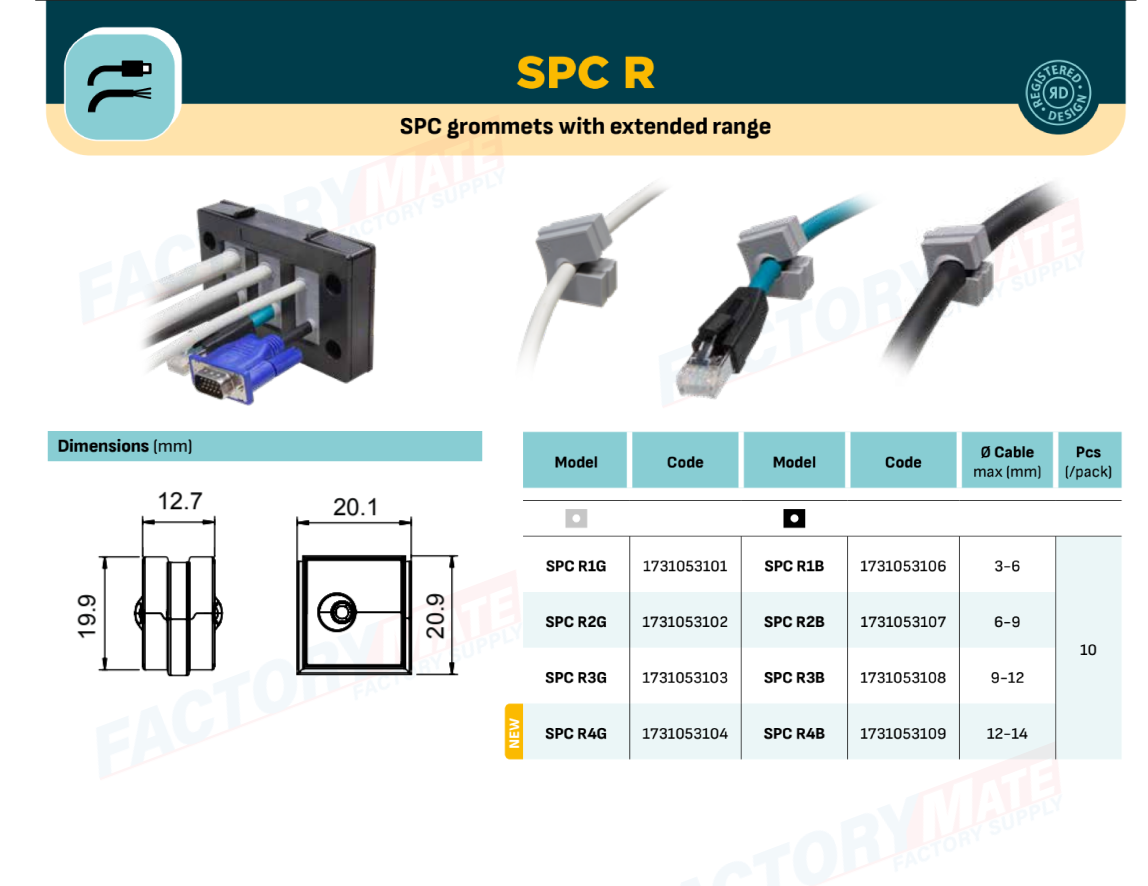

SPC R
SPC grommets with multi range

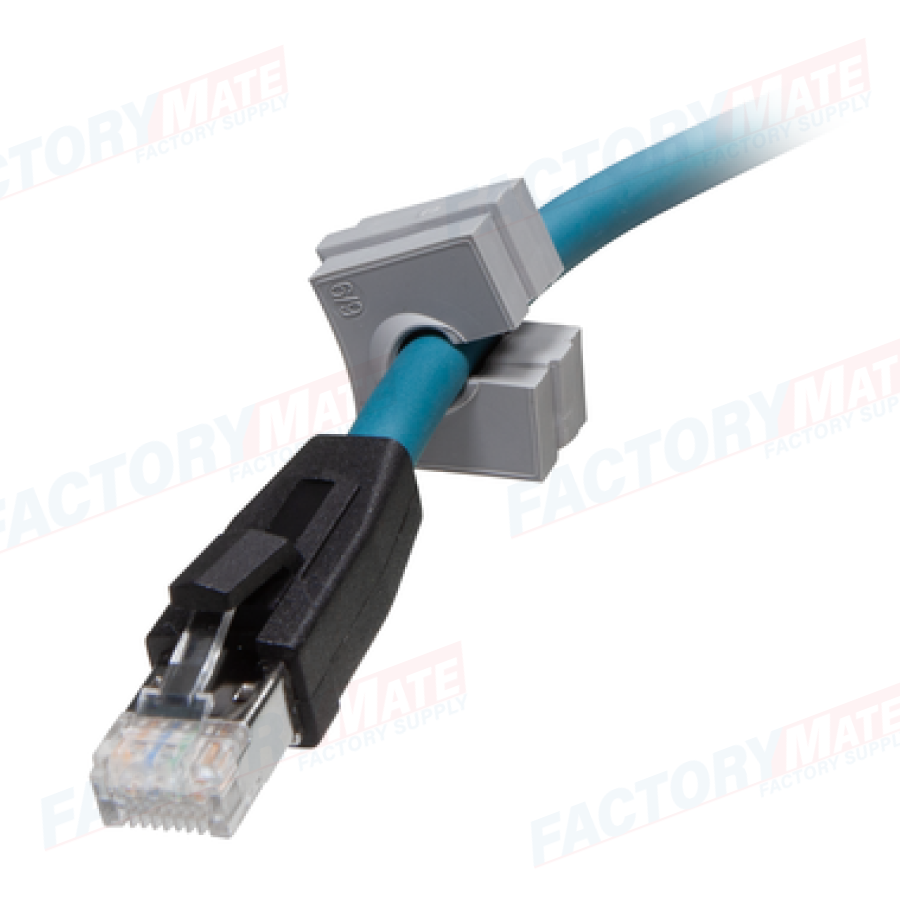

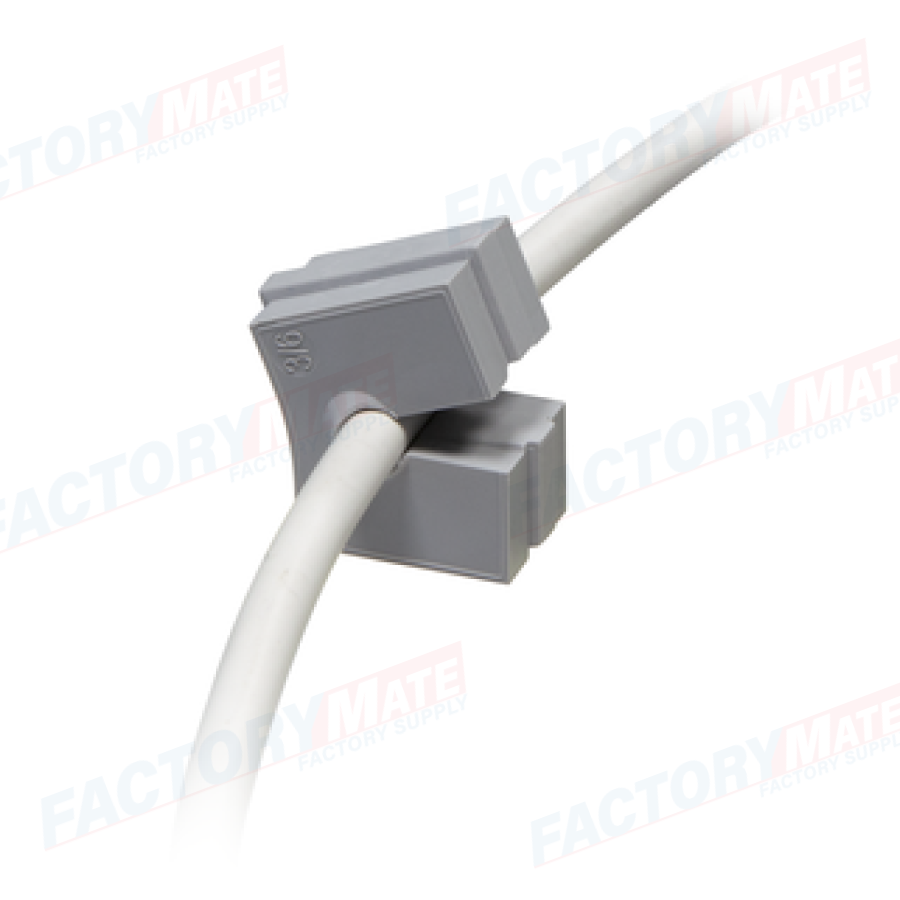

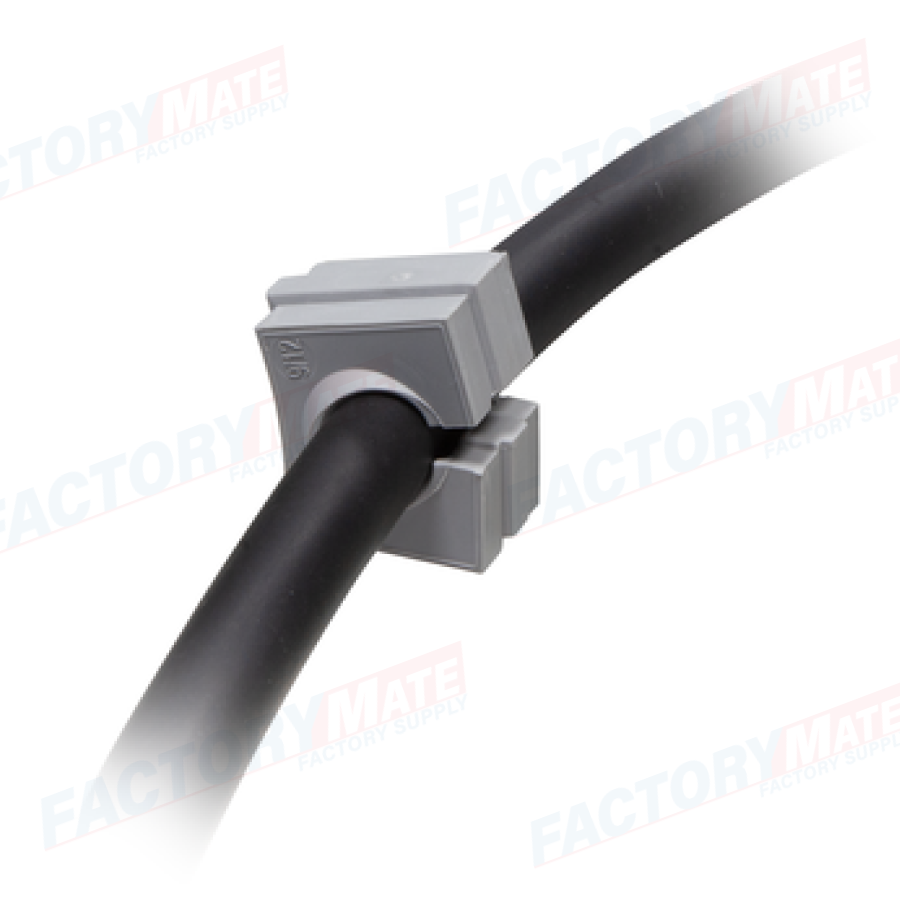

The SPC R family's multi-range openable grommets allow the use of cables with or without connectors.
Only three models cover the diameter range from 3 to 12 mm (R1...R3). The use of SPC R grommets allows the improvement of the stock management by making cable management more flexible.
Features
- Multi range grommets for cables with connector diameters from 3 to 12 mm
- IP54 protection
- Colours grey and black
- UL94-V0 for both colours
- halogen-free, silicone-free,flame class V0 both colors, comply with ASTM IRM 903 , UL 157
Material: TPE
Flammability: self-extinguishing according to UL94-V0 (grey or black)
Temperature: -40°C... +110°C (static)
Compatible Grommets
 SPC |  SPC 2x |  SPC 4x |  SPC K |  SPC R |  SPN |
Fastening of the grommet strip to the board or panel is done with screws or rivets. Upon request, we supply screws for fastening, again made of stainless steel but with a black geomet finish. Alternatively, you can use the "Snap" quick coupler for greater mounting flexibility.
