DES 16 CLICK

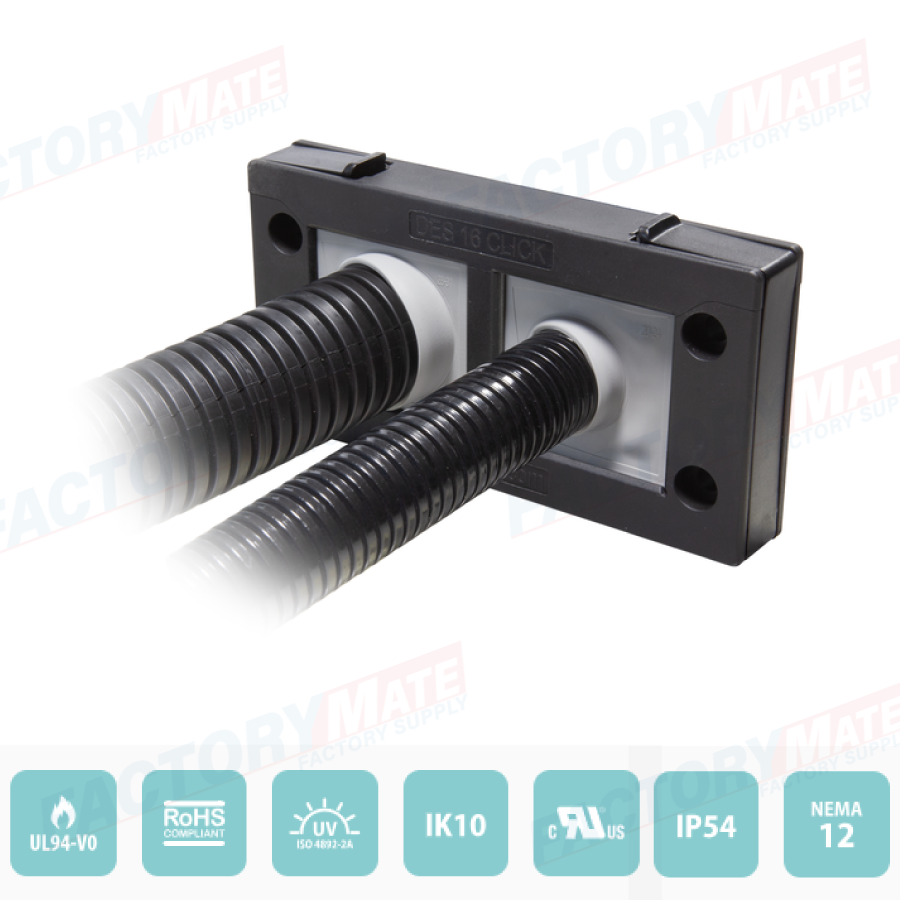

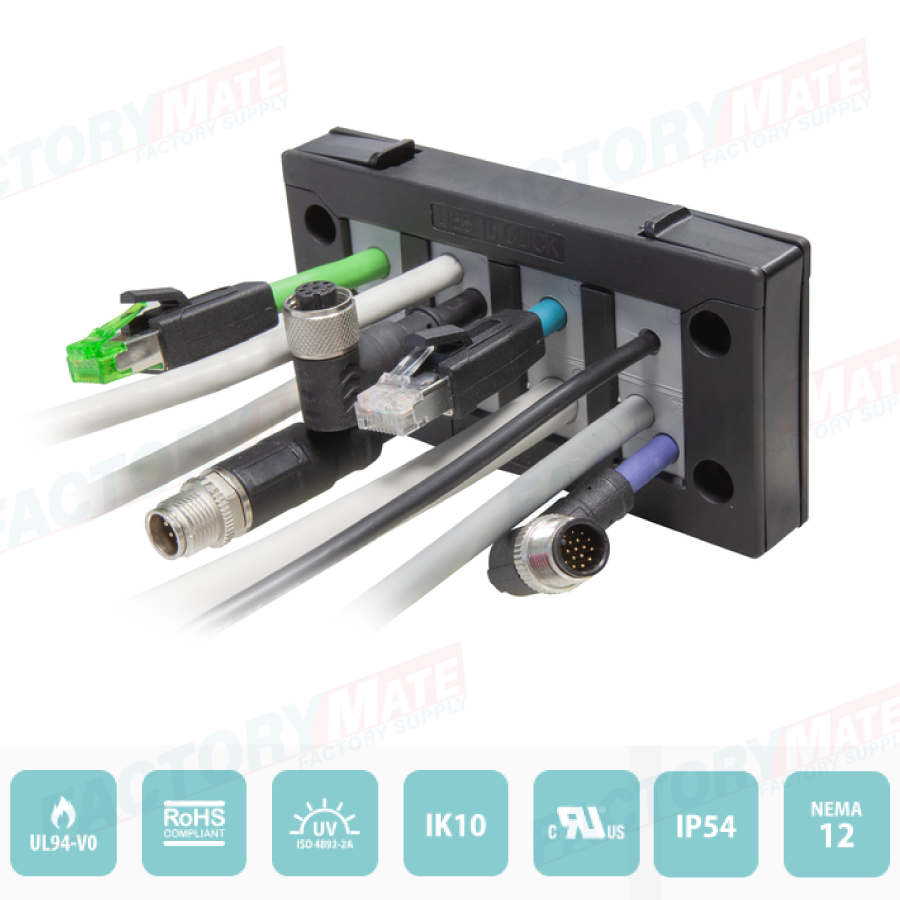

The DES 16 CLICK frame allows allows the routing of up to 32 cables with and without connectors, with diameters from 2 to 31 mm, thanks to the various grommets available.
The frame is closed with two lateral hooks that compress the grommets and ensure a mechanical and fluid seal.

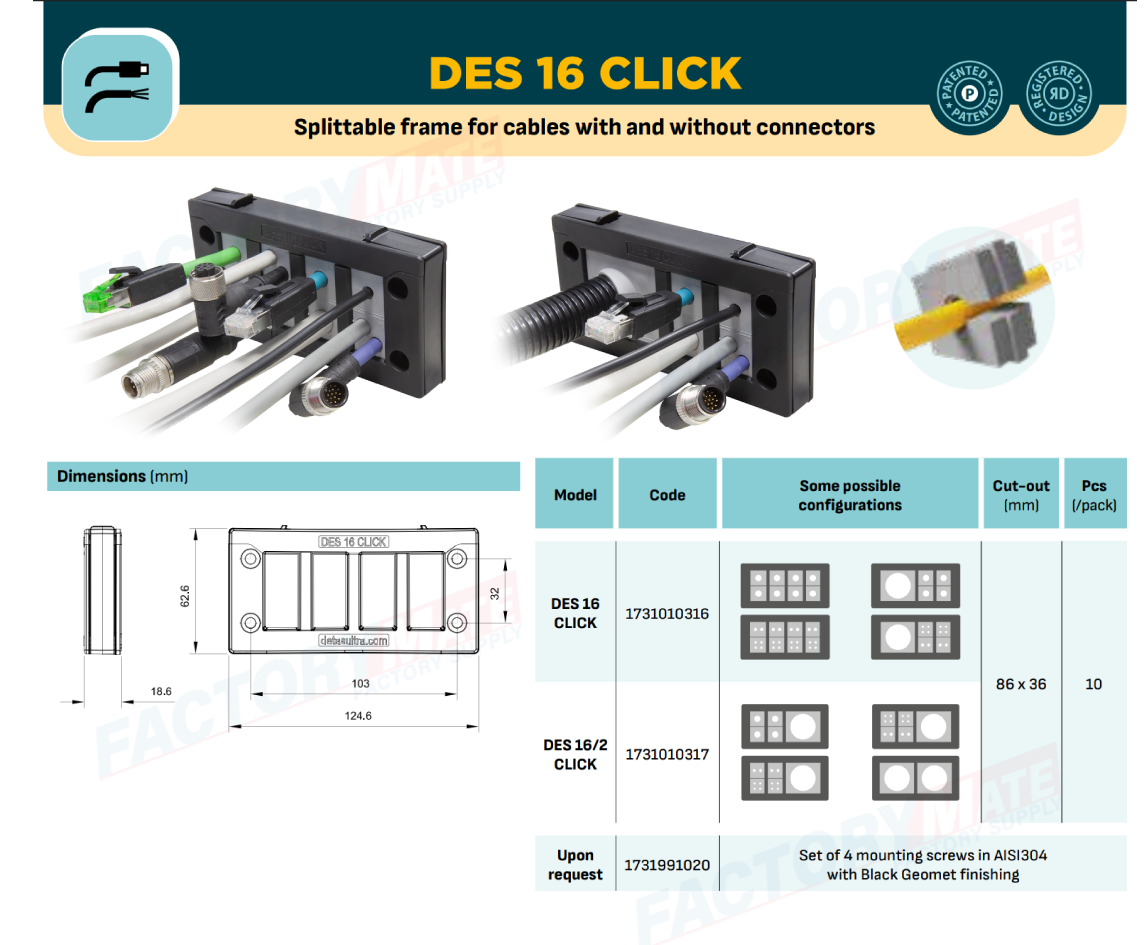

The frame allows to install 8 small grommets or 4 small grommets and one large grommet.
Features
- Can be used with small and large grommets
- Without screws, snap closure
- Strain relief according to EN 62444
- Compact dimensions
- IP54 protection
- External gasket included
- Threaded inserts version on request
- UL94-V0 for black and grey grommets
- halogen-free, silicone-free,flame class V0 both colors, comply with ASTM IRM 903 , UL 157
Material: PC+GF
Flammability: self-extinguishing according to UL94-V0
Temperature: -40°C... +155°C (static)
Compatible Grommets
 SPC |  SPC 2x |  SPC 4x |  SPL |  SPL M |
Fastening of the grommet strip to the board or panel is done with screws or rivets. Upon request, we supply screws for fastening, again made of stainless steel but with a black geomet finish. Alternatively, you can use the "Snap" quick coupler for greater mounting flexibility.
