OSF50 and OSF63 divisible cable glands have metric threads and are particularly suitable for use with cables with connectors.
หมวดหมู่ : ENTRY SYSTEM PRE-TERMINATED CABLES , OSF splitable Cable Glands ,
Share

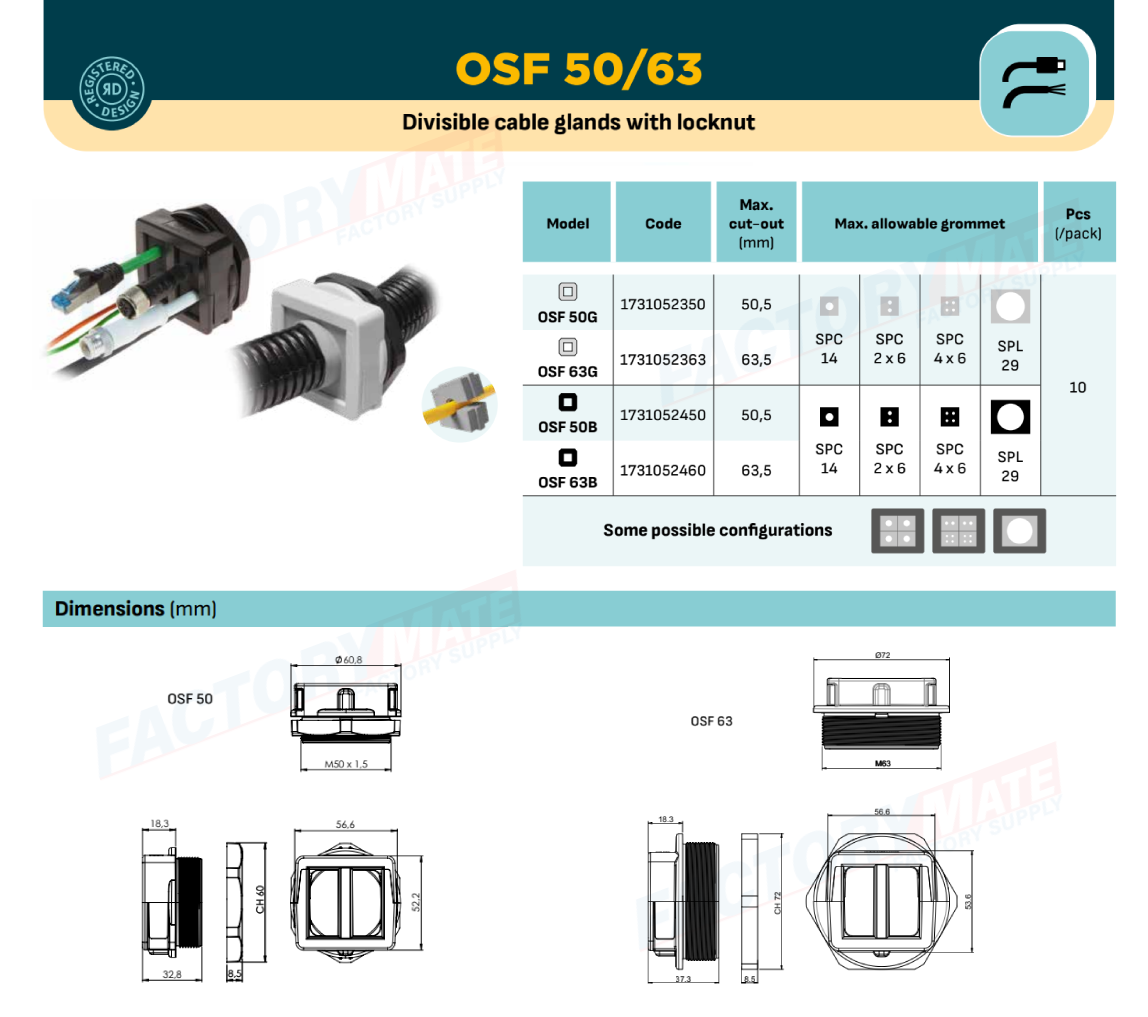

OSF50 & OSF63
Splitable cable glands
OSF50 and OSF63 divisible cable glands have metric threads and are particularly suitable for use with cables with connectors.
The same frame can be equipped with 4 small or multiple SPC grommets for cables with diameter from 2 to 14 mm or 1 large SPL grommet for cables from 12 to 29.
Features
- Can be used with small and large grommets
- M50 metric thread
- Without screws, snap closure
- IP54 protection
- Loc nut and gasket included
- Available colors: grey and blac
- halogen-free, silicone-free,flame class V0 both colors, comply with ASTM IRM 903 , UL 157
Material: PC
Flammability: self-extinguishing according to UL94-V0
Temperature: -40°C… +130°C (static)
Compatible Grommets
 SPC |  SPC 2x |  SPC 4x |  SPL |  SPL M |
Fastening of the grommet strip to the board or panel is done with screws or rivets. Upon request, we supply screws for fastening, again made of stainless steel but with a black geomet finish. Alternatively, you can use the "Snap" quick coupler for greater mounting flexibility.
