The piercable multiple grommets are part of the SPP M series and allow a number of cables without connectors with a maximum diameter of 6 mm to be routed inside the DES series divisible frames.
หมวดหมู่ : ENTRY SYSTEM PRE-TERMINATED CABLES , Grommets ,
Share

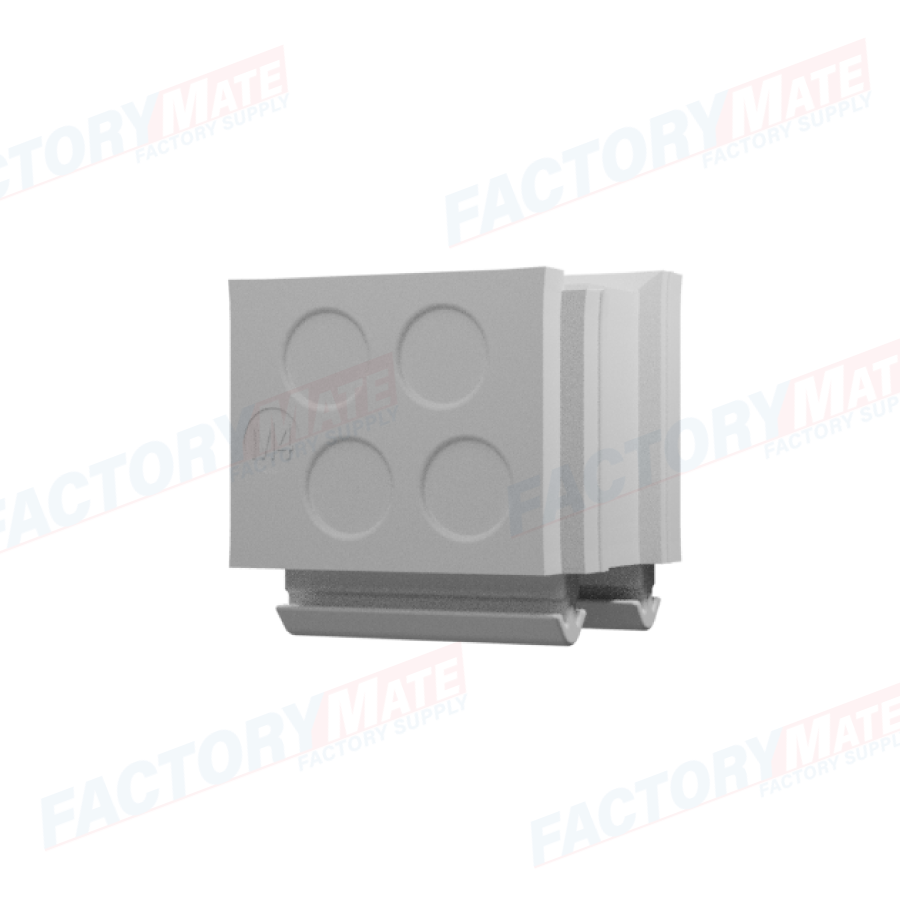

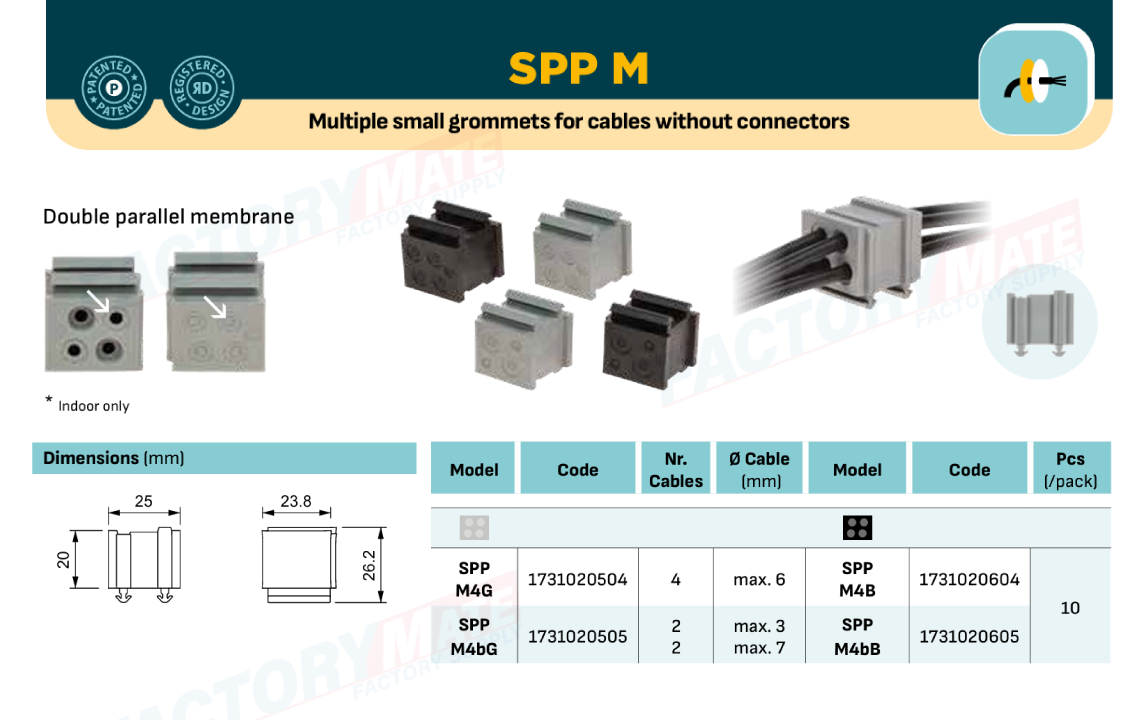

SPP M
Pierceable small grommets
Cable grommets are used to ensure highest IP protection and strain relief in the splitable frames and split cable glands.
The system patented by Detas allows the grommets (inserts) to be installed in two ways: snap‑on or slide‑on.
In both configurations, the double guide at the base of the rubber is used, ensuring excellent stability and holding force for the cable guide, even when one or more cables are already mounted inside it.
The elastomeric material used for the production guarantees the ideal elasticity. They are available in grey and black, in both cases self-extinguishing according to UL94 V0.
Features

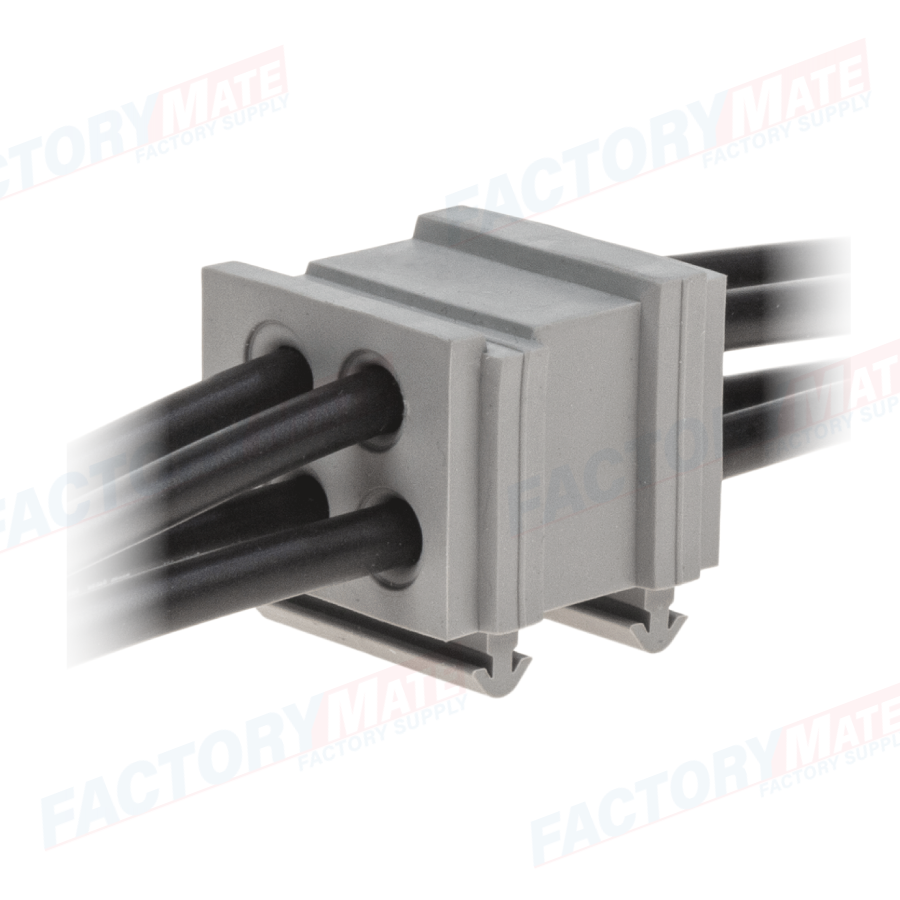

- Pierceable blind multi-grommets for cables without connectors
- For up to 4 cables max 6 mm diameter
- Colours grey and black
- UL94-V0 for both colours
- Halogen-free, silicone-free,flame class V0 both colors, comply with ASTM IRM 903 , UL 157
Material: TPE
Flammability: self-extinguishing according to UL94-V0 (grey or black)
Temperature: -40°C... +110°C (static)
Compatible Grommets
 SPP P |  SPP F |  SPP 2x |  SPP M |  SPP VENT |  SPP 4x |
 SPG WP |  SPP R |  SPG P |  SPG EMC |  SPG W22 |  SPG Y |
 SPG W |  SPG K |  SPG |  SPP |  SPGM |
Fastening of the grommet strip to the board or panel is done with screws or rivets. Upon request, we supply screws for fastening, again made of stainless steel but with a black geomet finish. Alternatively, you can use the "Snap" quick coupler for greater mounting flexibility.
