Allow a single or multiple small grommets to be mounted within them, and are used to avoid the use of blind grommets or if you want to reduce the number of grommets used.
หมวดหมู่ : ENTRY SYSTEM PRE-TERMINATED CABLES , Grommets ,
Share
SPG Y

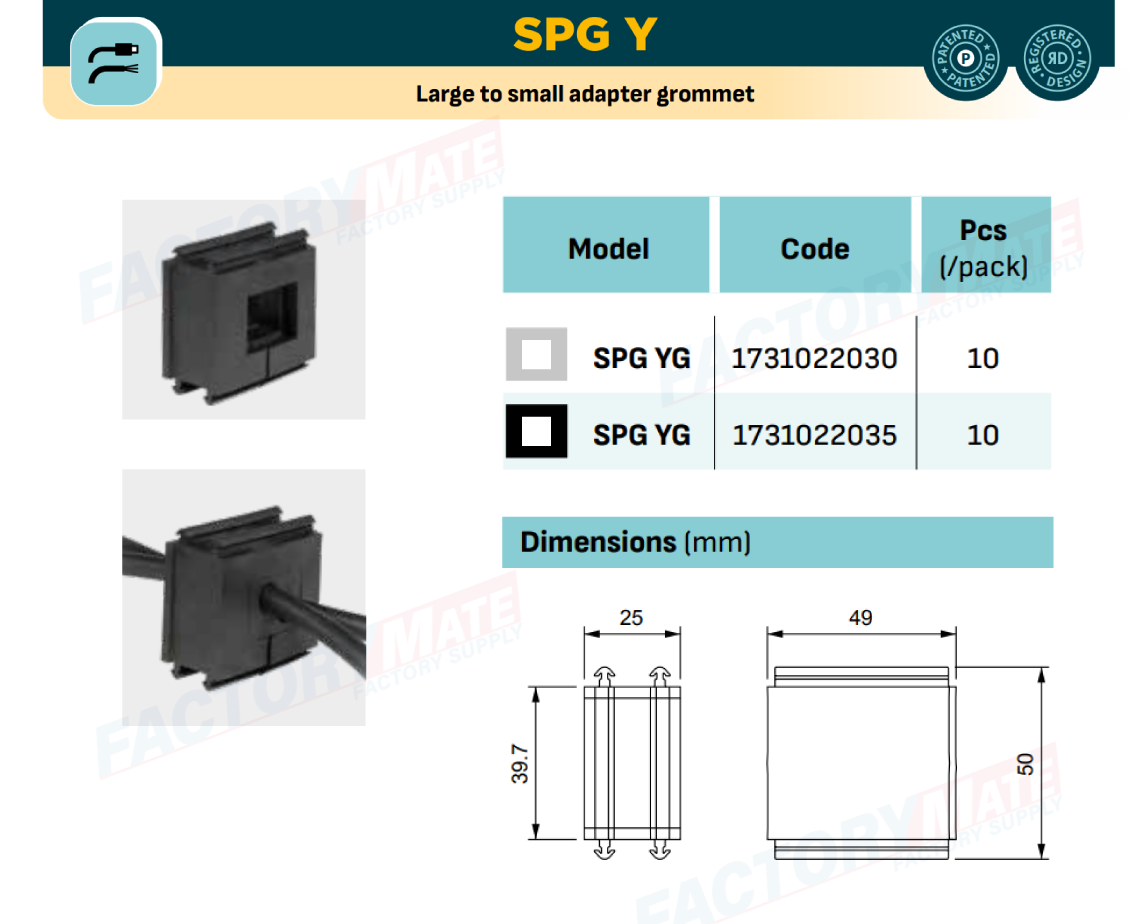

Large to small adapter grommet

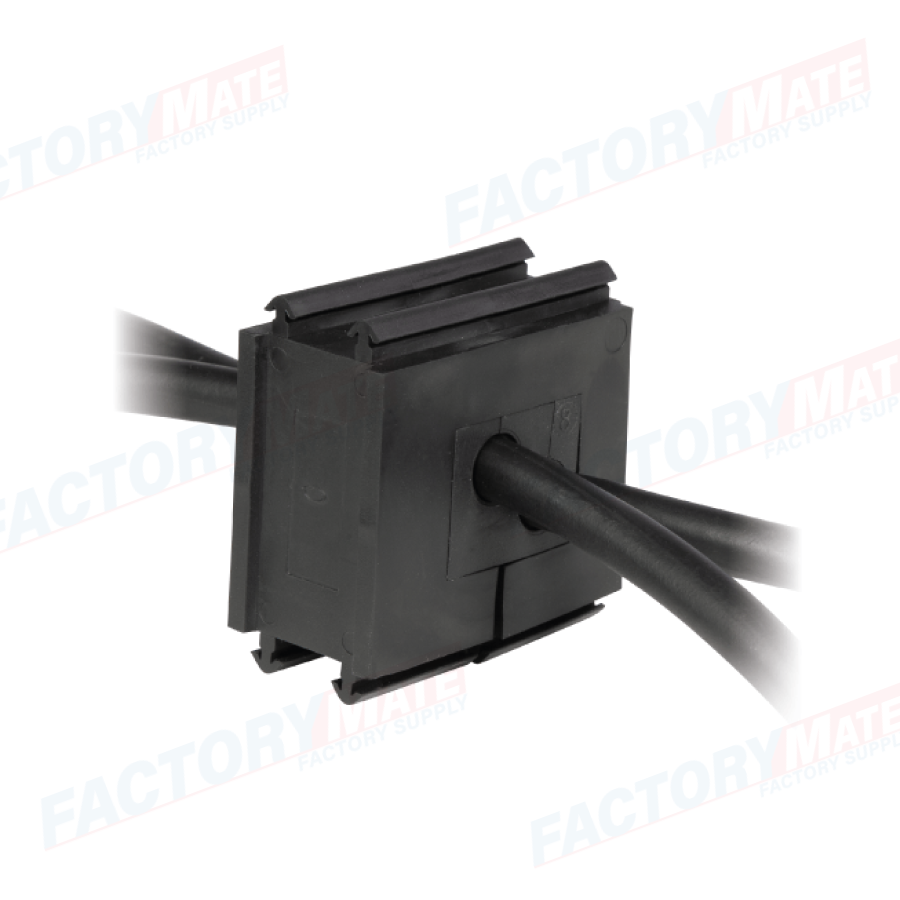

SPG Y-series grommets are large grommets that allow a single or multiple small grommets to be mounted within them, and are used to avoid the use of blind grommets or if you want to reduce the number of grommets used.
Features
- Large grommet adapter for using a single small grommet
- Colours grey and black
- UL94-V0 for both colours
- halogen-free, silicone-free,flame class V0 both colors, comply with ASTM IRM 903 , UL 157
Material: TPE
Flammability: self-extinguishing according to UL94-V0 (grey or black)
Temperature: -40°C... +110°C (static)
Compatible Grommets
 SPP P |  SPP F |  SPP 2x |  SPP M |  SPP VENT |  SPP 4x |
 SPG WP |  SPP R |  SPG P |  SPG EMC |  SPG W22 |  SPG Y |
 SPG W |  SPG K |  SPG |  SPP |  SPG M |
Fastening of the grommet strip to the board or panel is done with screws or rivets. Upon request, we supply screws for fastening, again made of stainless steel but with a black geomet finish. Alternatively, you can use the "Snap" quick coupler for greater mounting flexibility.
