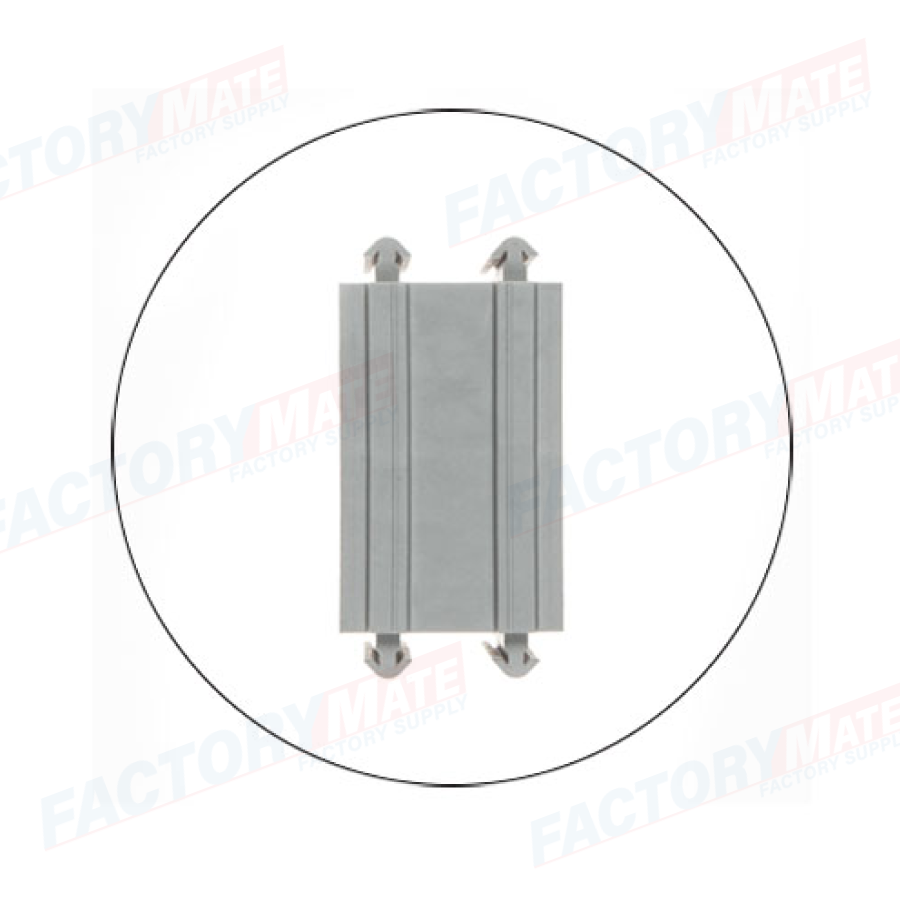

SPG M Large grommets for cables without connectors - double membrane

SPG M
Large grommets for cables without connectors - double membrane

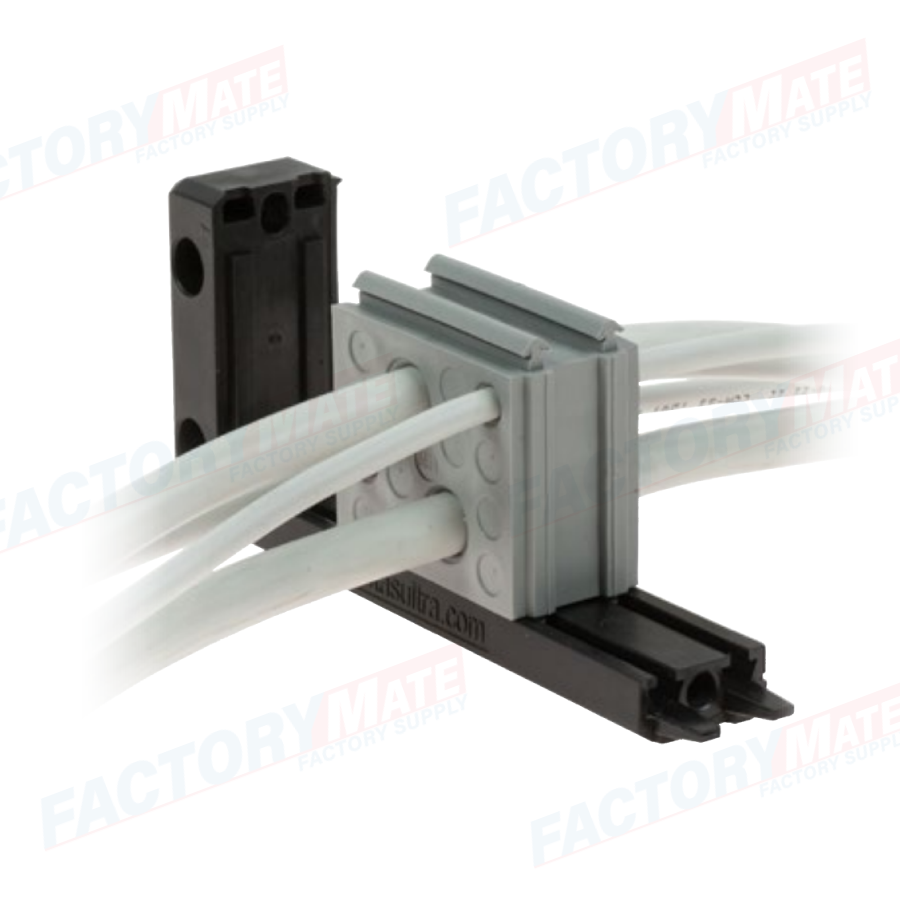

Cable grommets are used to ensure highest IP protection and strain relief in the  splitable frames and split cable glands.

The system patented by Detas allows the grommets (inserts) to be installed in two ways: snap‑on or slide‑on. In both configurations, the double guide at the base of the rubber is used, ensuring excellent stability and holding force for the cable guide, even when one or more cables are already mounted inside it.

The elastomeric material used for the production guarantees the ideal elasticity. They are available in grey and black, in both cases self-extinguishing according to UL94 V0.

Features
- Pierceable blind multi-grommets for cables without connectors
- For large number cables without connectors

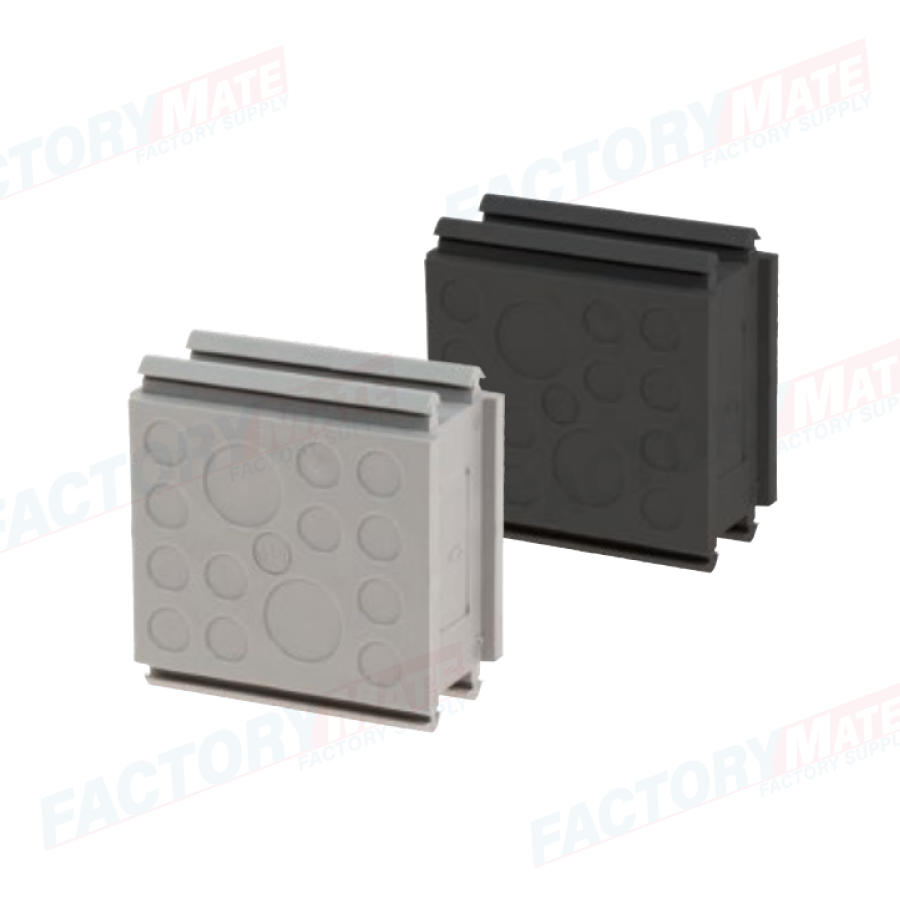

- Colours grey and black
- UL94-V0 for both colours
- halogen-free, silicone-free,flame class V0 both colors, comply with ASTM IRM 903 , UL 157

Material: TPE
Flammability: self-extinguishing according to UL94-V0 (grey or black)
Temperature: -40°C... +110°C (static)



Compatible Grommets

SPP P	SPP F	SPP 2x	SPP M	SPP VENT	SPP 4x
SPG WP	SPP R	SPG P	SPG EMC	SPG W22	SPG Y
SPG W	SPG K	SPG	SPP	SPG M

Fastening of the grommet strip to the board or panel is done with screws or rivets. Upon request, we supply screws for fastening, again made of stainless steel but with a black geomet finish. Alternatively, you can use the "Snap" quick coupler for greater mounting flexibility.
