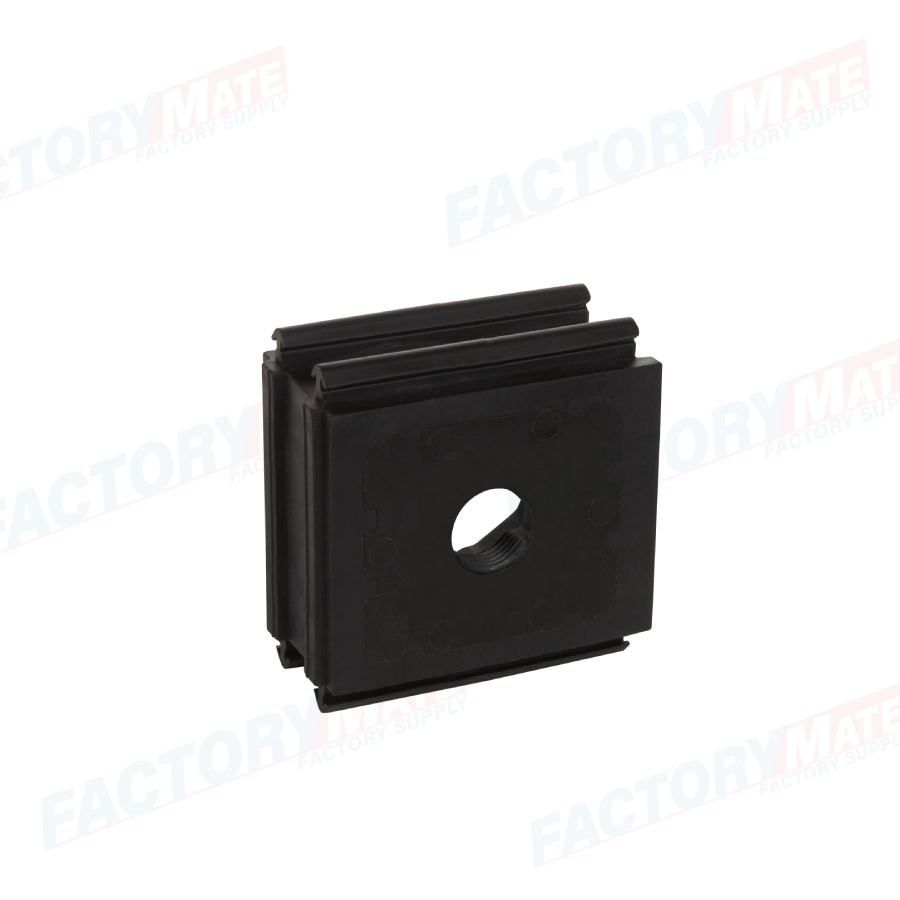

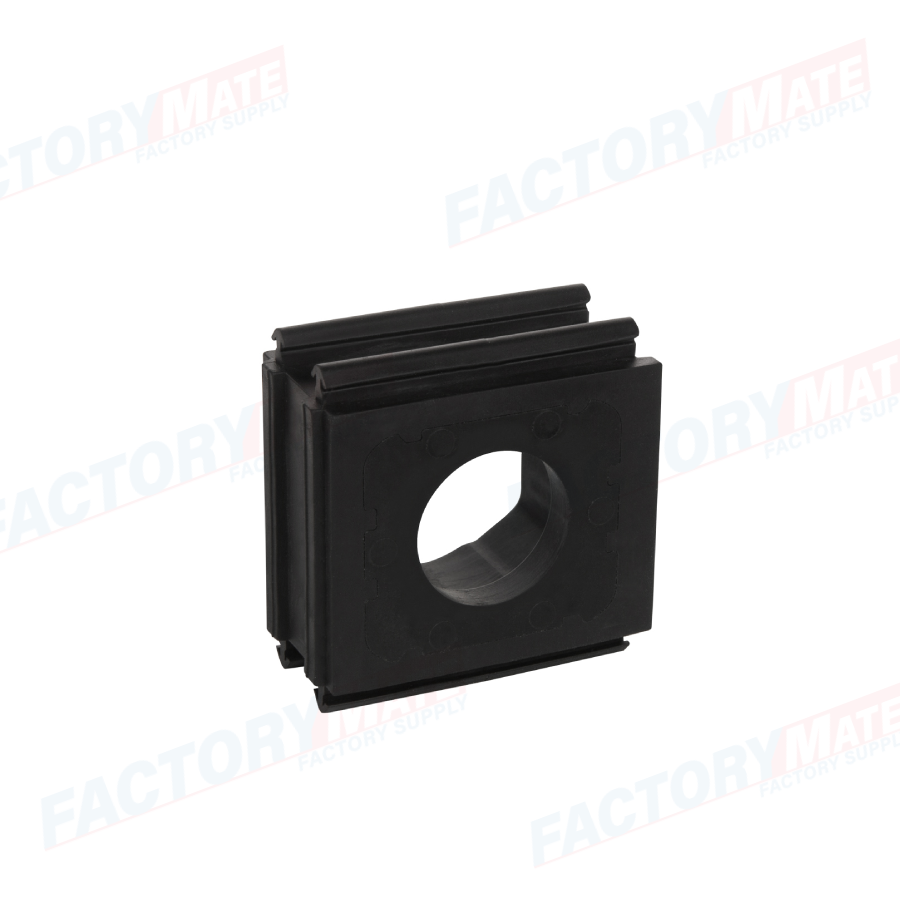

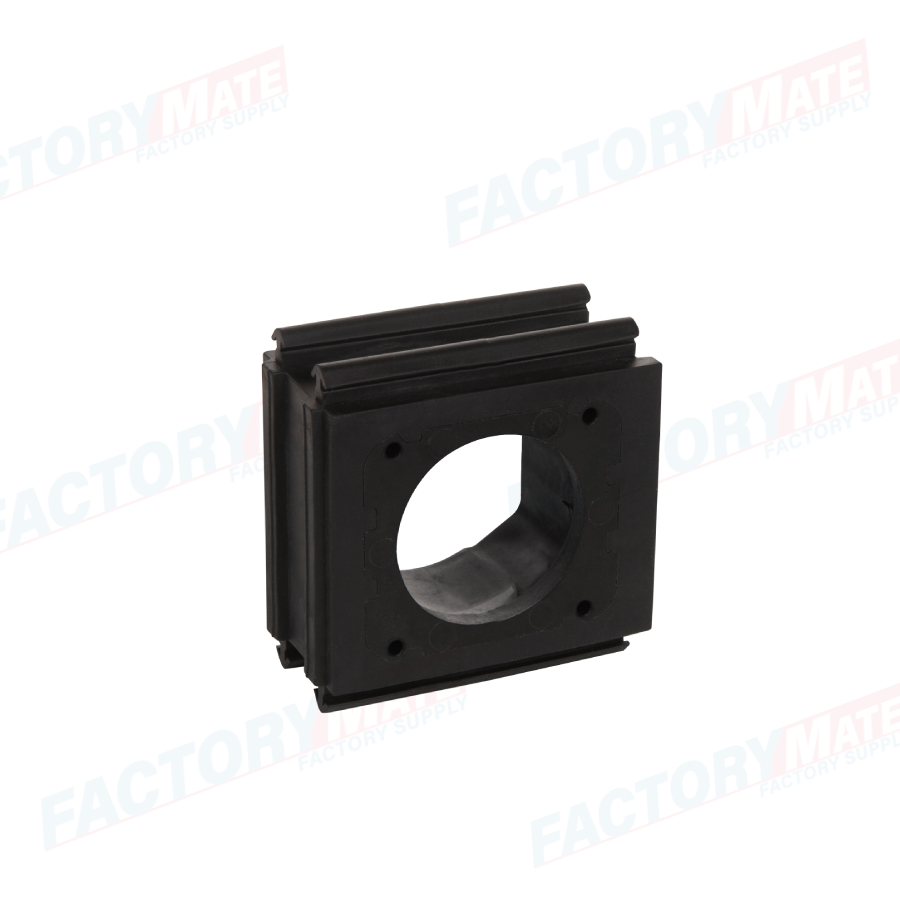

SPG W Large grommets for mounting drive connectors and service sockets

SPG W
Large grommets for mounting drive connectors and service sockets

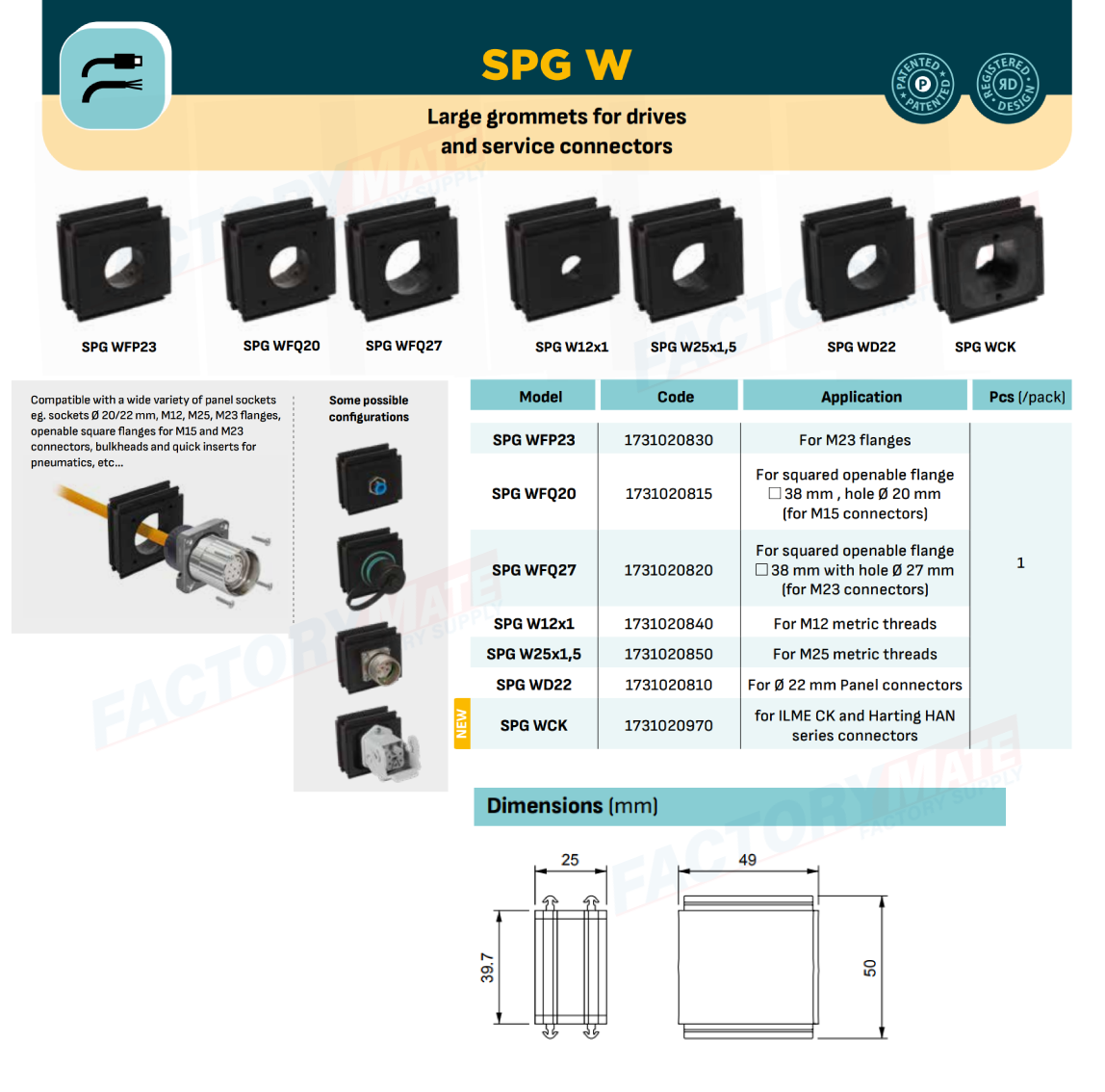

SPG W grommets allow the integration of panel sockets (Ø 20 and 22 mm sockets, M12, M25, M23 flanges, openable square flanges for M15 and M23 connectors, pass-through and quick inserts for pneumatics, etc.) directly on the DES frame.

The benefit is the system versatility that allows the quick connection and disconnection of cables (data, power, pneumatics, etc.) without the need to open the machine cabinet. This plug-in system simplifies the design of increasingly modular machines.

Features
- Grommet mounts for panel sockets with diameters 20 and 22 mm, M12, M25, M23 flanges, openable square flanges for M15 and M23 connectors, grommets and quick inserts for pneumatics, etc...
- Useful for quick connections without opening the electrical cabinet
- Special versions upon request
- halogen-free, silicone-free

Material: TPE, PP+GF insert
Flammability: self-extinguishing according to UL94-V0 (grey or black)
Temperature: -40°C... +110°C (static)



Compatible Grommets

SPP P	SPP F	SPP 2x	SPP M	SPP VENT	SPP 4x
SPG WP	SPP R	SPG P	SPG EMC	SPG W22	SPG Y
SPG W	SPG K	SPG	SPP	SPG M

Fastening of the grommet strip to the board or panel is done with screws or rivets. Upon request, we supply screws for fastening, again made of stainless steel but with a black geomet finish. Alternatively, you can use the "Snap" quick coupler for greater mounting flexibility.
