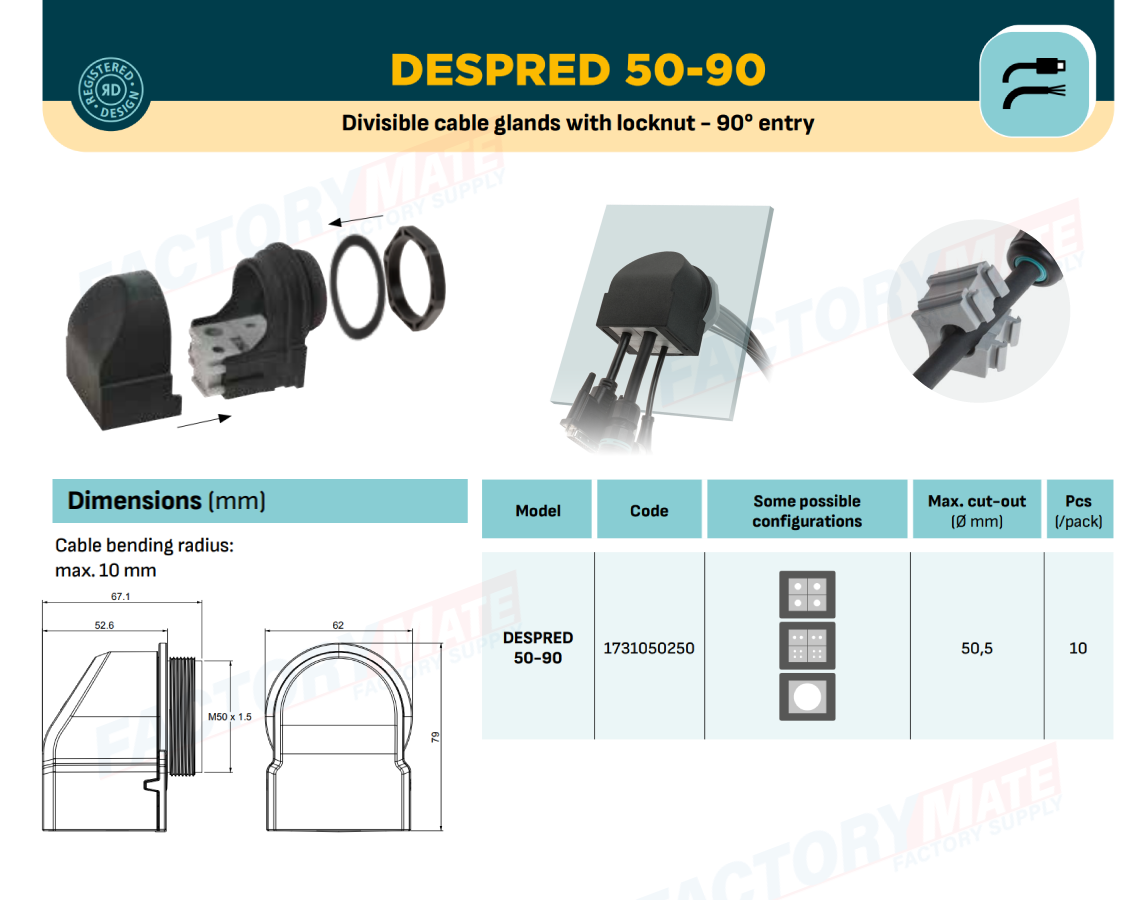

DESPRED 50-90 Divisible cable glands with 90° cable entry

DESPRED 50-90
Divisible cable glands with 90° cable entry
In control cabinets or on automatic machines it is frequently necessary to use pre-terminated cables or, more generally, cables with connectors for sensors or other devices from the machine itself to the I/O distribution systems. Sometime it is also needed to add more cables in the future. Divisible cable glands can be used for these needs. They can be installed in few minutes. The metric hole is drilled quickly with the economical DetasUltra punching machine, equipped with the entire series of punches. The choice of the most suitable grommet, single or multiple or pierceable makes the cable management smart, cost-effective and quick.

Features

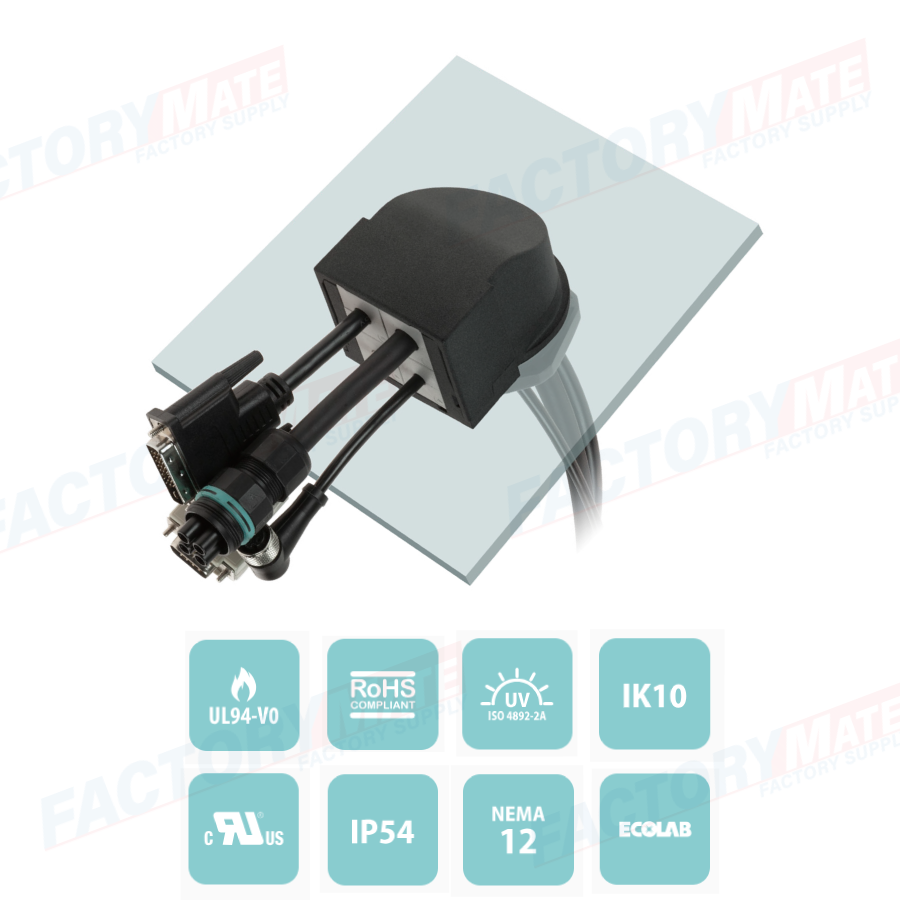

- 90° cable entry system
- "Click" fast mounting
- Strain relief according to EN 62444
- IP54 certified
- Robust construction IK10
- halogen-free, silicone-free,flame class V0 both colors, comply with ASTM IRM 903 , UL 157

Material: PA66
Flammability: self-extinguishing according to UL94-V0
Temperature: -40°C... +155°C (static)

Compatible Grommets

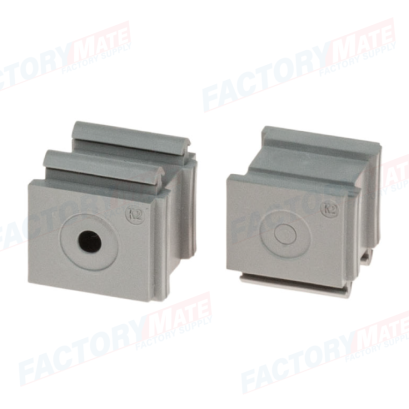

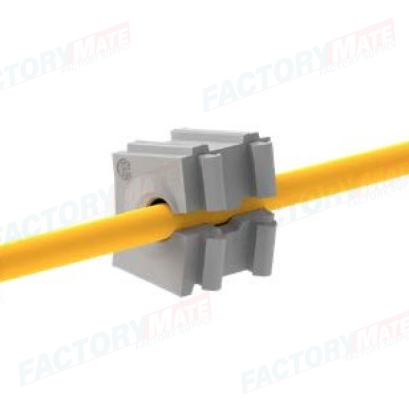

SPP	SPP 2x	SPP 4x	SPP F	SPP K	SPP M
SPP ASI	SPP VENT	SPG	SPG M	SPG K	SPG W
SPG Y

Fastening of the grommet strip to the board or panel is done with screws or rivets. Upon request, we supply screws for fastening, again made of stainless steel but with a black geomet finish. Alternatively, you can use the "Snap" quick coupler for greater mounting flexibility.
