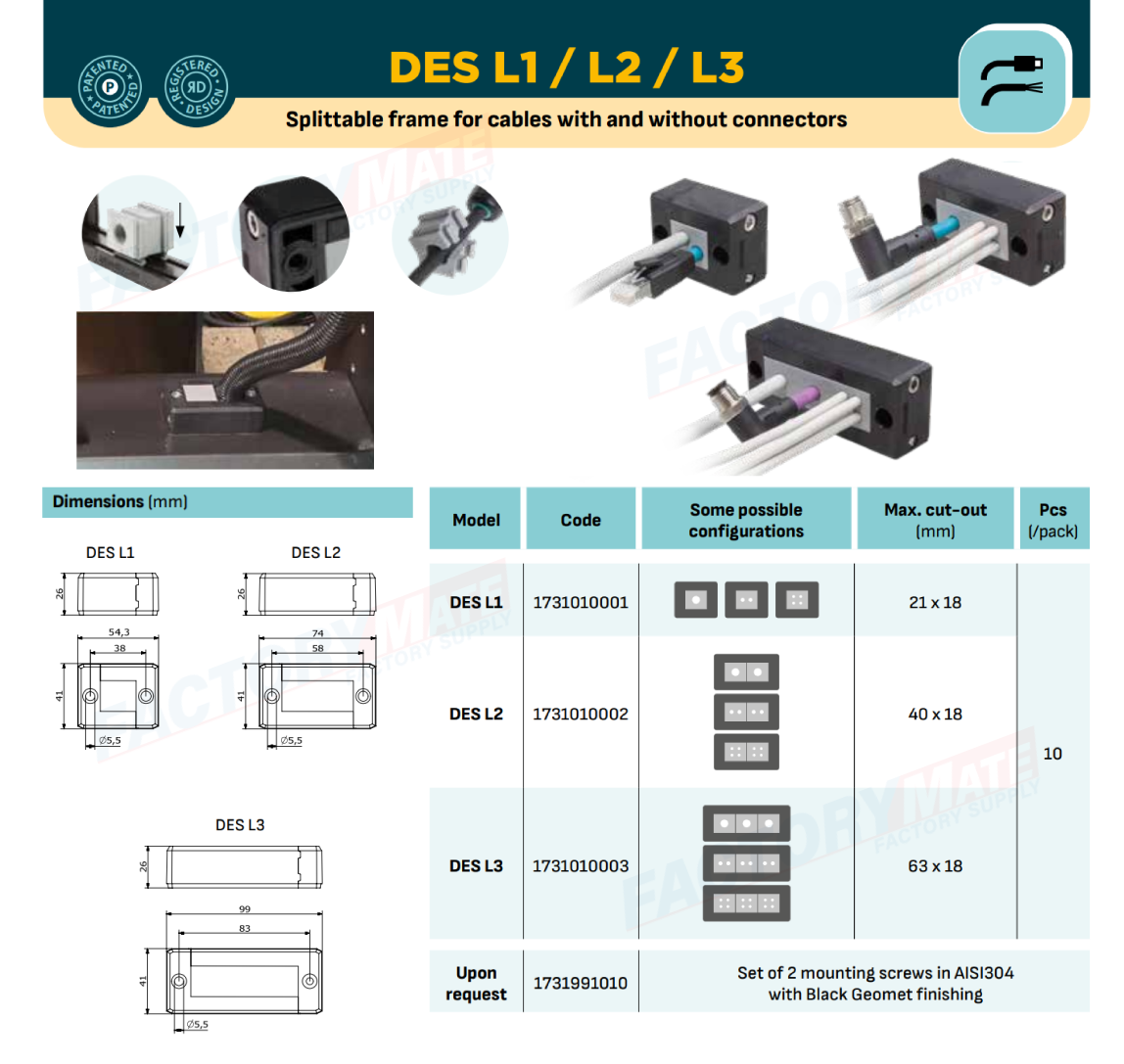

DES L1

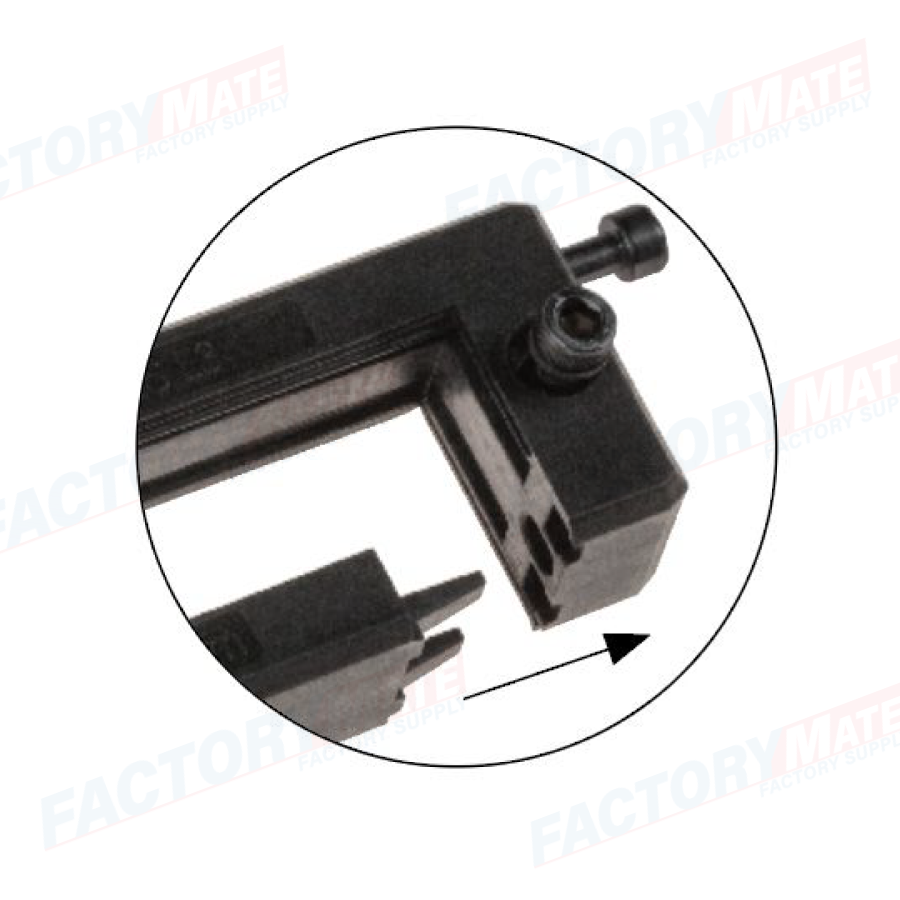

Divisible cable entry system frame for cables with and without connectors

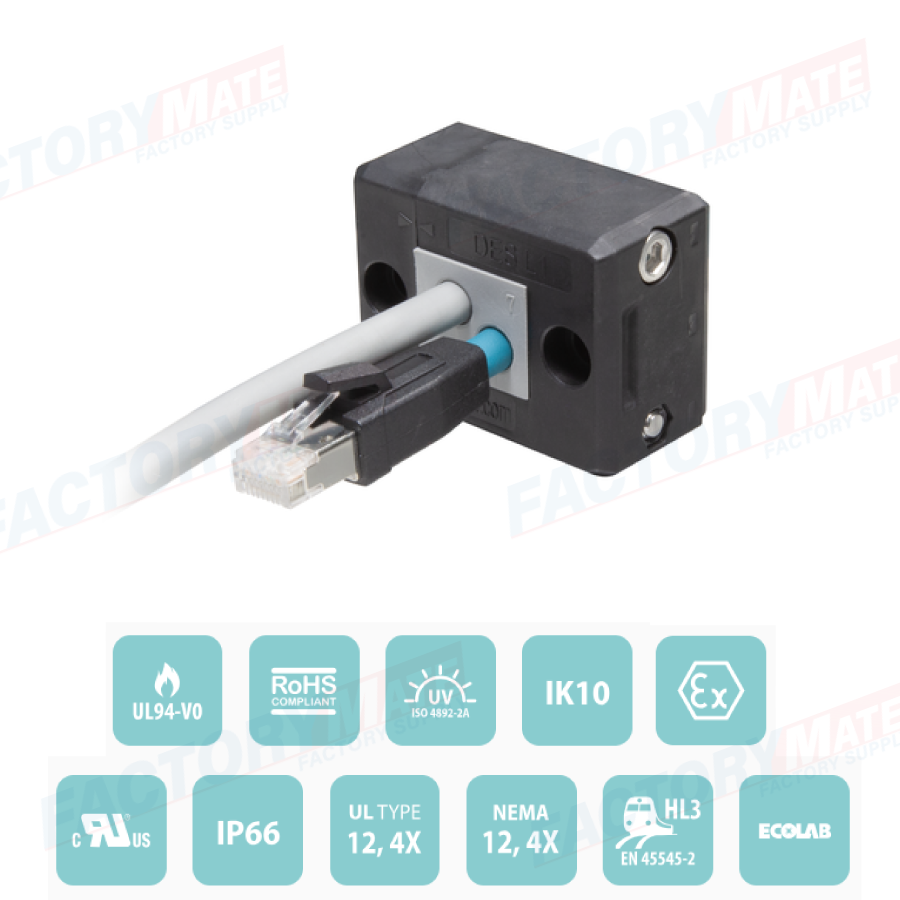

The DES L1 allows cables with connectors to pass through cabinets. Once assembled, the system guarantees the cable strain relief and high IP protection.

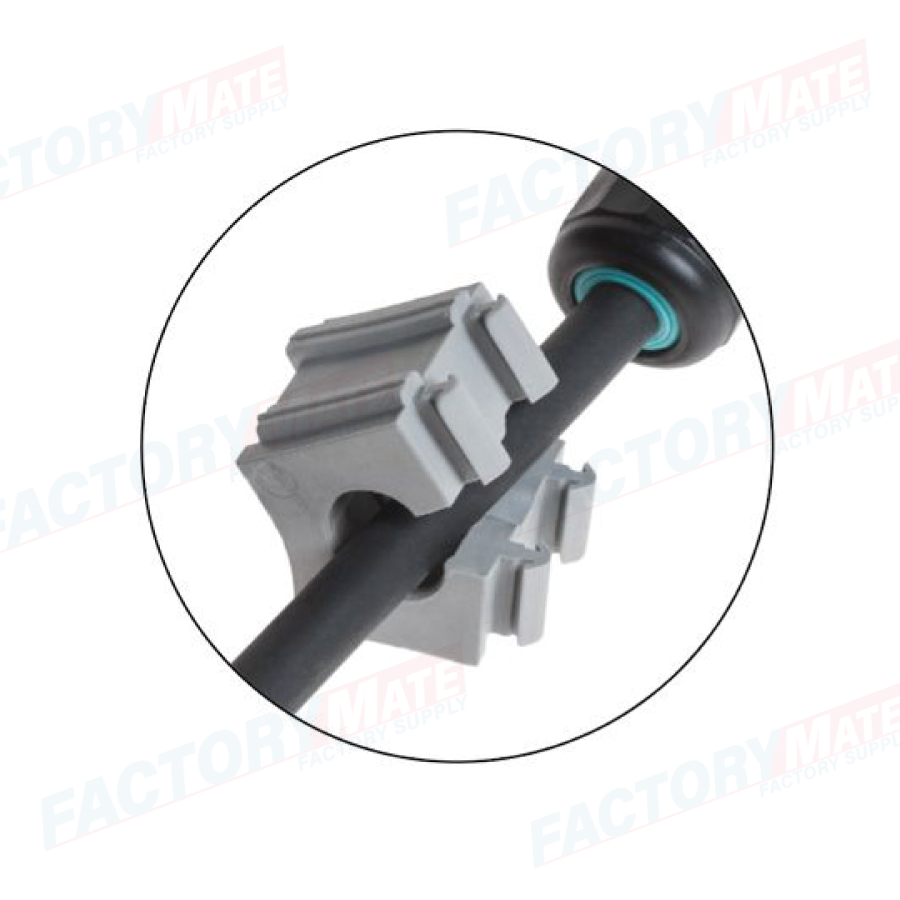

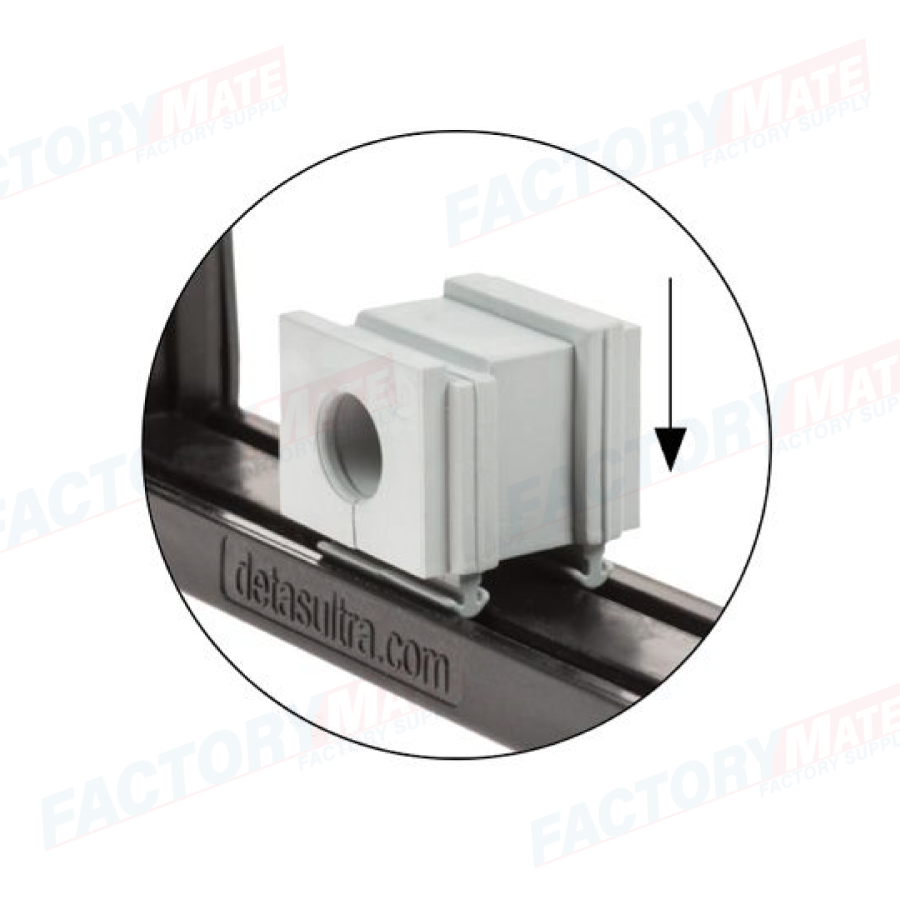

Openable grommets can be freely placed inside the frame. IP66 or NEMA4X degree of protection is achieved with any combination of grommets (single, double, quadruple, breakthrough).
The overmolded gasket and thus the complete V0 self-extinguishing capability of the system make the DES series a unique product.
Features
- For 1 small SPP grommet
- Frame screws in AISI304 Stainless Steel
- IP66 certified, Nema 4X* with any combination of grommets
- Strain relief according to EN 62444
- Robust construction IK10
- Overmolded gasket acc.to ULV94-V0
- ATEX version on request
- Threaded inserts version on request
- halogen-free, silicone-free,flame class V0 both colors, comply with ASTM IRM 903 , UL 157
Material: PP+GF
Flammability: self-extinguishing according to UL94-V0
Temperature: -40°C... +155°C (static)
Compatible Grommets
 SPP |  SPP 2x |  SPP 4x |  SPP F |  SPP R |  SPP M |
 SPP Z3 |  SPP VENT |  SPP P |
Fastening of the grommet strip to the board or panel is done with screws or rivets. Upon request, we supply screws for fastening, again made of stainless steel but with a black geomet finish. Alternatively, you can use the "Snap" quick coupler for greater mounting flexibility.
