Suitable for use with cables without connectors, Can be used in all DES series frames, halogen-free, silicone-free, flame class V0 both colors, comply with ASTM IRM 903, UL157, IP66, UL94-V0 for both colours.
หมวดหมู่ : ENTRY SYSTEM PRE-TERMINATED CABLES , Grommets ,
Share
SPP P

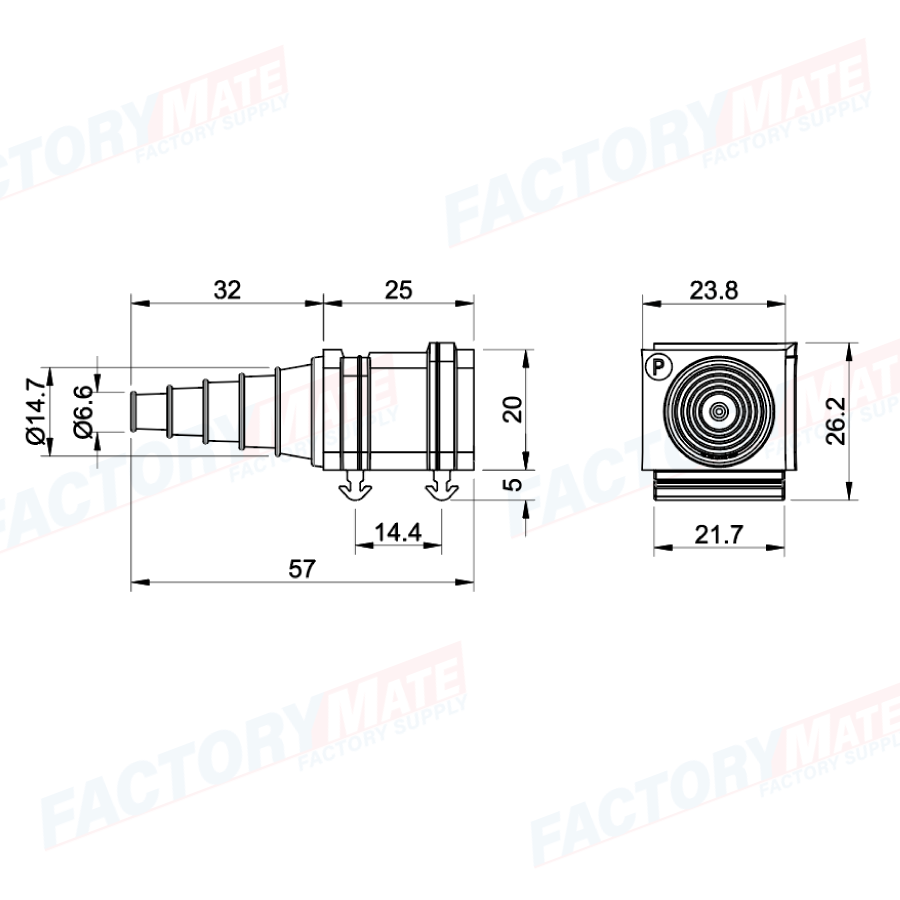

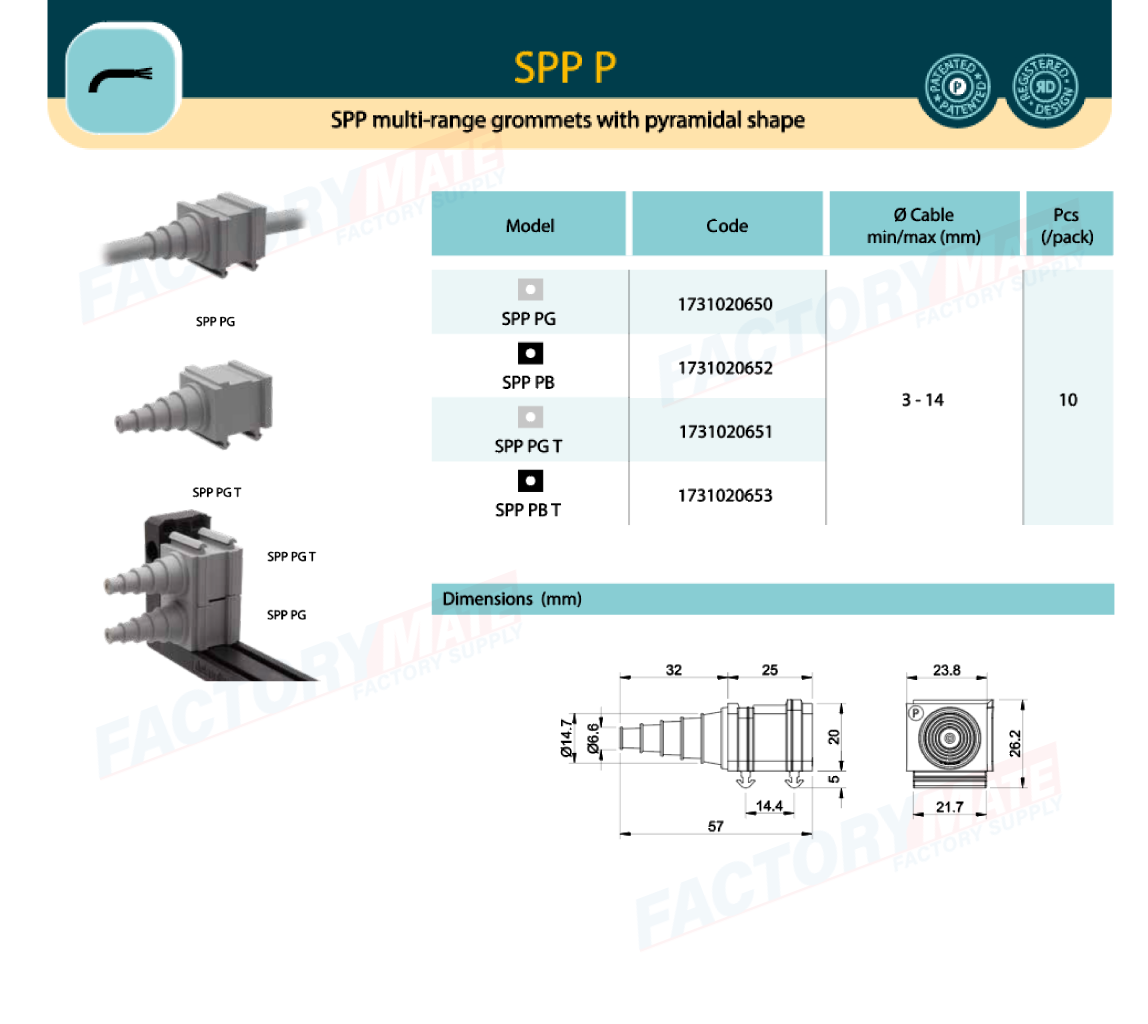

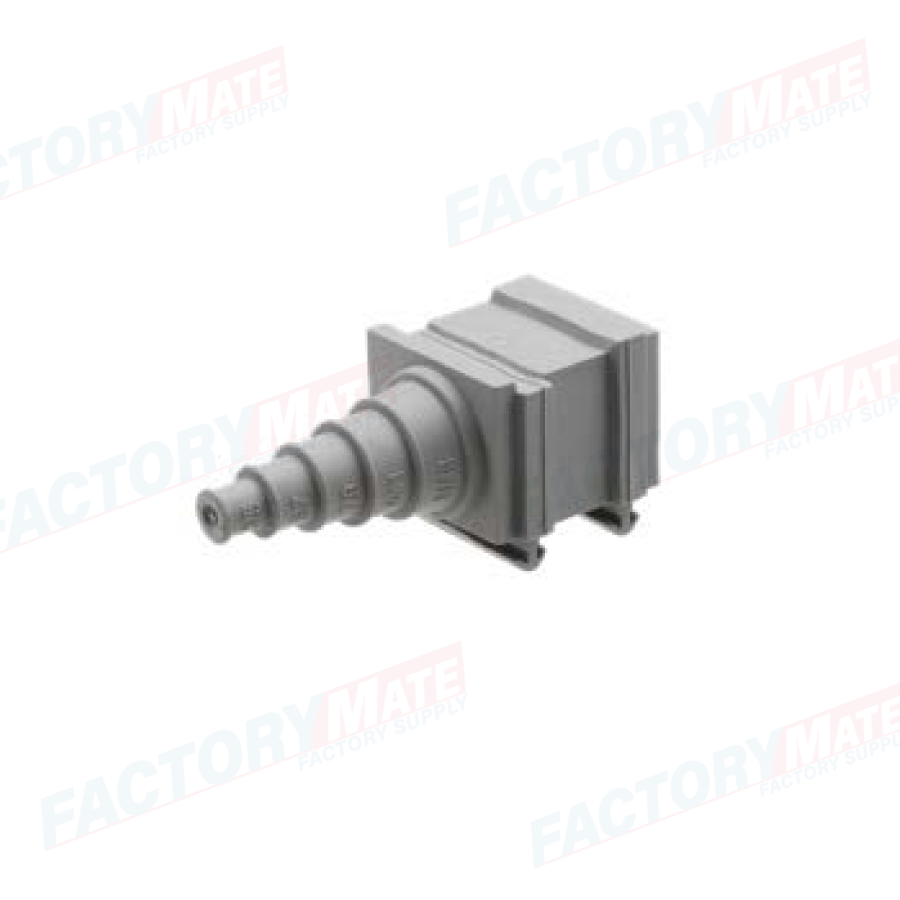

Small pyramidal grommets

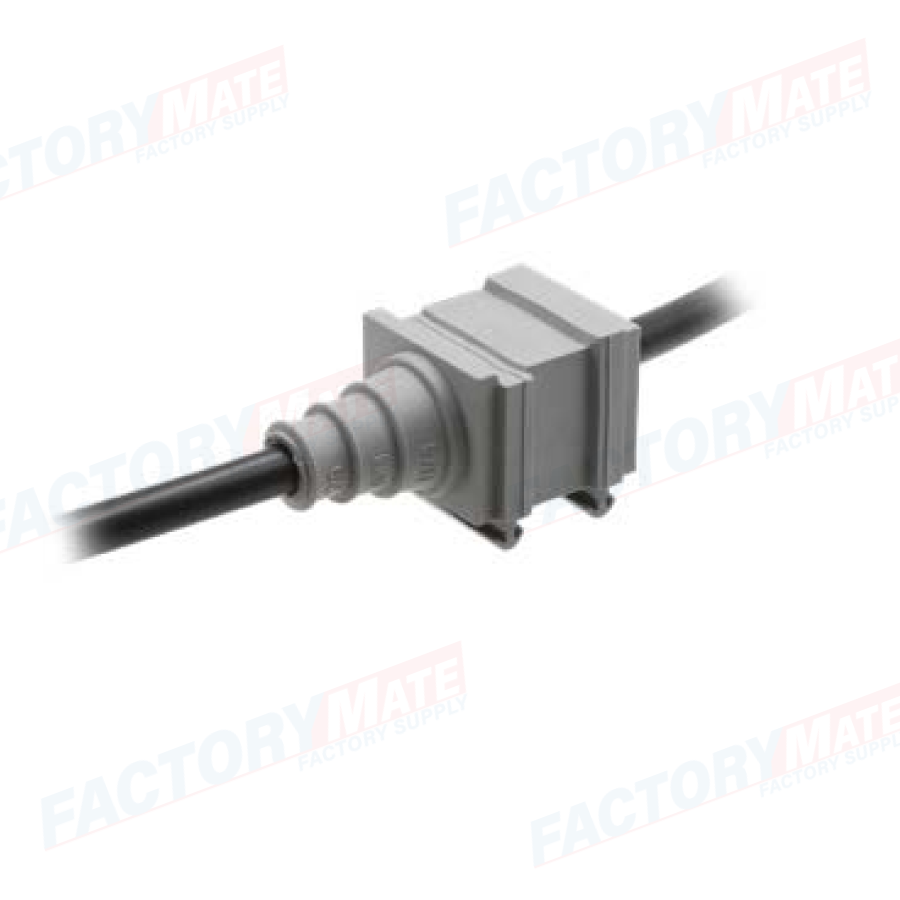

They are used by cutting the cone at the point corresponding to the range into which the cable diameter falls. It is also possible to secure the cable with a cable tie.
Features
- Universal solution for cables without connectors with diameter from 2 to 14 mm
- Can be used in all DES series frames.
- IP66
- UL94-V0 for both colours
- halogen-free, silicone-free,flame class V0 both colors, comply with ASTM IRM 903 , UL 157
Material: TPE
Flammability: self-extinguishing according to UL94-V0 (grey or black)
Temperature: -40°C... +110°C (static)
Compatible Grommets
 SPP P |  SPP F |  SPP 2x |  SPP M |  SPP VENT |  SPP 4x |
 SPG WP |  SPP R |  SPG P |  SPG EMC |  SPG W22 |  SPG Y |
 SPG W |  SPG K |  SPG |  SPP |  SPGM |
Fastening of the grommet strip to the board or panel is done with screws or rivets. Upon request, we supply screws for fastening, again made of stainless steel but with a black geomet finish. Alternatively, you can use the "Snap" quick coupler for greater mounting flexibility.
