SPG WP Large grommets for mounting drive connectors and service sockets

SPG WP
Large grommets for mounting drive connectors and service sockets

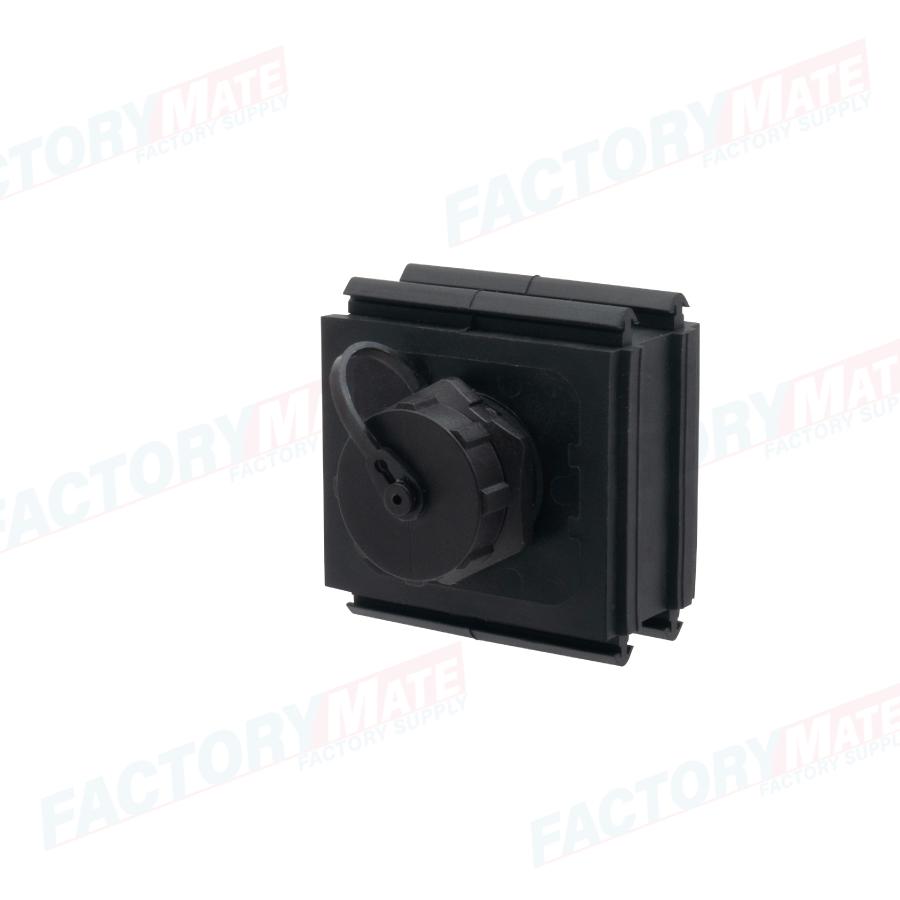

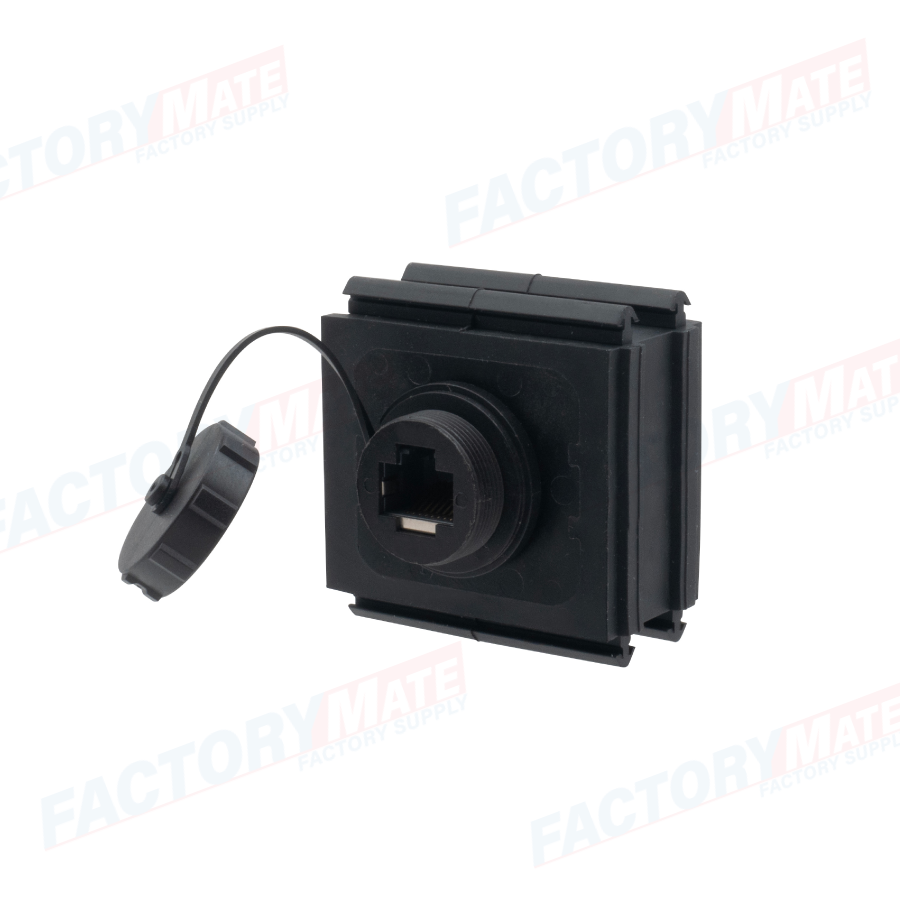

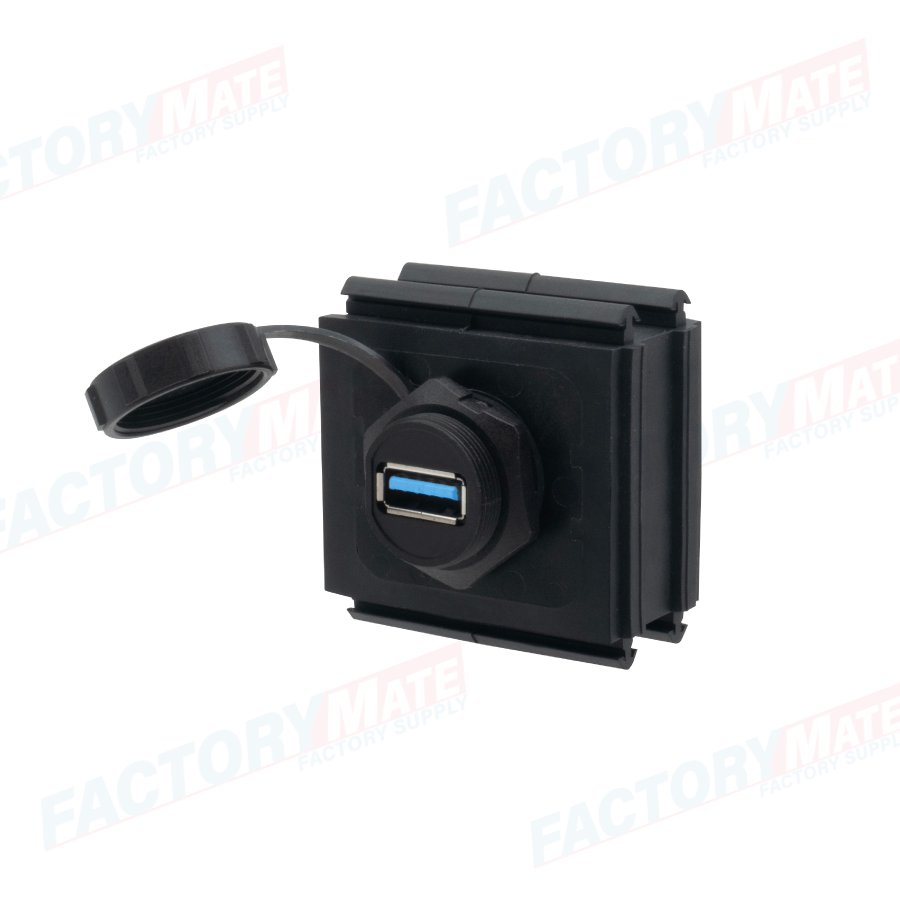

SPG WP grommets allow the integration of USB, RJ45 and HDMI panel sockets directly on the DES chassis.

The benefit is the system versatility that allows the quick connection and disconnection of cables (data, power, pneumatics, etc.) without the need to open the machine cabinet. This plug-in system simplifies the design of increasingly modular machines.

Features

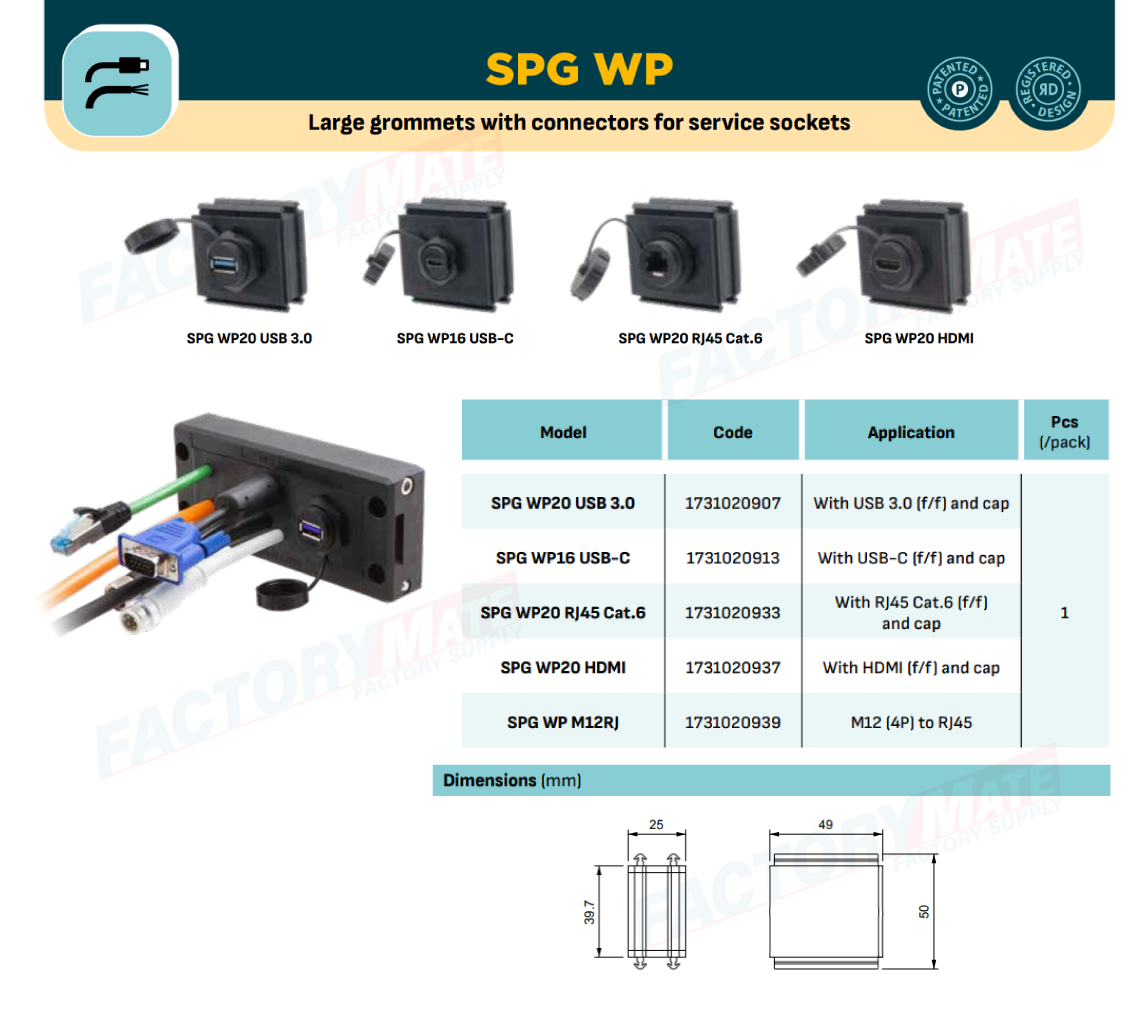

- Grommet holders with 27 and 20 mm diameter panel sockets, USB, RJ45, HDMI and USB-C
- 180° Female/Female System
- Useful for quick connections without opening the electrical cabinet
- Plastic panel sockets with screw-on end caps
- IP66 protection

Material: TPE, PP+GF insert
Flammability: self-extinguishing according to UL94-V0
Temperature: -40°C... +110°C (static)



Compatible Grommets

SPP P	SPP F	SPP 2x	SPP M	SPP VENT	SPP 4x
SPG WP	SPP R	SPG P	SPG EMC	SPG W22	SPG Y
SPG W	SPG K	SPG	SPP	SPG M

Fastening of the grommet strip to the board or panel is done with screws or rivets. Upon request, we supply screws for fastening, again made of stainless steel but with a black geomet finish. Alternatively, you can use the "Snap" quick coupler for greater mounting flexibility.
