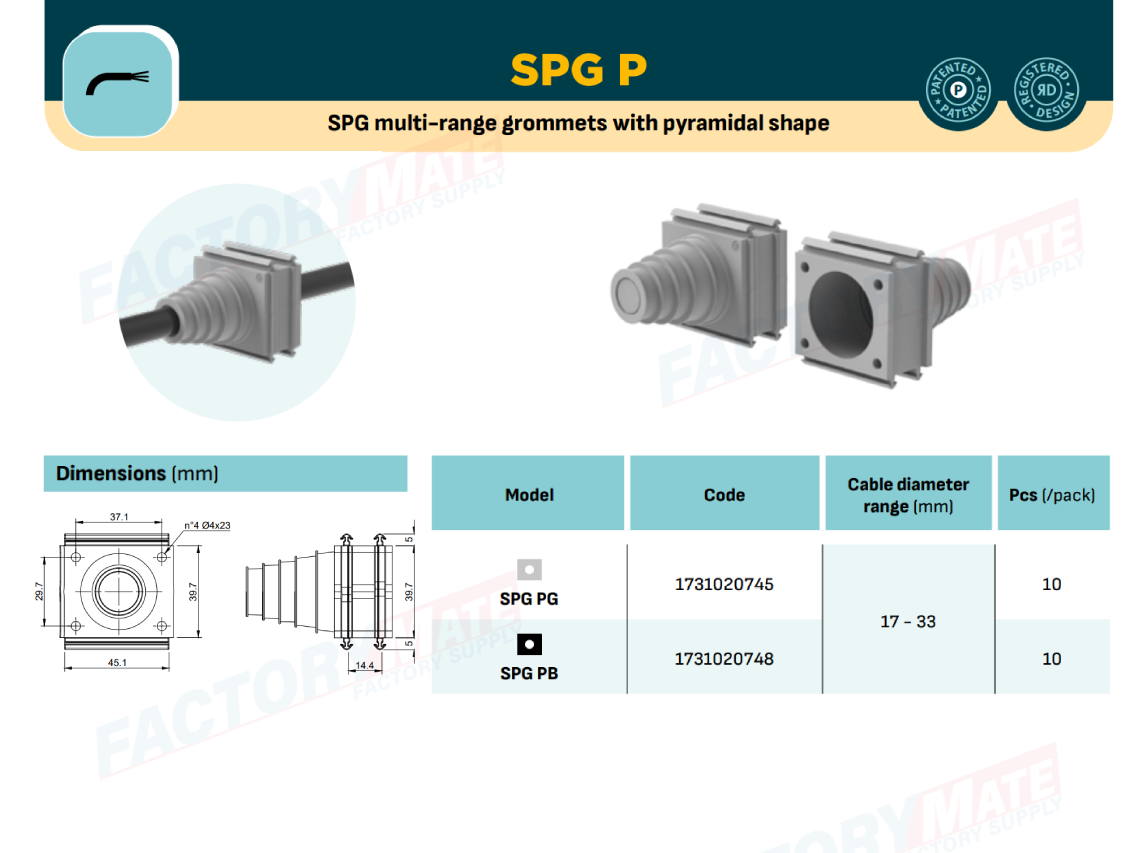

SPG P

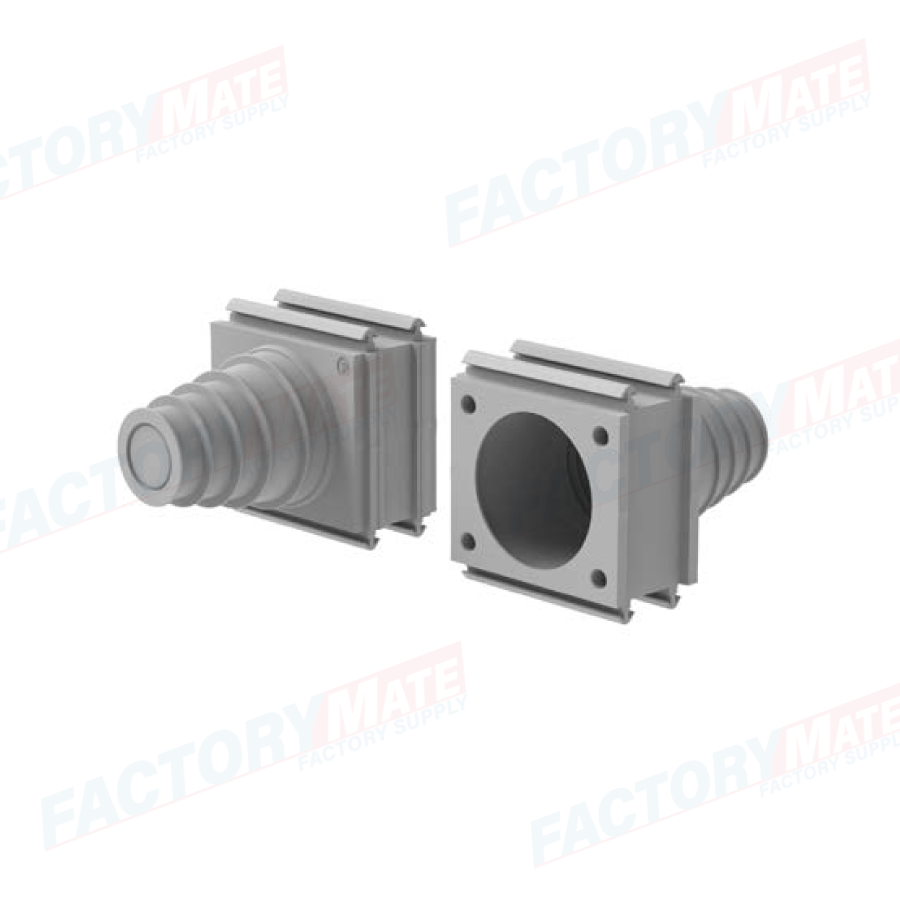

Large pyramid cable grommets

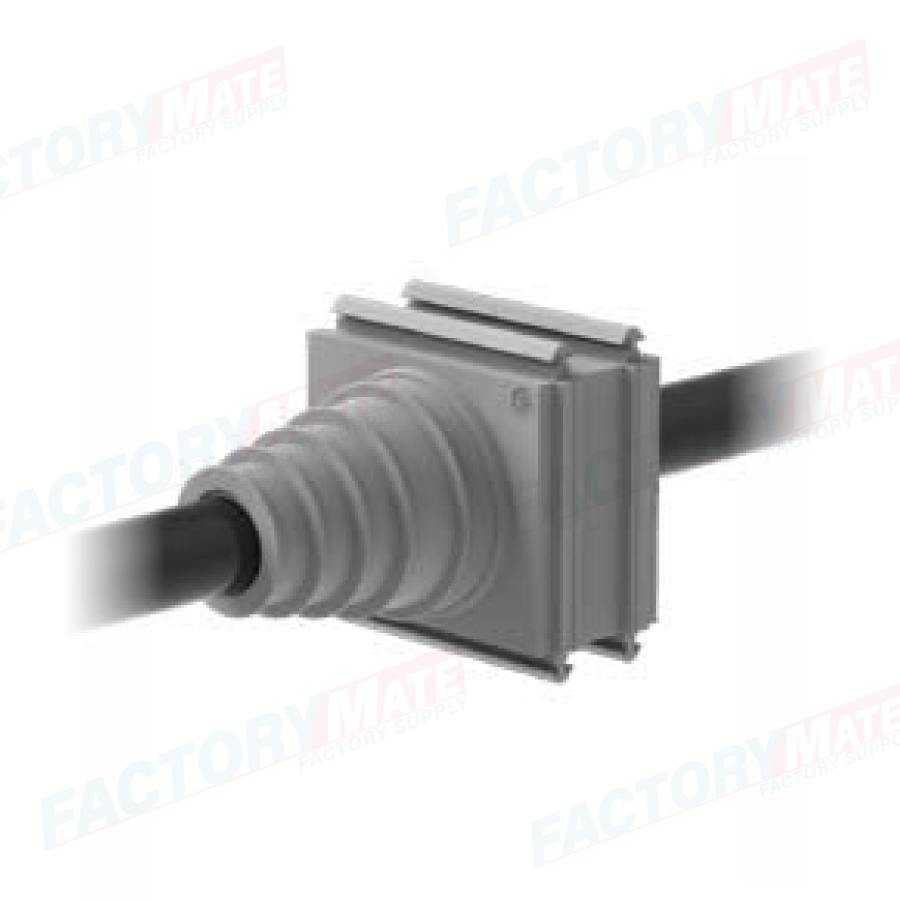

SPG P series grommets are suitable for use with cables without connectors.
They are used by cutting the cone at the point corresponding to the range into which the cable diameter falls. You can also secure the cable with a cable tie
Features
- Universal cable entry system solution
- Without connectors with diameters from 17 to 33 mm
- Can be used in all DES series frames.
- IP66
- UL94-V0 for both colours
- halogen-free, silicone-free,flame class V0 both colors, comply with ASTM IRM 903 , UL 157
Material: TPE
Flammability: self-extinguishing according to UL94-V0 (grey or black)
Temperature: -40°C... +110°C (static)
Compatible Grommets
 SPP P |  SPP F |  SPP 2x |  SPP M |  SPP VENT |  SPP 4x |
 SPG WP |  SPP R |  SPG P |  SPG EMC |  SPG W22 |  SPG Y |
 SPG W |  SPG K |  SPG |  SPP |  SPG M |

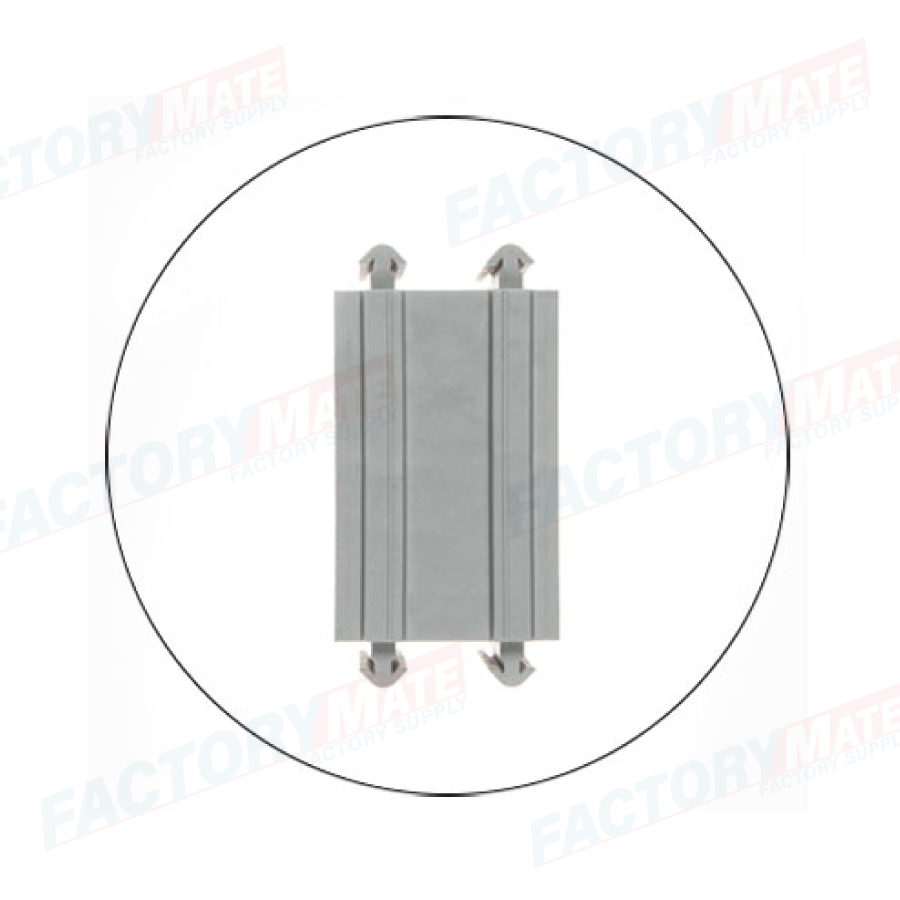

Fastening of the grommet strip to the board or panel is done with screws or rivets. Upon request, we supply screws for fastening, again made of stainless steel but with a black geomet finish. Alternatively, you can use the "Snap" quick coupler for greater mounting flexibility.
