SPG W22 Large grommets for mounting drive connectors and service sockets

SPG W22
Large grommets for mounting drive connectors and service sockets

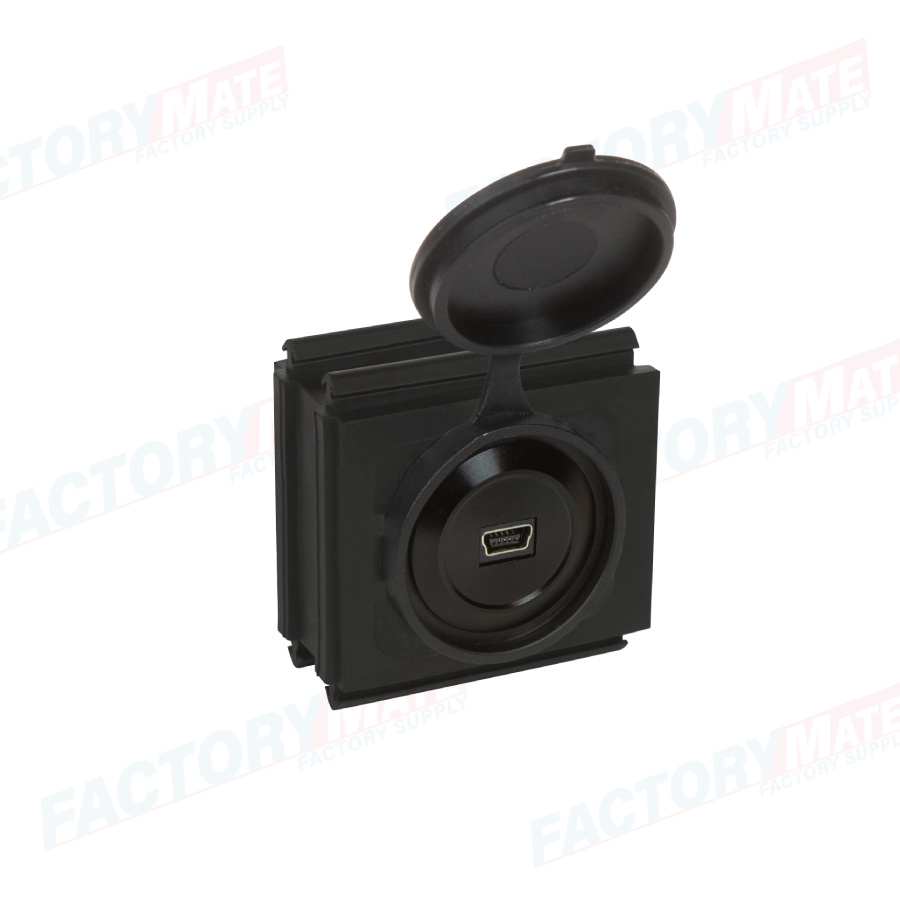

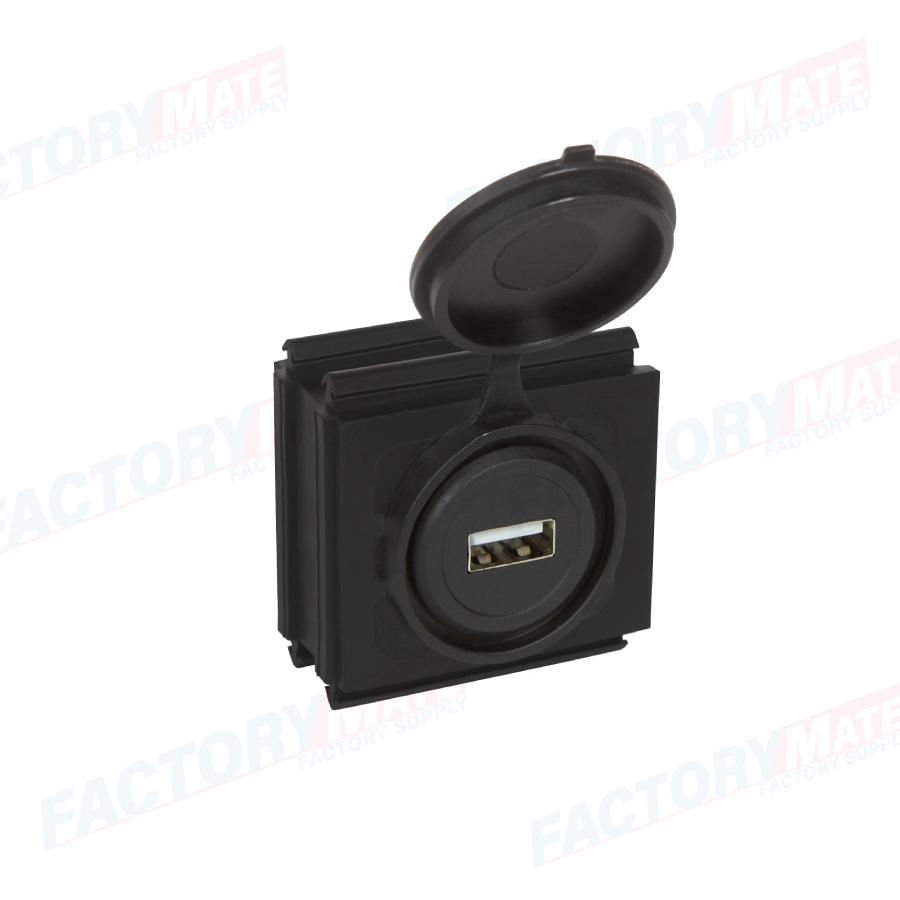

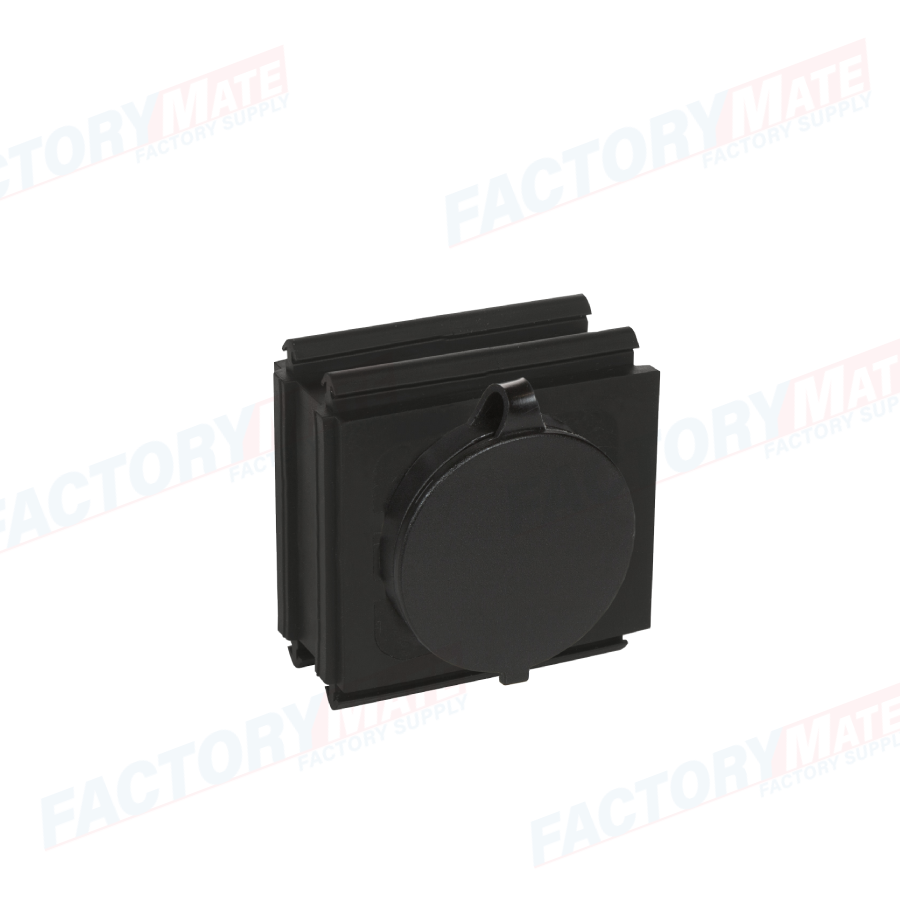

SPG W22 grommets allow the integration of panel sockets (USB, RJ45, etc...) directly onto the DES chassis.
The benefit is the system versatility that allows the quick connection and disconnection of cables (data, power, pneumatics, etc.) without the need to open the machine cabinet. This plug-in system simplifies the design of increasingly modular machines.

Features
- Cable grommets with panel sockets diameter 22 mm
- Female/Female or Female/Male 180° system
- Useful for quick connections without opening the electrical cabinet
- Metal or plastic panel sockets
- IP65 protection
- halogen-free, silicone-free

Material: TPE, PP+GF insert
Flammability: self-extinguishing according to UL94-V0
Temperature: -40°C... +110°C (static)



Compatible Grommets

SPP P	SPP F	SPP 2x	SPP M	SPP VENT	SPP 4x
SPG WP	SPP R	SPG P	SPG EMC	SPG W22	SPG Y
SPG W	SPG K	SPG	SPP	SPG M

Fastening of the grommet strip to the board or panel is done with screws or rivets. Upon request, we supply screws for fastening, again made of stainless steel but with a black geomet finish. Alternatively, you can use the "Snap" quick coupler for greater mounting flexibility.
