SPG EMC

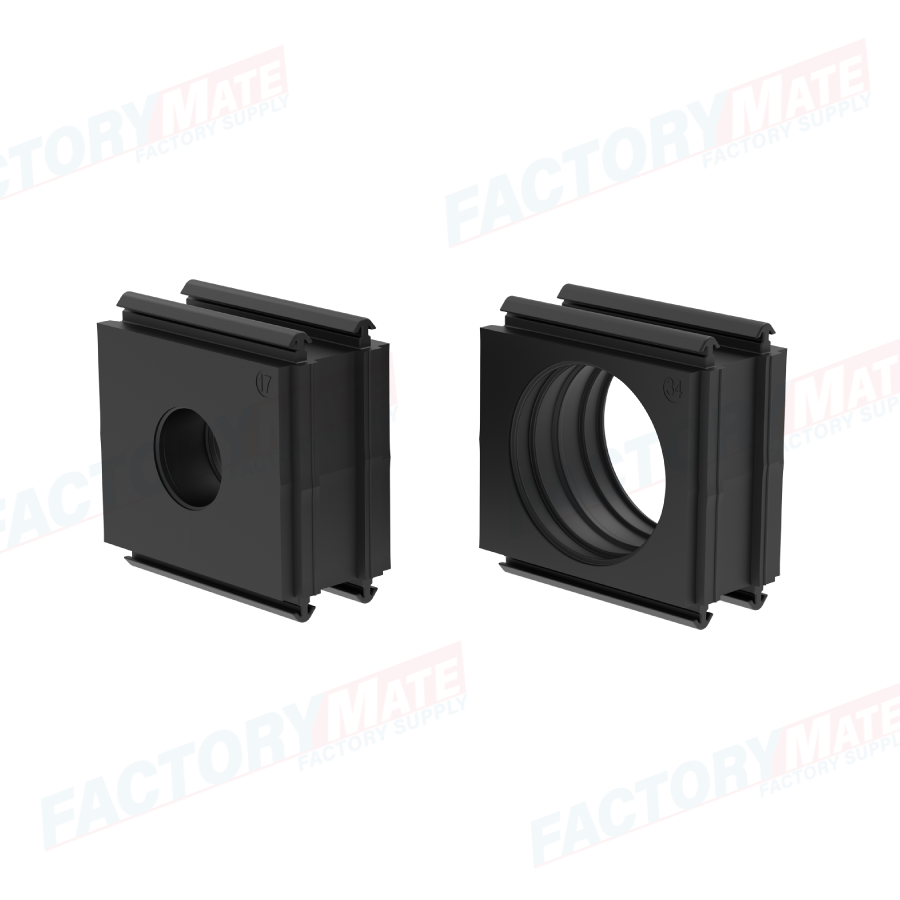

The SPG EMC series grommets allow a range of shielded cables with diameter from 17 to 35 mm o be routed through the DES EMC splitable frames series.
DetasUltra cable entry systems incorporate an advanced EMC feature designed to enhance electromagnetic compatibility in industrial cabling. Thanks to the use of conductive rubber and the direct contact between the cable shield and the grounding plane, these systems effectively help reduce high‑frequency interference and improve overall EMC performance.
Features
- Grommets for cables with diameters from 17 to 35 mm
- Single, multi-range, double or quadruple
- Long lasting product and high resistance to industrial oils.
- UL94-HB
- Black colo
- halogen-free, silicone-free
Material: TPE with added conductive material
Flammability: UL94-HB
Temperature: --40°C… +100°C (static)
Compatible Grommets
 SPP P |  SPP F |  SPP 2x |  SPP M |  SPP VENT |  SPP 4x |
 SPG WP |  SPP R |  SPG P |  SPG EMC |  SPG W22 |  SPG Y |
 SPG W |  SPG K |  SPG |  SPP |  SPG M |
Fastening of the grommet strip to the board or panel is done with screws or rivets. Upon request, we supply screws for fastening, again made of stainless steel but with a black geomet finish. Alternatively, you can use the "Snap" quick coupler for greater mounting flexibility.
